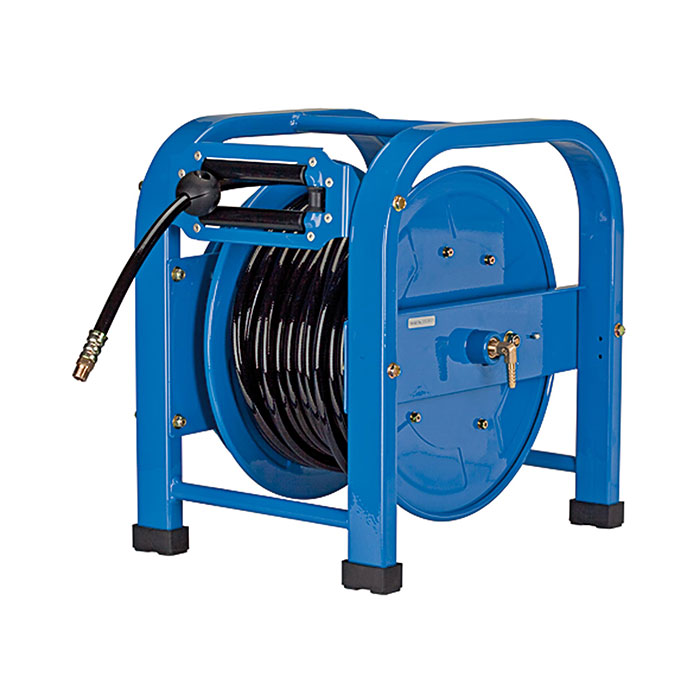

RIEGLER Hose reel, Mobile use, PU hose ø 12x8, G 3/8
Type number: 259/4050
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Hose reel for compressed air distribution, max. 10 bar - Type 259/4050
The RIEGLER hose reel, mobile use, PU hose ø 12x8, G 3/8, 50 m rolls up the compressed air hose automatically - for tidiness at the workplace. Designed for a maximum operating pressure of 10 bar. The operating temperature is between -10 °C and 40 °C. Hose Ø 8x12 mm, hose length 50 m. Automatic retraction for tidiness and quick readiness for use.
Field of application
Typical areas of application: Workshop, production and automotive operations.
| Connection thread | Coupling G 3/8 |
| Max. operating pressure | 10 bar |
| Thread input | Pants nozzle 8 mm |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 40 °C |
| Hose | Polyurethanes |
| Hose Ø | 8x12 mm |
| Hose length | 50 m |
| A | 452 mm |
| B | 400 mm |
| C | 460 mm |
| Class name | FLEX |
