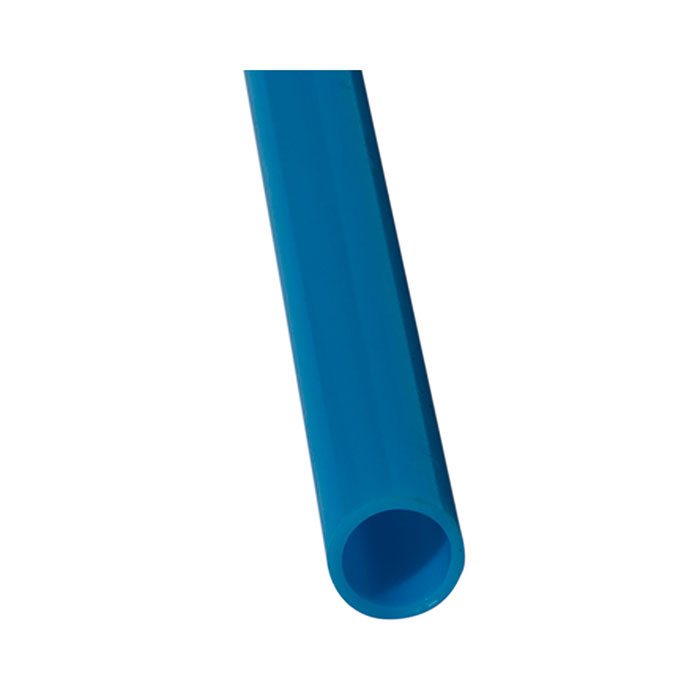

RIEGLER Plastic pipe, PA 12, blue, Pipe Ø 15x12, Length 3 m
Type number: 89.1512-B
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Plastic pipe made of PA 12, hard (to DIN 73378), for compressed air distribution, max. 25 bar - type 89.1512-B
The RIEGLER plastic pipe, PA 12, blue, pipe ø 15x12, PU 20 pcs. forms the fixed pipe network for compressed air distribution. The housing is made of PA 12, hard (to DIN 73378). The operating pressure range is -0.95 bar to 25 bar. The operating temperature is between -60 °C and 100 °C. Durable and low-leakage.
Field of application
Typical areas of application: Stationary compressed air distribution.
| Working pressure min. | -0.95 bar |
| Working pressure max. | 25 bar |
| Material | PA 12, hard (according to DIN 73378) |
| Operating temperature min. | -60 °C |
| Operating temperature max. | 100 °C |
| Pipe length | 3 m |
| Colour | blue |
| Tube outer Ø | 15 mm |
| Tube inside Ø | 12 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| PU | 20 pcs |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | PLUS |
