RIEGLER Plastic pipe, PA 12, blue, Hose Ø 12x9, Roller length 25 m
Type number: 94.12-25
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Plastic pipe made of PA 12, hard (to DIN 73378), for compressed air distribution, max. 19 bar - type 94.12-25
The RIEGLER plastic pipe, PA 12, blue, hose ø 12x9, 25 m forms the fixed line network for compressed air distribution. The housing is made of PA 12, hard (to DIN 73378). The operating pressure range is -0.95 bar to 19 bar. The operating temperature is between -60 °C and 100 °C. Hose Ø 9 mm (inside) / 12 mm (outside). Durable and low-leakage.
Field of application
Typical areas of application: Stationary compressed air distribution.
| Working pressure min. | -0.95 bar |
| Working pressure max. | 19 bar |
| Material | PA 12, hard (according to DIN 73378) |
| Operating temperature min. | -60 °C |
| Operating temperature max. | 100 °C |
| Outer hose Ø | 12 mm |
| Hose Ø inside | 9 mm |
| Roll length | 25 m |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[114011] RIEGLER Plastic pipe, PA 12, blue, Hose Ø 12x9, Roller length 100 m](/web/image/product.template/190250/image_128/%5B114011%5D%20RIEGLER%20Plastic%20pipe%2C%20PA%2012%2C%20blue%2C%20Hose%20%C3%98%2012x9%2C%20Roller%20length%20100%20m?unique=adad63c)
|
Type number: 94.12-100 |
219.47 € | |
![[114012] RIEGLER Plastic pipe PA 12, blue, Hose Ø 15x12, Roller length 100 m](/web/image/product.template/190252/image_128/%5B114012%5D%20RIEGLER%20Plastic%20pipe%20PA%2012%2C%20blue%2C%20Hose%20%C3%98%2015x12%2C%20Roller%20length%20100%20m?unique=e452257)
|
Type number: 94.15-100 |
293.32 € | |
![[114008] RIEGLER Plastic pipe, PA 12, blue, Hose Ø 15x12, Roller length 25 m](/web/image/product.template/190244/image_128/%5B114008%5D%20RIEGLER%20Plastic%20pipe%2C%20PA%2012%2C%20blue%2C%20Hose%20%C3%98%2015x12%2C%20Roller%20length%2025%20m?unique=186ac5a)
|
Type number: 94.15-25 |
74.77 € | |
![[114013] RIEGLER Plastic pipe PA 12, blue, Hose Ø 18x14, length 100 m](/web/image/product.template/190254/image_128/%5B114013%5D%20RIEGLER%20Plastic%20pipe%20PA%2012%2C%20blue%2C%20Hose%20%C3%98%2018x14%2C%20length%20100%20m?unique=f613b00)
|
Type number: 94.18-100 |
467.06 € | |

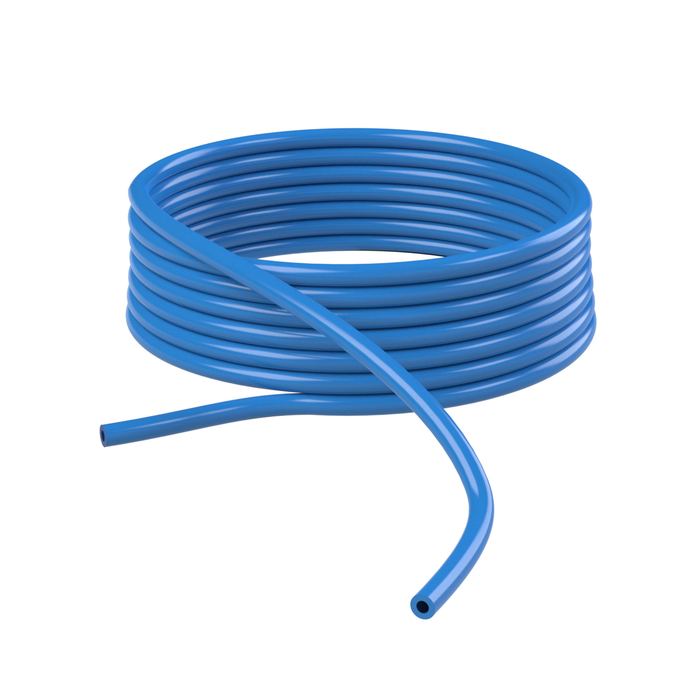

![[114009] RIEGLER Plastic pipe, PA 12, blue, Hose Ø 18x14, Roller length 25 m](/web/image/product.template/190246/image_128/%5B114009%5D%20RIEGLER%20Plastic%20pipe%2C%20PA%2012%2C%20blue%2C%20Hose%20%C3%98%2018x14%2C%20Roller%20length%2025%20m?unique=5c38ad8)
|
Type number: 94.18-25 |
118.49 € | |
![[114014] RIEGLER Plastic pipe PA 12, blue, Hose Ø 22x18, Roller length 100 m](/web/image/product.template/190256/image_128/%5B114014%5D%20RIEGLER%20Plastic%20pipe%20PA%2012%2C%20blue%2C%20Hose%20%C3%98%2022x18%2C%20Roller%20length%20100%20m?unique=58f868e)
|
Type number: 94.22-100 |
583.68 € | |

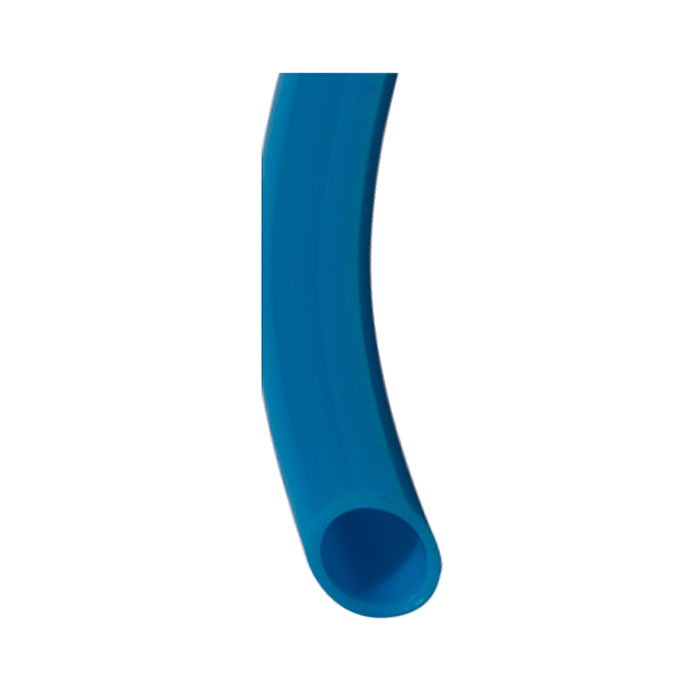

![[114010] RIEGLER Plastic pipe, PA 12, blue, Hose Ø 22x18, Roller length 25 m](/web/image/product.template/190248/image_128/%5B114010%5D%20RIEGLER%20Plastic%20pipe%2C%20PA%2012%2C%20blue%2C%20Hose%20%C3%98%2022x18%2C%20Roller%20length%2025%20m?unique=9159273)
|
