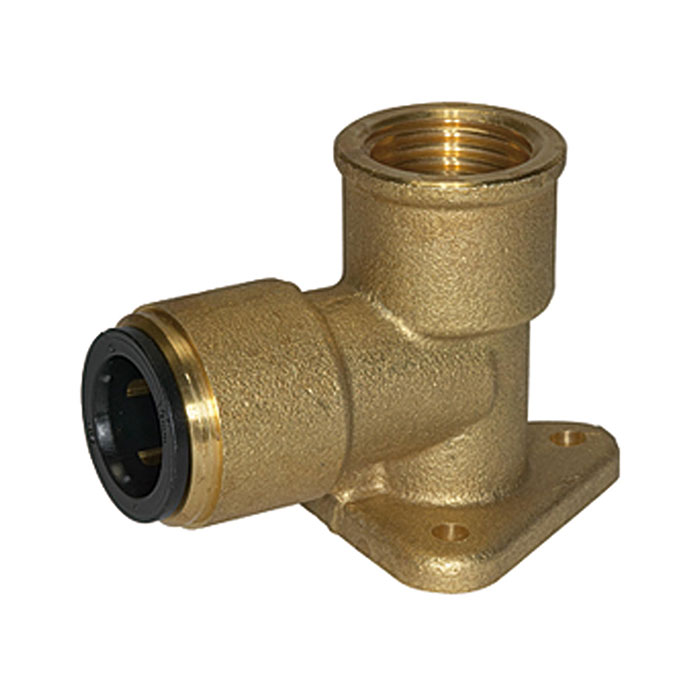

RIEGLER Wall bracket made of brass, G 3/4, for pipe exterior Ø 22 mm
Type number: 82.022
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Wall bracket made of brass, for compressed air distribution, max. 10 bar - Type 82.022
The RIEGLER wall bracket, brass, "speedfit" 3/4 BSP, for pipe outer ø 22 mm forms the fixed pipe network for compressed air distribution. The housing is made of brass. The operating pressure range is -0.95 bar to 10 bar. Connection thread G 3/4 - suitable for common industry standards. Durable and low-leakage.
Field of application
Typical areas of application: Stationary compressed air distribution.
| Working pressure min. | -0.95 bar |
| Working pressure max. | 10 bar |
| Material | Brass |
| Thread | G 3/4 |

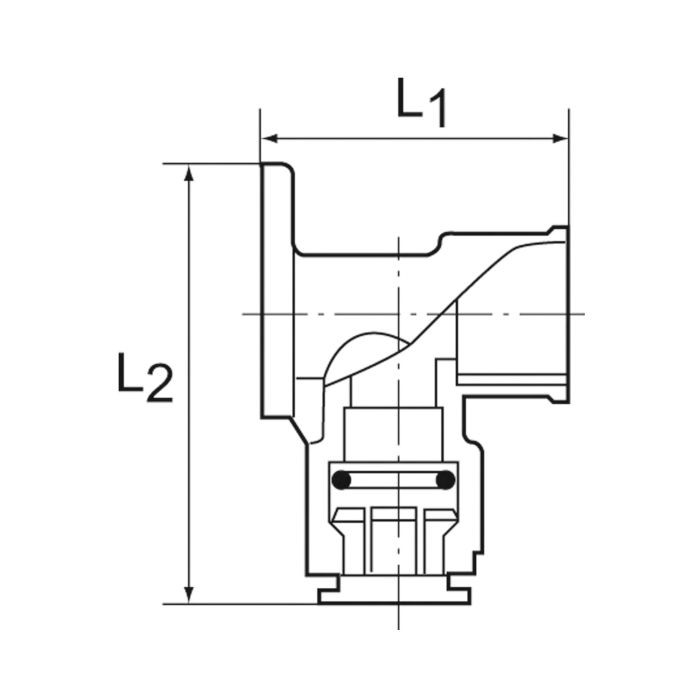

| L1 | 52 mm |
| L2 | 79 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| for pipe outer Ø | 22 mm |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | PLUS |
