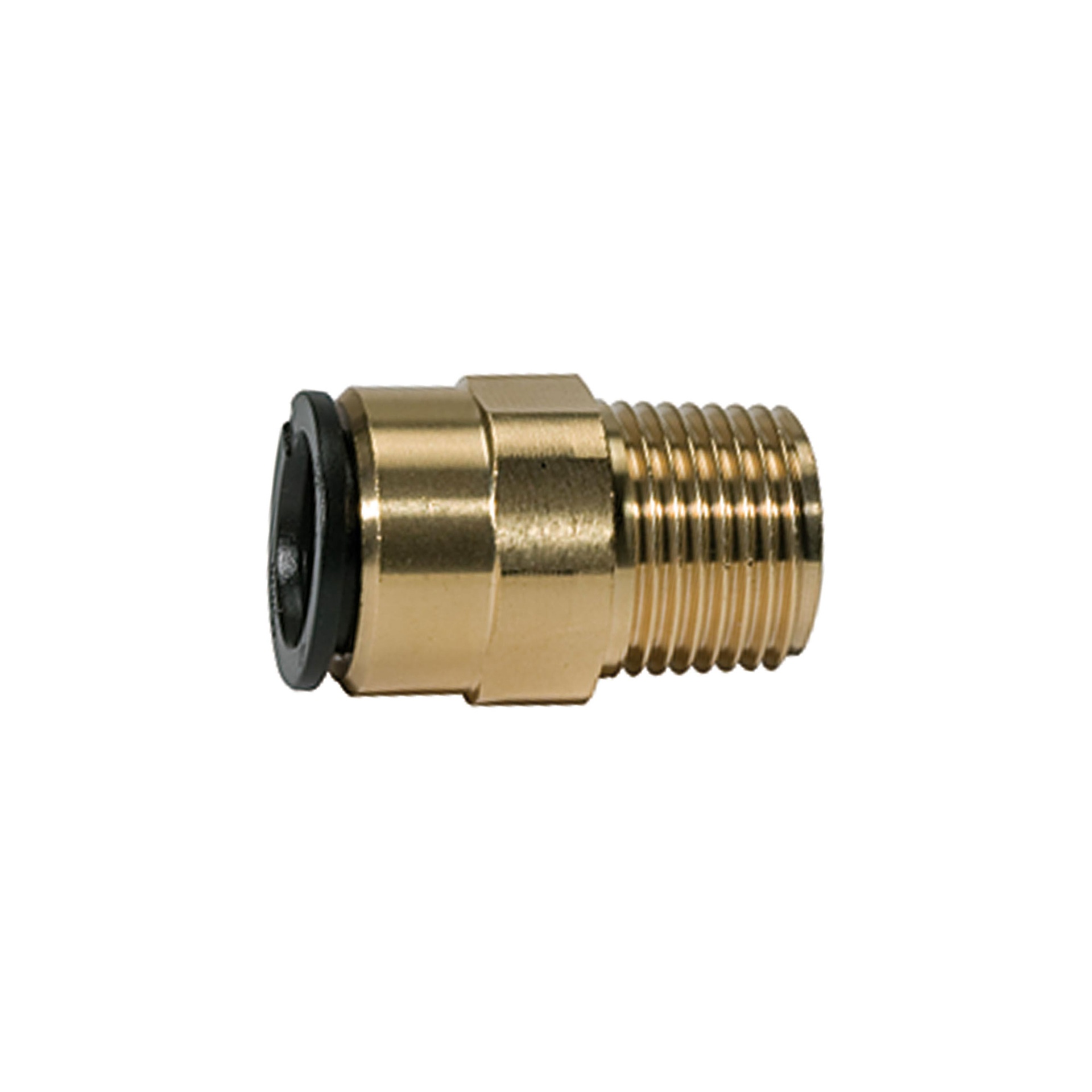

RIEGLER Screw-in connector, brass, R 1, for pipe exterior Ø 28 mm
Type number: 84.100-28
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Brass screw-in connector, for compressed air distribution, max. 10 bar - Type 84.100-28
The RIEGLER screw-in connector, MS, "speedfit" 1 BSPT, f. pipe outer ø 28 mm forms the fixed pipe network for compressed air distribution. The housing is made of brass. The operating pressure range is -0.95 bar to 10 bar. Connection thread R 1 - suitable for common industry standards. Durable and low-leakage.
Field of application
Typical areas of application: Stationary compressed air distribution.
| Working pressure min. | -0.95 bar |
| Working pressure max. | 10 bar |
| Material | Brass |
| Thread | R 1 |
| Length | 68.1 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| for pipe outer Ø | 28 mm |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | PLUS |
