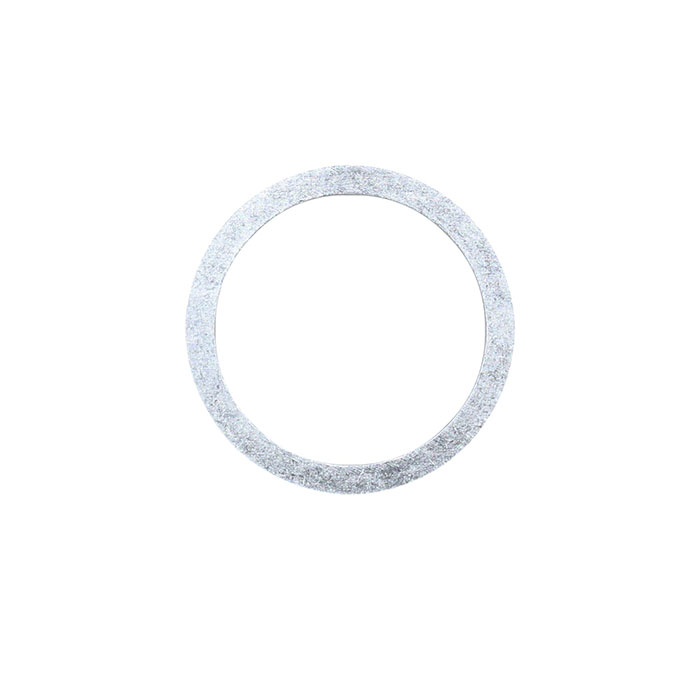

RIEGLER Sealing ring made of aluminium, for thread M5, PU 100 pcs.
Type number: 258.11
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Aluminum sealing ring for sealants & adhesives - Type 258.11
The RIEGLER sealing ring made of aluminum, for M5 thread, PU 100 pcs. seals threaded connections or fixes components permanently. The housing is made of aluminum. Reliable seal for leak-free connections.
Field of application
Typical areas of application: Thread sealing, flange sealing and component fixing.
| Temperature range max. | 250 °C |
| Material | Aluminum |
| for thread | M5 |
| D | 5.1 mm |
| H | 1 mm |
| D1 | 8 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | AW-1050A |
