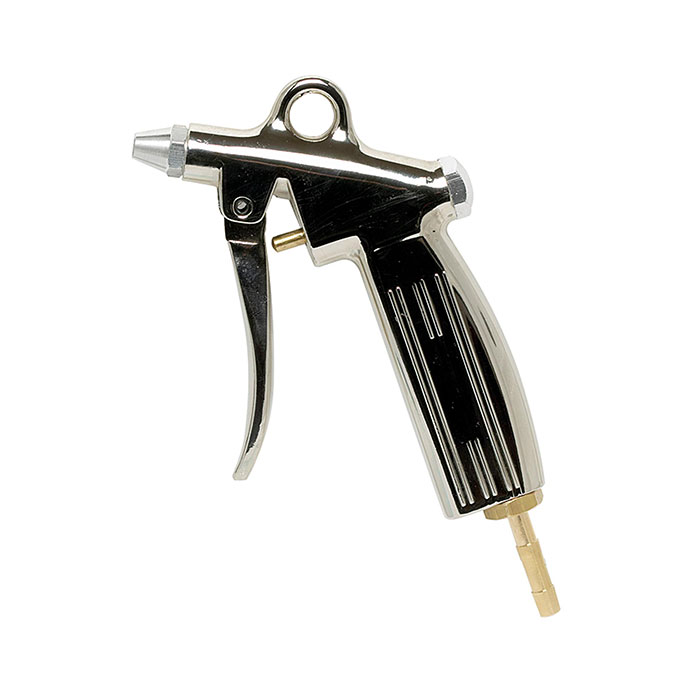

RIEGLER Air gun, Standard nozzle, Nipple for couplings I.D. 7.2 - 7.8
Type number: 22 K
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Blow gun made of nickel-plated die-cast aluminum, for compressed air cleaning, max. 6 bar - Type 22 K
The RIEGLER blow gun, standard nozzle, nickel-plated die-cast aluminum, nipple NW 7.2-7.8 is a powerful compressed air blow gun for the targeted cleaning of workpieces, machines and workplaces. The housing is made of nickel-plated die-cast aluminum. The operating pressure range is 2 bar to 6 bar. The temperature range is between -10 °C and 50 °C. Reduces cleaning time and keeps workstations clean.
Field of application
Typical areas of application: Workshop, production and industrial cleaning.
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Max. operating pressure | 10 bar |
| Working pressure min. | 2 bar |
| Working pressure max. | 6 bar |
| Material | Nickel-plated die-cast aluminum |
| Extension | M12x1.25 |
| Nozzle | M12x1.25 |
| Connection type | Connection nipple for couplings NW 7.2 - 7.8 |
| Nozzle type | Standard nozzle, bore 1.5 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

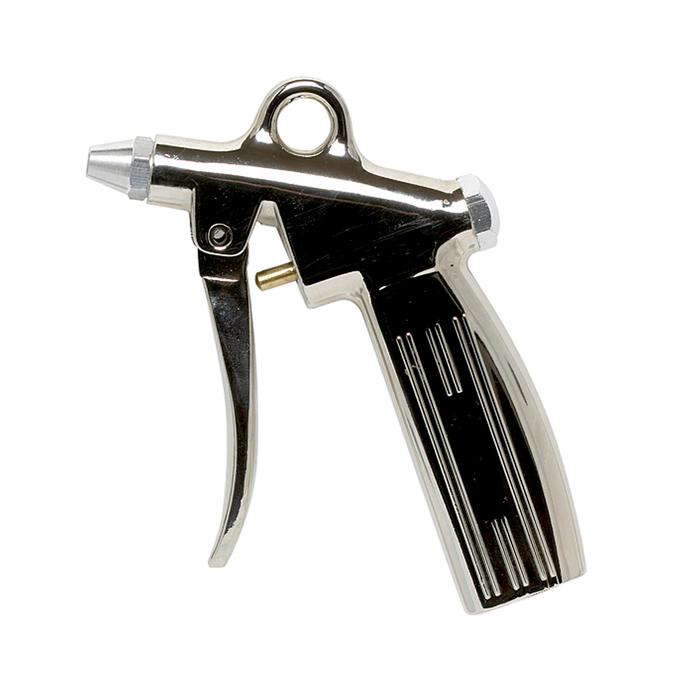

![[117445] RIEGLER Air gun, Standard nozzle, G 1/4 IT](/web/image/product.template/202349/image_128/%5B117445%5D%20RIEGLER%20Air%20gun%2C%20Standard%20nozzle%2C%20G%201-4%20IT?unique=3bcb6a6)
|
Type number: 22 K/TD |
11.42 € | |
![[114322] RIEGLER Air gun, Standard nozzle, Sleeve I.D. 13](/web/image/product.template/190816/image_128/%5B114322%5D%20RIEGLER%20Air%20gun%2C%20Standard%20nozzle%2C%20Sleeve%20I.D.%2013?unique=0b1b2d3)
|
Type number: 22 C |
12.01 € | |
![[114320] RIEGLER Air gun, Standard nozzle, Sleeve I.D. 6](/web/image/product.template/190813/image_128/%5B114320%5D%20RIEGLER%20Air%20gun%2C%20Standard%20nozzle%2C%20Sleeve%20I.D.%206?unique=840d922)
|
Type number: 22 A |
12.01 € | |

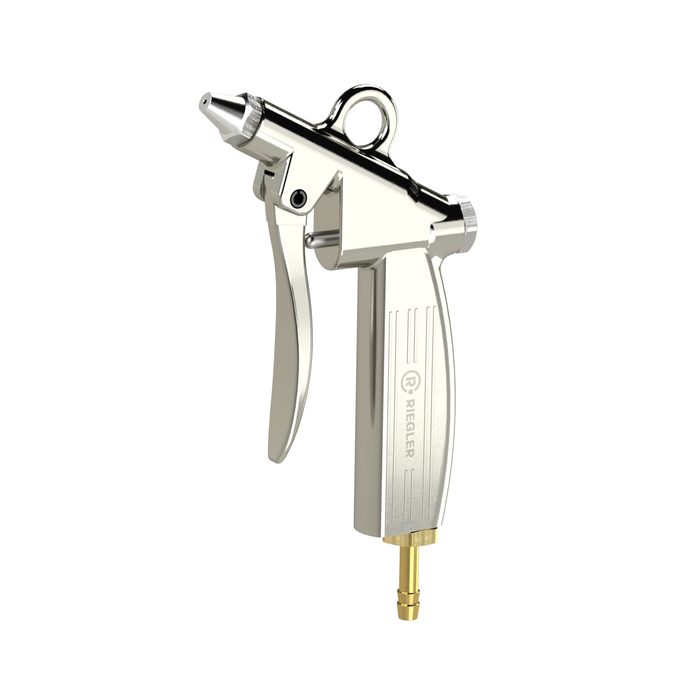

![[114321] RIEGLER Air gun, Standard nozzle, Sleeve I.D. 9](/web/image/product.template/190815/image_128/%5B114321%5D%20RIEGLER%20Air%20gun%2C%20Standard%20nozzle%2C%20Sleeve%20I.D.%209?unique=7cd545f)
|
Type number: 22 B |
12.01 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

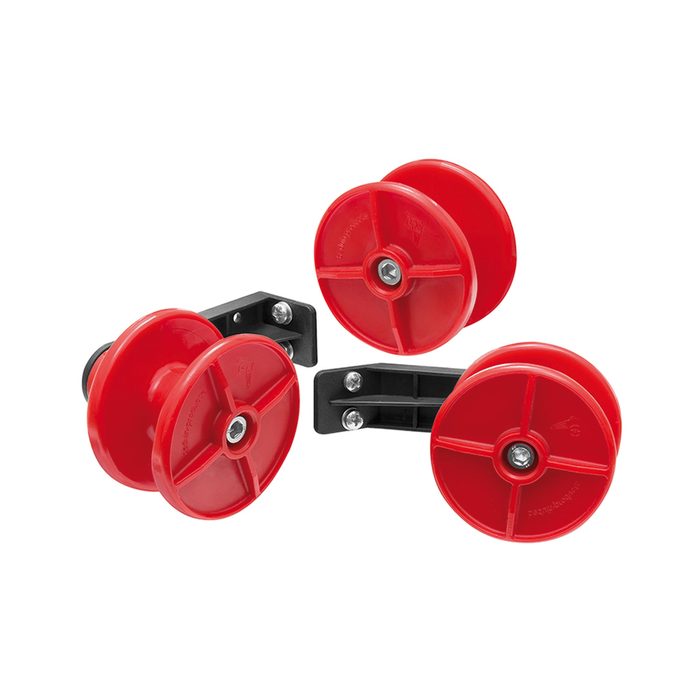

![[142249] RIEGLER Blow gun holder, incl. 2 brackets](/web/image/product.template/210704/image_128/%5B142249%5D%20RIEGLER%20Blow%20gun%20holder%2C%20incl.%202%20brackets?unique=9cd87f3)
|
Type number: BPH-1 |
10.42 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

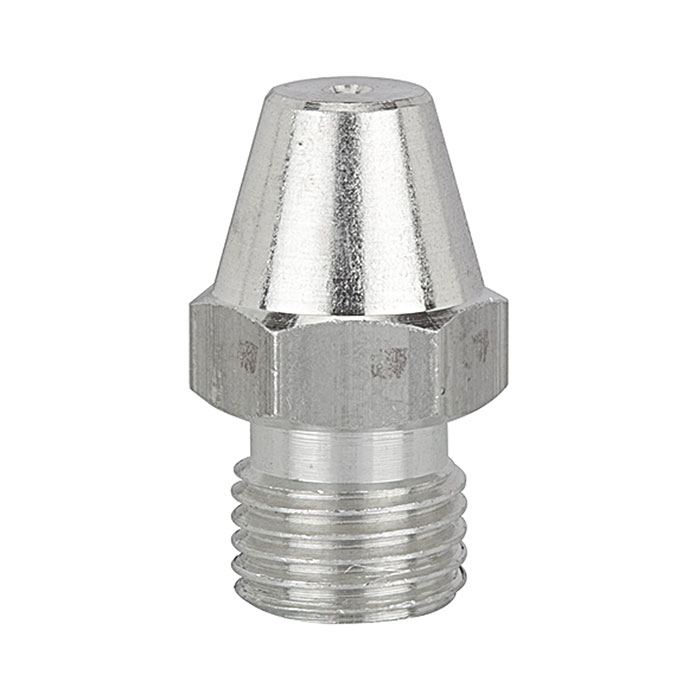

![[114344] RIEGLER Standard nozzle, Hole Ø 1.5 mm, Connection M12x1,25](/web/image/product.template/190857/image_128/%5B114344%5D%20RIEGLER%20Standard%20nozzle%2C%20Hole%20%C3%98%201.5%20mm%2C%20Connection%20M12x1%2C25?unique=dfdad47)
|
Type number: 105/5 |
1.43 € | |
