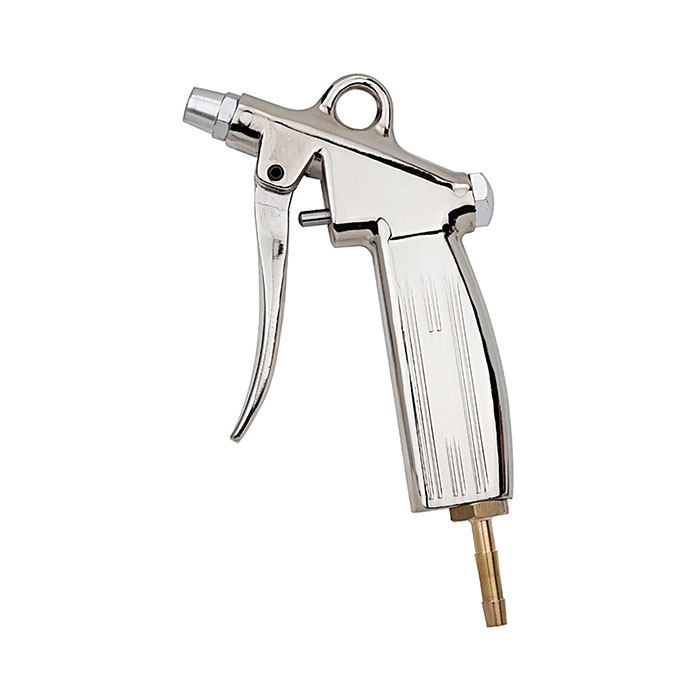

RIEGLER Air gun, silencing nozzle, Sleeve I.D. 13
Type number: 22 C/D
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Blow gun made of nickel-plated die-cast aluminum, for compressed air cleaning, max. 6 bar - Type 22 C/D
The RIEGLER blow gun, damper nozzle, nickel-plated die-cast aluminum, nozzle LW 13 is a powerful compressed air blow gun for the targeted cleaning of workpieces, machines and workplaces. The housing is made of nickel-plated die-cast aluminum. The operating pressure range is 2 bar to 6 bar. The temperature range is between -10 °C and 50 °C. Reduces cleaning time and keeps workstations clean.
Field of application
Typical areas of application: Workshop, production and industrial cleaning.
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Max. operating pressure | 10 bar |
| Working pressure min. | 2 bar |
| Working pressure max. | 6 bar |
| Material | Nickel-plated die-cast aluminum |
| Extension | M12x1.25 |
| Nozzle | M12x1.25 |
| Connection type | Grommet LW 13 |
| Nozzle type | Damper nozzle |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[137734] RIEGLER Air gun, silencing nozzle, G 1/4 IT](/web/image/product.template/207893/image_128/%5B137734%5D%20RIEGLER%20Air%20gun%2C%20silencing%20nozzle%2C%20G%201-4%20IT?unique=36866ed)
|
Type number: 22 V/D |
14.14 € | |
![[114327] RIEGLER Air gun, silencing nozzle, Nipple for couplings I.D. 7.2 - 7.8](/web/image/product.template/190826/image_128/%5B114327%5D%20RIEGLER%20Air%20gun%2C%20silencing%20nozzle%2C%20Nipple%20for%20couplings%20I.D.%207.2%20-%207.8?unique=de4321d)
|
Type number: 22 K/D |
14.86 € | |

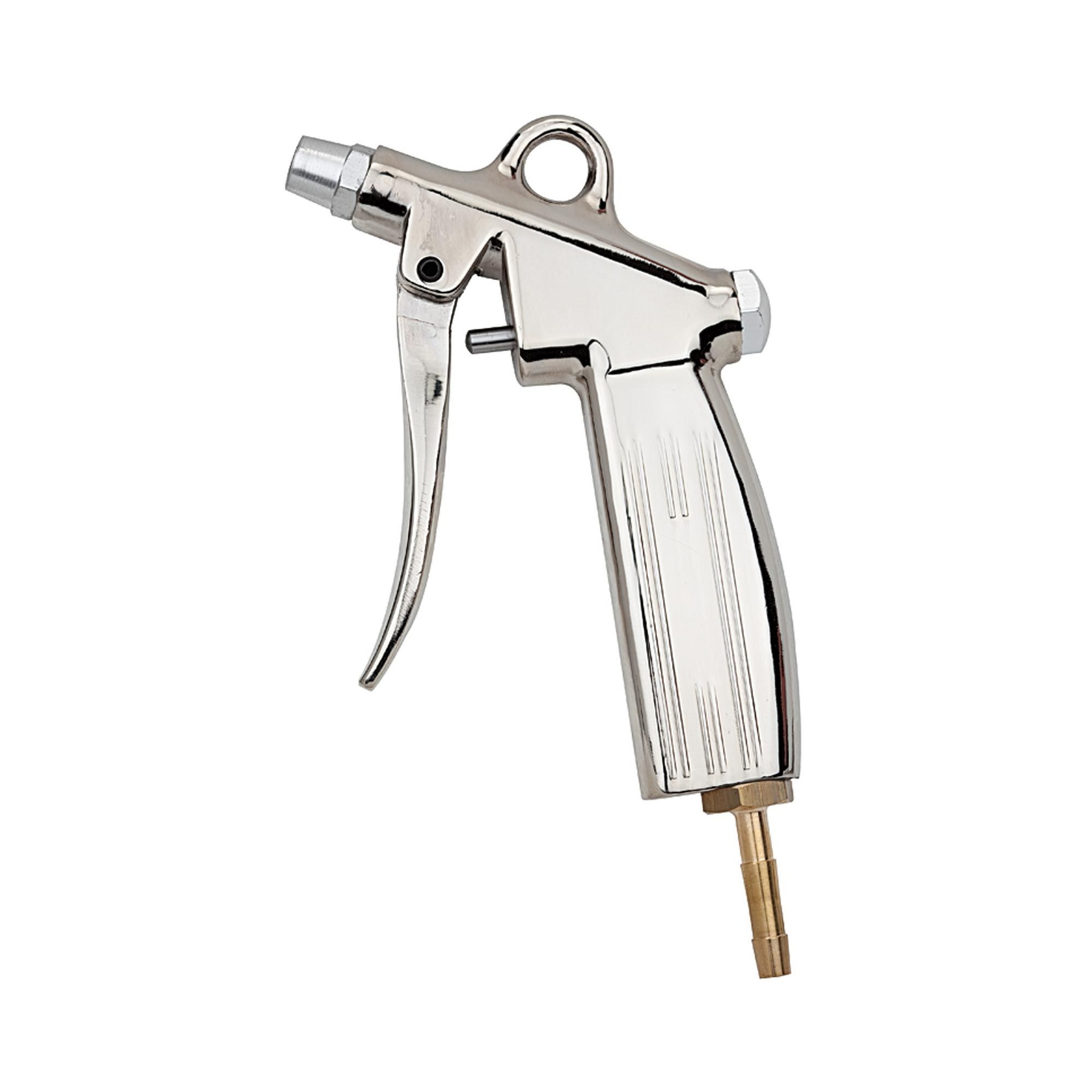

![[114324] RIEGLER Air gun, silencing nozzle, Sleeve I.D. 6](/web/image/product.template/190820/image_128/%5B114324%5D%20RIEGLER%20Air%20gun%2C%20silencing%20nozzle%2C%20Sleeve%20I.D.%206?unique=6012614)
|
Type number: 22 A/D |
14.86 € | |
![[114325] RIEGLER Air gun, silencing nozzle, Sleeve I.D. 9](/web/image/product.template/190822/image_128/%5B114325%5D%20RIEGLER%20Air%20gun%2C%20silencing%20nozzle%2C%20Sleeve%20I.D.%209?unique=c3769c8)
|
Type number: 22 B/D |
14.86 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

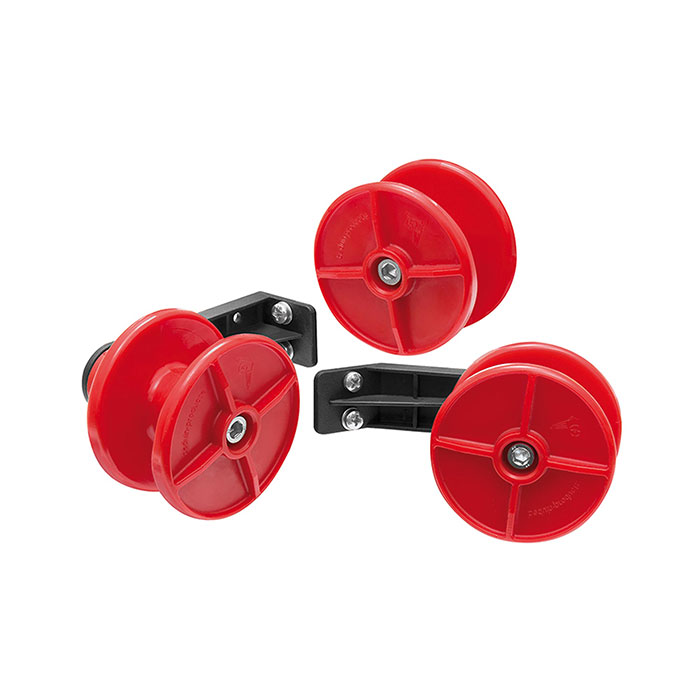

![[142249] RIEGLER Blow gun holder, incl. 2 brackets](/web/image/product.template/210704/image_128/%5B142249%5D%20RIEGLER%20Blow%20gun%20holder%2C%20incl.%202%20brackets?unique=9cd87f3)
|
Type number: BPH-1 |
10.42 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

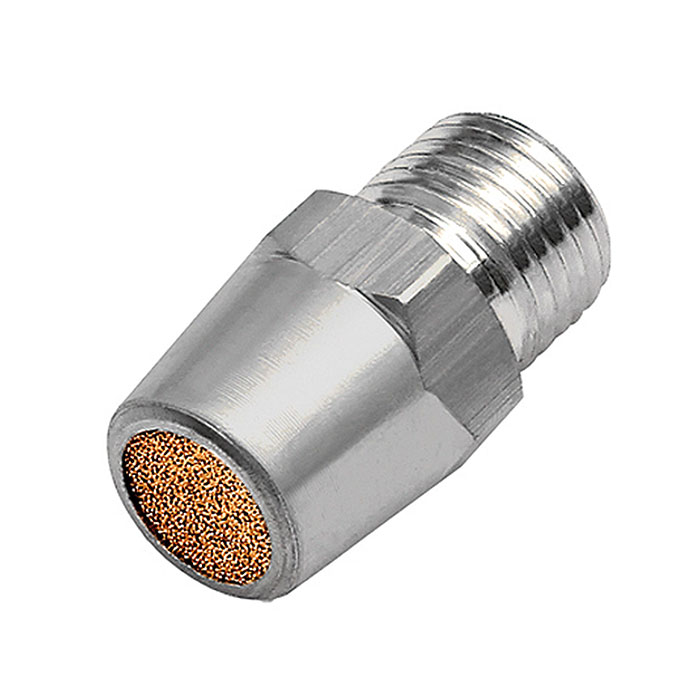

![[114345] RIEGLER Silencing nozzle, Connection M12x1,25](/web/image/product.template/190858/image_128/%5B114345%5D%20RIEGLER%20Silencing%20nozzle%2C%20Connection%20M12x1%2C25?unique=e5ebd33)
|
