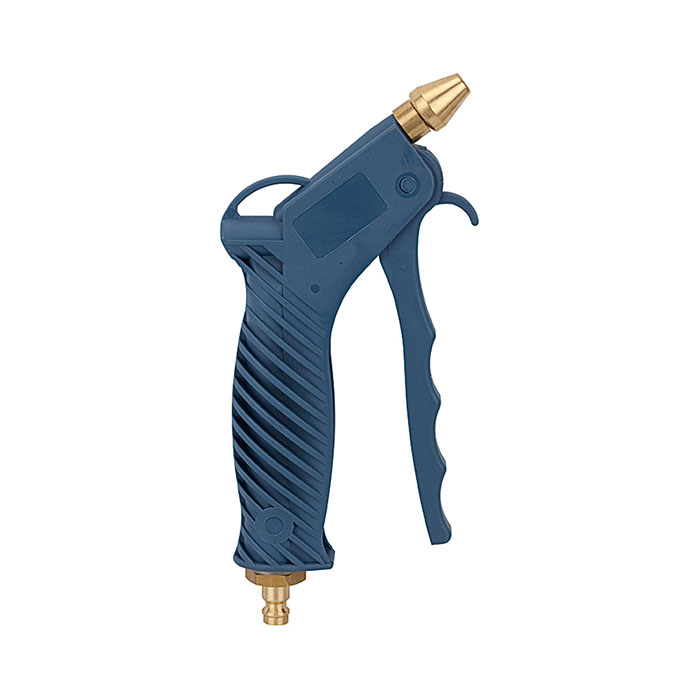

RIEGLER Air gun, safety nozzle, Plastic, Nipple for couplings I.D. 7.2
Type number: 24 F
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Blow gun made of plastic, for compressed air cleaning, max. 6 bar - Type 24 F
The RIEGLER blow gun, safety nozzle, plastic, for couplings NW 7.2 is a powerful compressed air blow gun for the targeted cleaning of workpieces, machines and workplaces. The housing is made of plastic. The operating pressure range is 1 bar to 6 bar. The temperature range is between -20 °C and 50 °C. Reduces cleaning time and keeps workplaces clean.
Field of application
Typical areas of application: Workshop, production and industrial cleaning.
| Temperature range min. | -20 °C |
| Temperature range max. | 50 °C |
| Max. operating pressure | 10 bar |
| Working pressure min. | 1 bar |
| Working pressure max. | 6 bar |
| Material | Plastic |
| Connection type | Plug nipple for couplings NW 7.2 |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[114377] RIEGLER Air gun with safety nozzle, Plastic, G 1/4 IT](/web/image/product.template/190917/image_128/%5B114377%5D%20RIEGLER%20Air%20gun%20with%20safety%20nozzle%2C%20Plastic%2C%20G%201-4%20IT?unique=84bdb52)
|
Type number: 24 D |
21.96 € | |
![[114378] RIEGLER Air gun with safety nozzle, Plastic, Nipple for couplings I.D. 5](/web/image/product.template/190919/image_128/%5B114378%5D%20RIEGLER%20Air%20gun%20with%20safety%20nozzle%2C%20Plastic%2C%20Nipple%20for%20couplings%20I.D.%205?unique=50aa9d7)
|
Type number: 24 E |
19.75 € | |

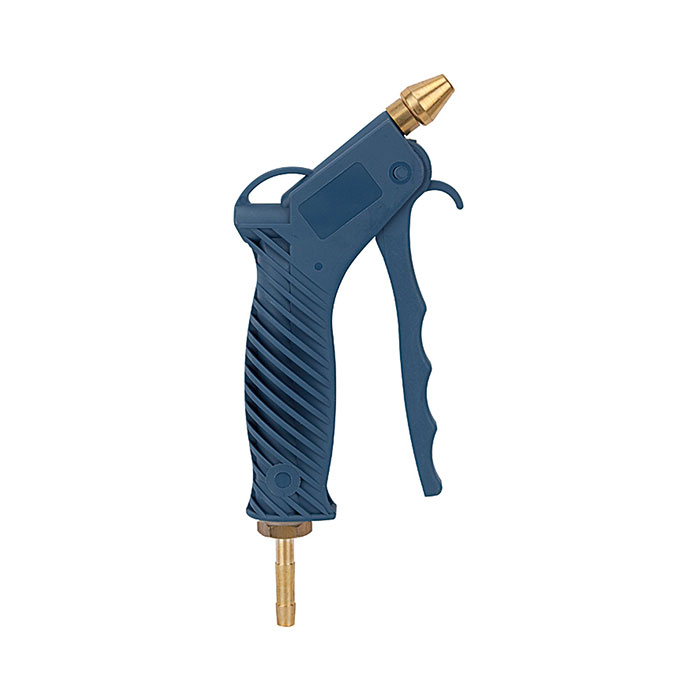

![[114376] RIEGLER Air gun with safety nozzle, Plastic, Sleeve I.D. 13](/web/image/product.template/190915/image_128/%5B114376%5D%20RIEGLER%20Air%20gun%20with%20safety%20nozzle%2C%20Plastic%2C%20Sleeve%20I.D.%2013?unique=498c32e)
|
Type number: 24 C |
19.75 € | |
![[114374] RIEGLER Air gun with safety nozzle, Plastic, Sleeve I.D. 6](/web/image/product.template/190912/image_128/%5B114374%5D%20RIEGLER%20Air%20gun%20with%20safety%20nozzle%2C%20Plastic%2C%20Sleeve%20I.D.%206?unique=36690f1)
|
Type number: 24 A |
19.75 € | |
![[114375] RIEGLER Air gun with safety nozzle, Plastic, Sleeve I.D. 9](/web/image/product.template/190913/image_128/%5B114375%5D%20RIEGLER%20Air%20gun%20with%20safety%20nozzle%2C%20Plastic%2C%20Sleeve%20I.D.%209?unique=d085e05)
|
Type number: 24 B |
19.75 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[142249] RIEGLER Blow gun holder, incl. 2 brackets](/web/image/product.template/210704/image_128/%5B142249%5D%20RIEGLER%20Blow%20gun%20holder%2C%20incl.%202%20brackets?unique=9cd87f3)
|
Type number: BPH-1 |
10.42 € | |
