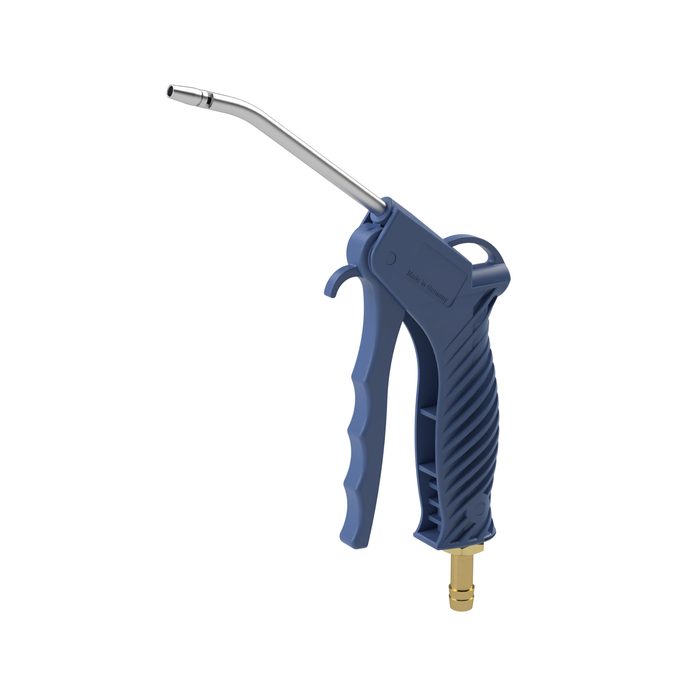

RIEGLER Air gun with extension pipe, Plastic, Sleeve I.D. 6
Type number: 25 A
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Blow gun made of plastic, for compressed air cleaning, max. 6 bar - Type 25 A
The RIEGLER blow gun, extension tube, plastic, nozzle LW 6 is a high-quality accessory from the RIEGLER range. The housing is made of plastic. The operating pressure range is 1 bar to 6 bar. The temperature range is between -20 °C and 50 °C. A perfect fit for RIEGLER products - easy installation.
Field of application
Typical areas of application: Maintenance, servicing and expansion of compressed air components.
| Temperature range min. | -20 °C |
| Temperature range max. | 50 °C |
| Max. operating pressure | 10 bar |
| Working pressure min. | 1 bar |
| Working pressure max. | 6 bar |
| Material | Plastic |
| Connection type | Grommet LW 6 |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

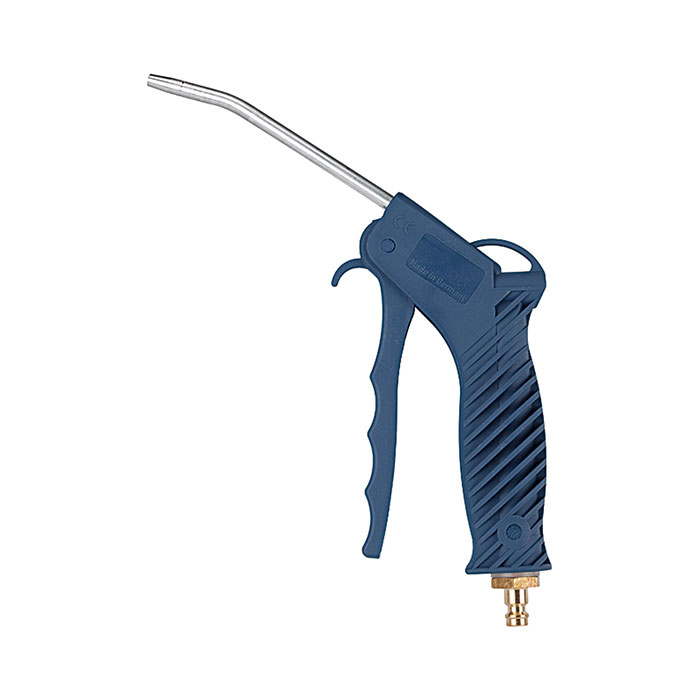

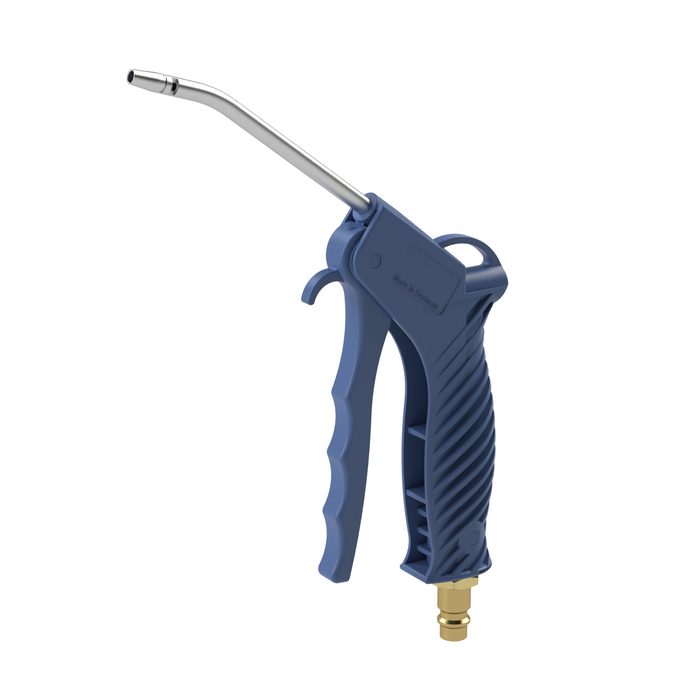

![[114385] RIEGLER Air gun, extension pipe, Plastic, Nipple for couplings I.D. 7.2](/web/image/product.template/190932/image_128/%5B114385%5D%20RIEGLER%20Air%20gun%2C%20extension%20pipe%2C%20Plastic%2C%20Nipple%20for%20couplings%20I.D.%207.2?unique=272fc0d)
|
Type number: 25 F |
12.91 € | |

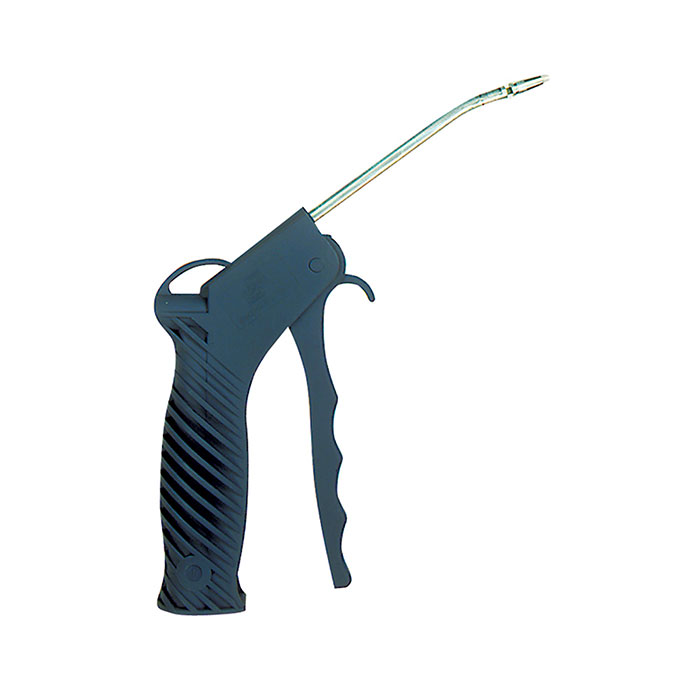

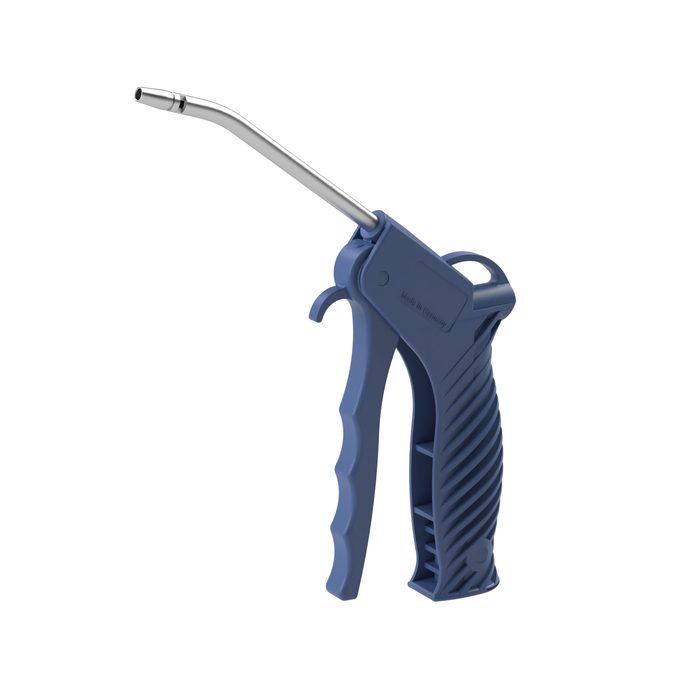

![[114383] RIEGLER Air gun with extension pipe, Plastic, G 1/4 IT](/web/image/product.template/190928/image_128/%5B114383%5D%20RIEGLER%20Air%20gun%20with%20extension%20pipe%2C%20Plastic%2C%20G%201-4%20IT?unique=07c9010)
|
Type number: 25 D |
14.22 € | |
![[114384] RIEGLER Air gun with extension pipe, Plastic, Nipple for couplings I.D. 5](/web/image/product.template/190930/image_128/%5B114384%5D%20RIEGLER%20Air%20gun%20with%20extension%20pipe%2C%20Plastic%2C%20Nipple%20for%20couplings%20I.D.%205?unique=b796573)
|
Type number: 25 E |
12.91 € | |
![[114382] RIEGLER Air gun with extension pipe, Plastic, Sleeve I.D. 13](/web/image/product.template/190927/image_128/%5B114382%5D%20RIEGLER%20Air%20gun%20with%20extension%20pipe%2C%20Plastic%2C%20Sleeve%20I.D.%2013?unique=24e85ca)
|
Type number: 25 C |
12.91 € | |

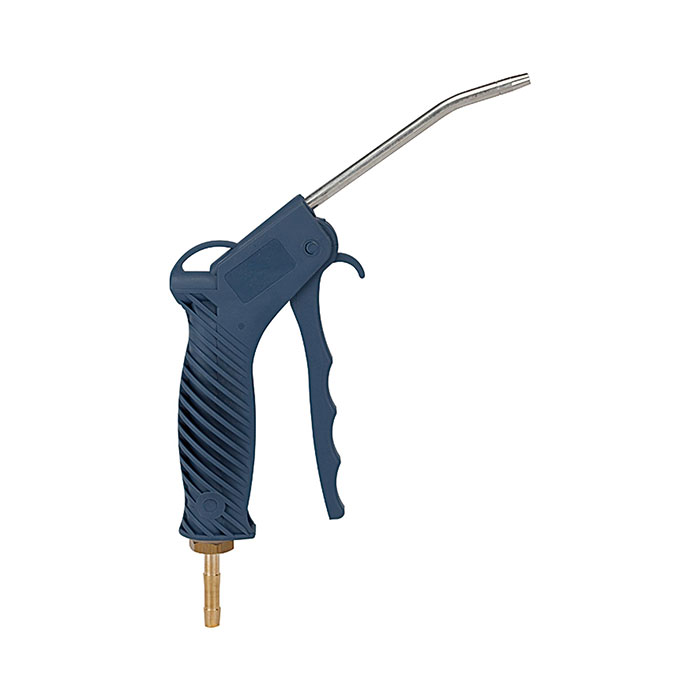

![[114381] RIEGLER Air gun with extension pipe, Plastic, Sleeve I.D. 9](/web/image/product.template/190925/image_128/%5B114381%5D%20RIEGLER%20Air%20gun%20with%20extension%20pipe%2C%20Plastic%2C%20Sleeve%20I.D.%209?unique=ba16b15)
|
Type number: 25 B |
12.91 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[142249] RIEGLER Blow gun holder, incl. 2 brackets](/web/image/product.template/210704/image_128/%5B142249%5D%20RIEGLER%20Blow%20gun%20holder%2C%20incl.%202%20brackets?unique=9cd87f3)
|
Type number: BPH-1 |
10.42 € | |
