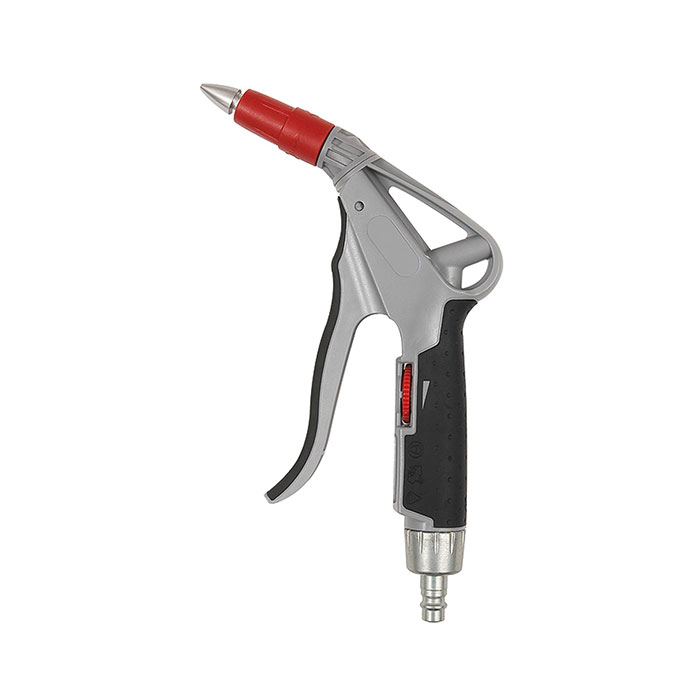

RIEGLER Compressed air/liquid gun, POM, Nipple I.D. 7.2 (compressed air)
Type number: 41 B
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Compressed air/fluid gun, infinitely variable, POM, temp. -20 °C to 60 °C, PN max. 16 bar, nipple NW 7.2 (compressed air)
| Temperature range min. | -20 °C |
| Temperature range max. | 60 °C |
| Max. operating pressure | 16 bar |
| Material | POM, TPE, aluminum |
| Compressed air flow min. | 200 l/min |
| Compressed air flow max. | 1200 l/min |
| Flow rate liquids min. | 5 l/min |
| Flow rate liquids max. | 25 l/min |
| Connection type | Connection nipple for couplings NW 7.2 for compressed air |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

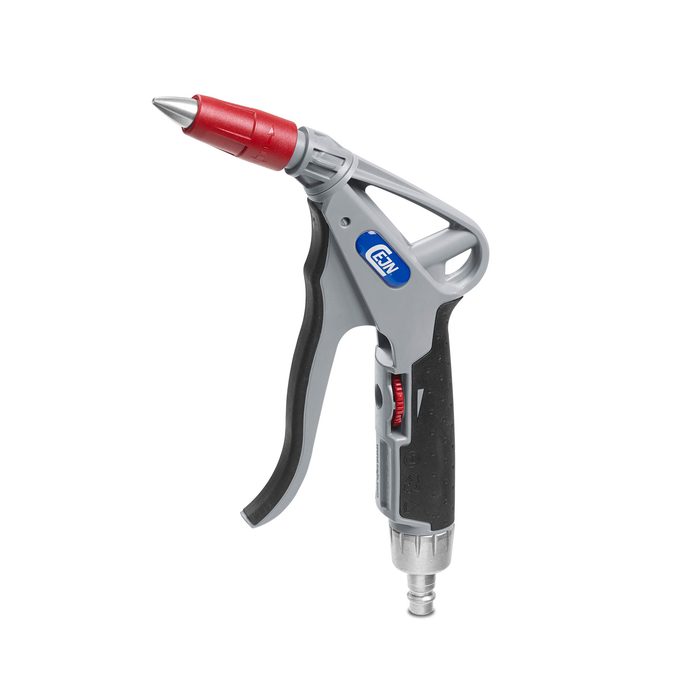

![[114386] RIEGLER Compressed air/liquid gun, POM, G 1/4 IT](/web/image/product.template/190934/image_128/%5B114386%5D%20RIEGLER%20Compressed%20air-liquid%20gun%2C%20POM%2C%20G%201-4%20IT?unique=ddb0f36)
|
Type number: 41 A |
63.21 € | |
![[114388] RIEGLER Compressed air/liquid gun, POM, Nipple with water coupling plug](/web/image/product.template/190938/image_128/%5B114388%5D%20RIEGLER%20Compressed%20air-liquid%20gun%2C%20POM%2C%20Nipple%20with%20water%20coupling%20plug?unique=96315ad)
|
Type number: 41 C |
67.75 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

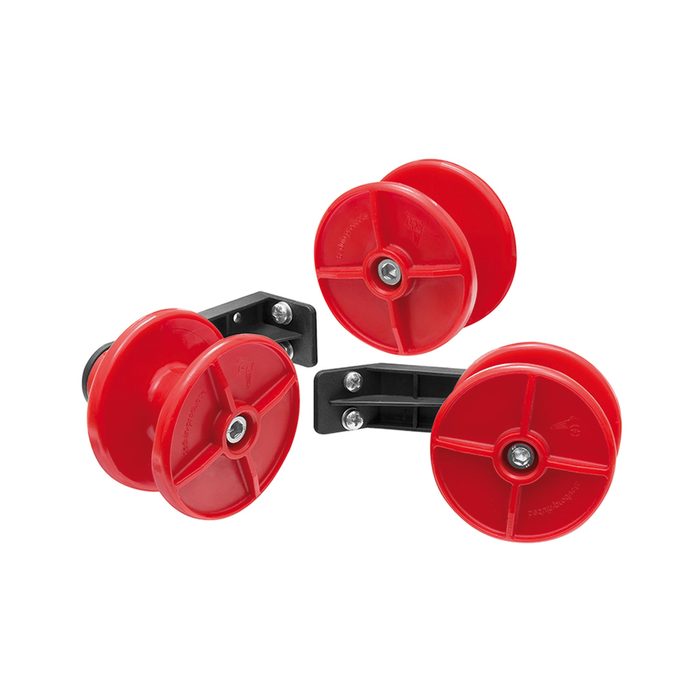

![[142249] RIEGLER Blow gun holder, incl. 2 brackets](/web/image/product.template/210704/image_128/%5B142249%5D%20RIEGLER%20Blow%20gun%20holder%2C%20incl.%202%20brackets?unique=0b4d93e)
|
Type number: BPH-1 |
10.42 € | |

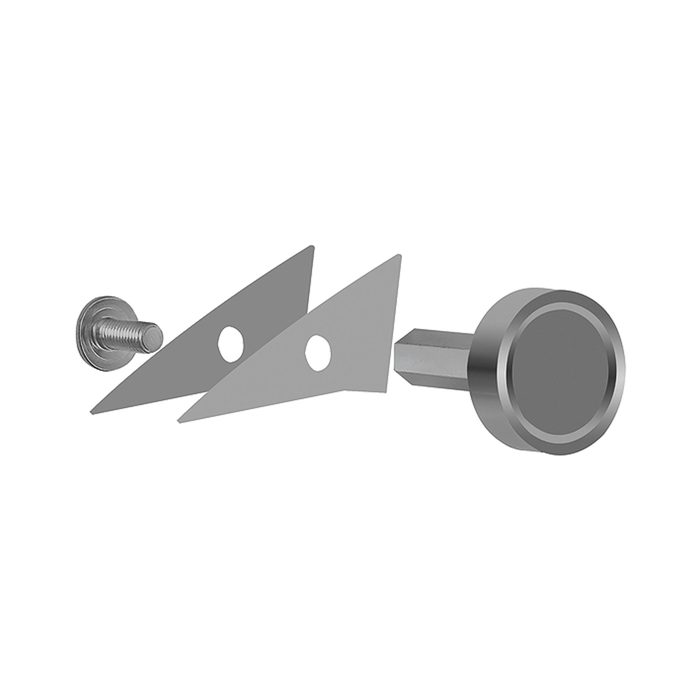

![[114389] RIEGLER Magnetic holder for compressed air and liquid guns](/web/image/product.template/190940/image_128/%5B114389%5D%20RIEGLER%20Magnetic%20holder%20for%20compressed%20air%20and%20liquid%20guns?unique=ea5cf32)
|
