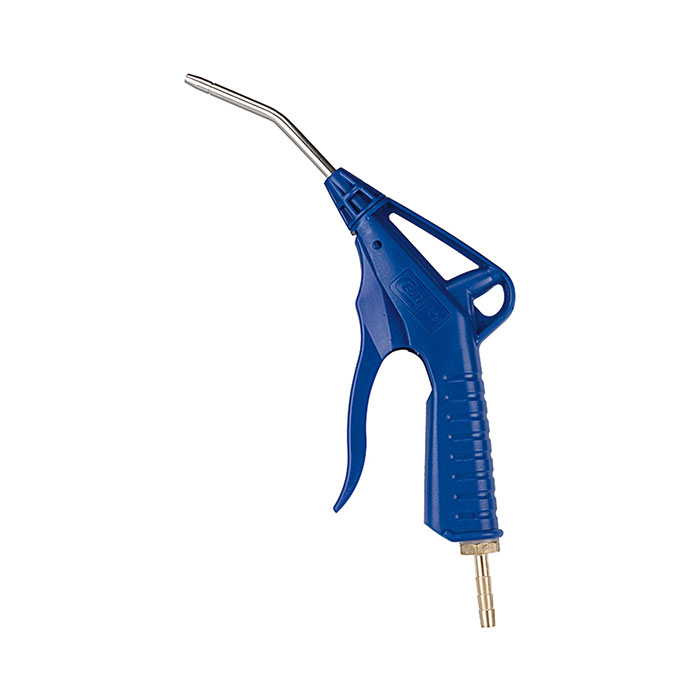

RIEGLER Metered air gun 90 mm pipe, POM, Rc 1/4, Sleeve I.D. 9
Type number: 37 B
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Metering blow gun 90 mm tube made of POM, for compressed air cleaning, max. 16 bar - Type 37 B
The RIEGLER dosing blow gun 90 mm tube, POM, Rc 1/4, nozzle LW 9 is a powerful compressed air blow gun for the targeted cleaning of workpieces, machines and workplaces. The housing is made of POM. Designed for a maximum operating pressure of 16 bar. The temperature range extends between -20 °C and 60 °C. Reduces cleaning time and keeps workplaces clean.
Field of application
Typical areas of application: Workshop, production and industrial cleaning.
| Temperature range min. | -20 °C |
| Temperature range max. | 60 °C |
| Connection thread | Rc 1/4 |
| Max. operating pressure | 16 bar |
| Material | POM |
| Air pipe | Nickel-plated brass |
| Connection type | Grommet LW 9 |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

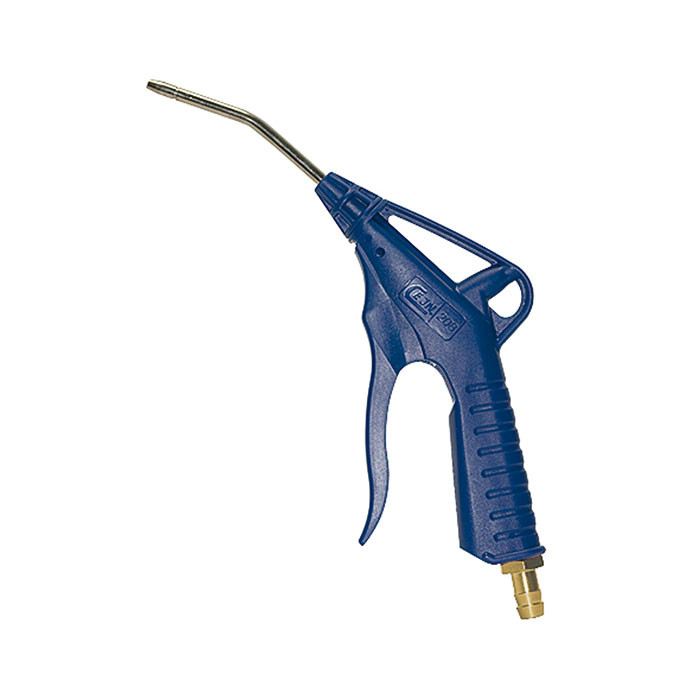

![[114397] RIEGLER Metered air gun 90 mm pipe, POM, Rc 1/4, I.D. 7.2-7.8](/web/image/product.template/190954/image_128/%5B114397%5D%20RIEGLER%20Metered%20air%20gun%2090%20mm%20pipe%2C%20POM%2C%20Rc%201-4%2C%20I.D.%207.2-7.8?unique=e5d9e1f)
|
Type number: 37 K |
16.33 € | |

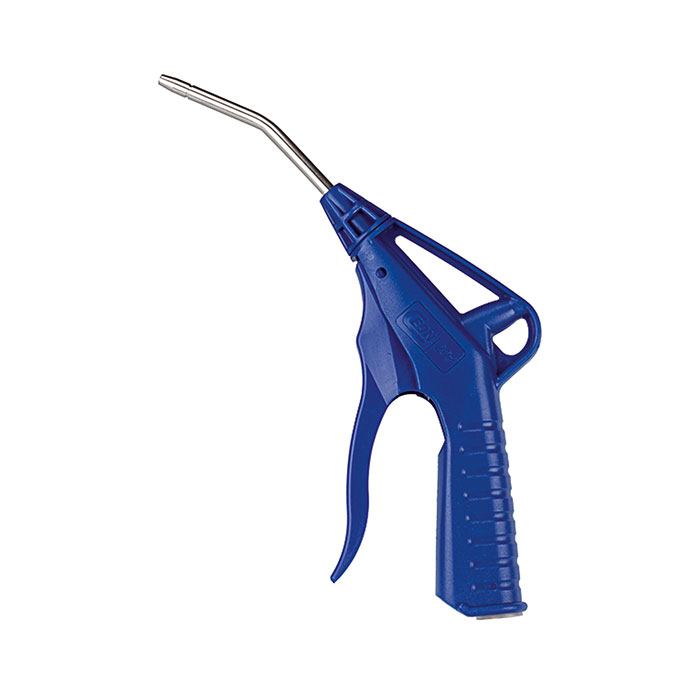

![[118465] RIEGLER Metered air gun 90 mm pipe, POM, Rc 1/4, Rc 1/4 IT](/web/image/product.template/202395/image_128/%5B118465%5D%20RIEGLER%20Metered%20air%20gun%2090%20mm%20pipe%2C%20POM%2C%20Rc%201-4%2C%20Rc%201-4%20IT?unique=a2a2310)
|
