RIEGLER Metered air gun 90 mm pipe, Star-tip nozzle, POM, I.D. 7.2 - 7.8
Type number: 38 K
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Metering blow gun made of POM, for compressed air cleaning, max. 16 bar - Type 38 K
The RIEGLER dosing blow gun, pipe with star-tip nozzle, nipple NW 7.2-7.8 is a powerful compressed air blow gun for the targeted cleaning of workpieces, machines and workplaces. The housing is made of POM. Designed for a maximum operating pressure of 16 bar. The temperature range extends between -20 °C and 60 °C. Reduces cleaning time and keeps workplaces clean.
Field of application
Typical areas of application: Workshop, production and industrial cleaning.
| Temperature range min. | -20 °C |
| Temperature range max. | 60 °C |
| Connection thread | Rc 1/4 |
| Max. operating pressure | 16 bar |
| Material | POM |
| Air pipe | Nickel-plated brass |
| Connection type | Connection nipple for couplings NW 7.2 - 7.8 |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Theme shop | SAFETY |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

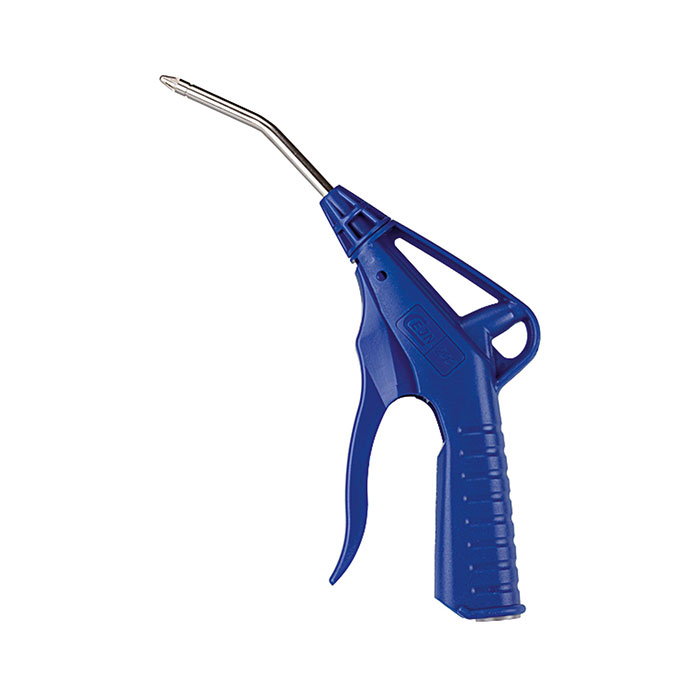

![[118485] RIEGLER Metered air gun 90 mm pipe, Star-tip nozzle, POM, Rc 1/4 IT](/web/image/product.template/202396/image_128/%5B118485%5D%20RIEGLER%20Metered%20air%20gun%2090%20mm%20pipe%2C%20Star-tip%20nozzle%2C%20POM%2C%20Rc%201-4%20IT?unique=49455a8)
|
Type number: 38 V |
16.34 € | |
![[114400] RIEGLER Metered air gun 90 mm pipe, Star-tip nozzle, POM, Sleeve I.D. 13](/web/image/product.template/190960/image_128/%5B114400%5D%20RIEGLER%20Metered%20air%20gun%2090%20mm%20pipe%2C%20Star-tip%20nozzle%2C%20POM%2C%20Sleeve%20I.D.%2013?unique=f86d023)
|
Type number: 38 C |
17.33 € | |

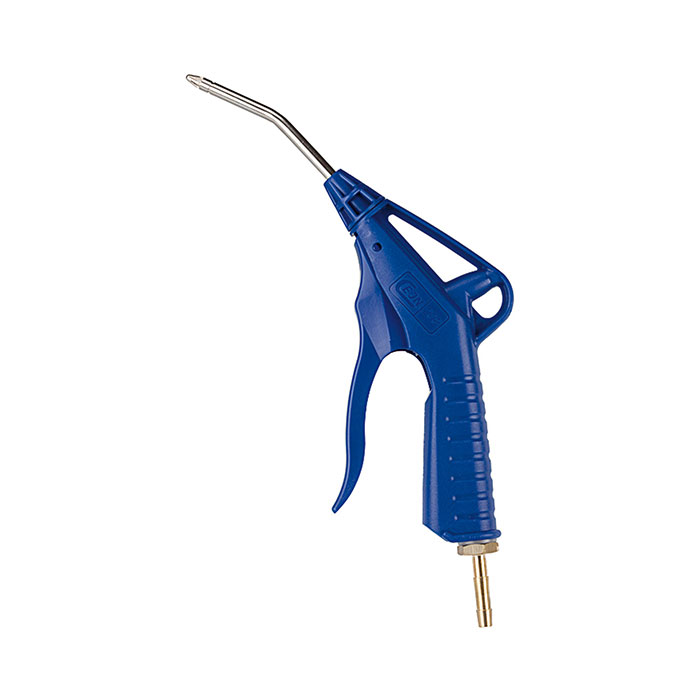

![[114398] RIEGLER Metered air gun 90 mm pipe, Star-tip nozzle, POM, Sleeve I.D. 6](/web/image/product.template/190956/image_128/%5B114398%5D%20RIEGLER%20Metered%20air%20gun%2090%20mm%20pipe%2C%20Star-tip%20nozzle%2C%20POM%2C%20Sleeve%20I.D.%206?unique=377ecf6)
|
Type number: 38 A |
17.33 € | |
![[114399] RIEGLER Metered air gun 90 mm pipe, Star-tip nozzle, POM, Sleeve I.D. 9](/web/image/product.template/190958/image_128/%5B114399%5D%20RIEGLER%20Metered%20air%20gun%2090%20mm%20pipe%2C%20Star-tip%20nozzle%2C%20POM%2C%20Sleeve%20I.D.%209?unique=c556ff6)
|
Type number: 38 B |
17.33 € | |
