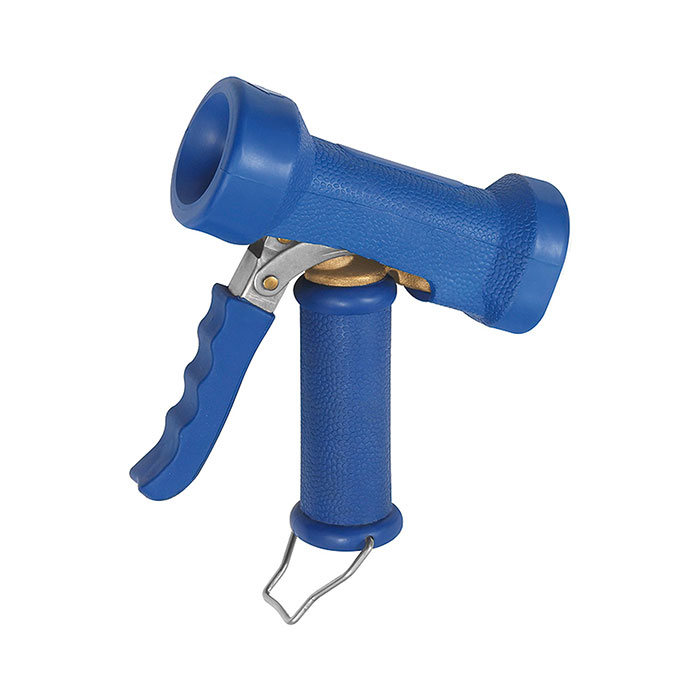

RIEGLER Professional cleaning gun, EPDM rubber cover, G 1/2 IT
Type number: RP-1
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Professional cleaning gun, bare brass, made of brass CW617N, for compressed air cleaning - type RP-1
The RIEGLER professional cleaning gun, bare brass, EPDM coating, G 1/2 IG uses compressed air for targeted blowing, cleaning or filling tasks. The housing is made of brass CW617N. Designed for a maximum operating pressure of 24 bar. The operating temperature is between 1 °C and 50 °C. The flow rate is 25 l/min (at 5 bar). Targeted compressed air application.
Field of application
Typical areas of application: Cleaning, drying and filling.
| Housing | Brass CW617N |
| Max. operating pressure | 24 bar |
| Flow rate | 25 l/min (at 5 bar) |
| Material | EPDM rubber coating |
| Operating temperature min. | 1 °C |
| Operating temperature max. | 50 °C |
| Valve core | Chrome-nickel steel VA 1.4301 |
| Connection type | G 1/2 IG |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | FLEX |
