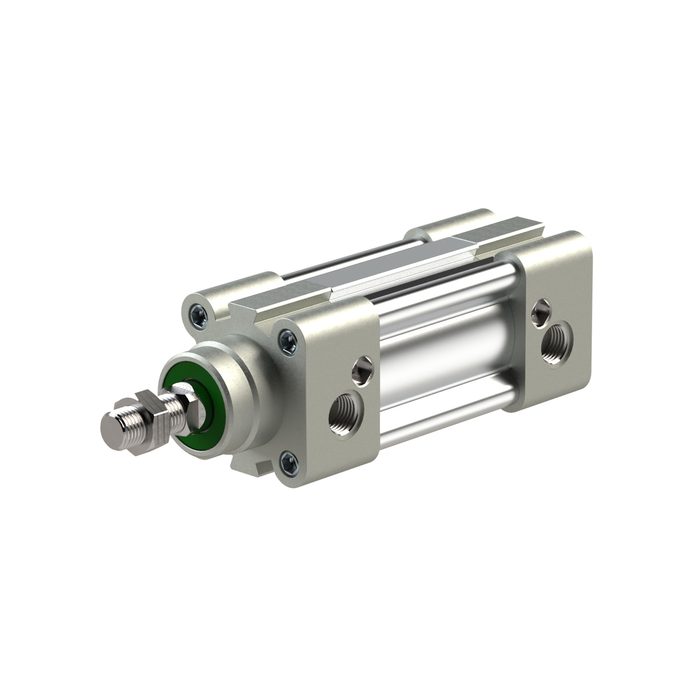

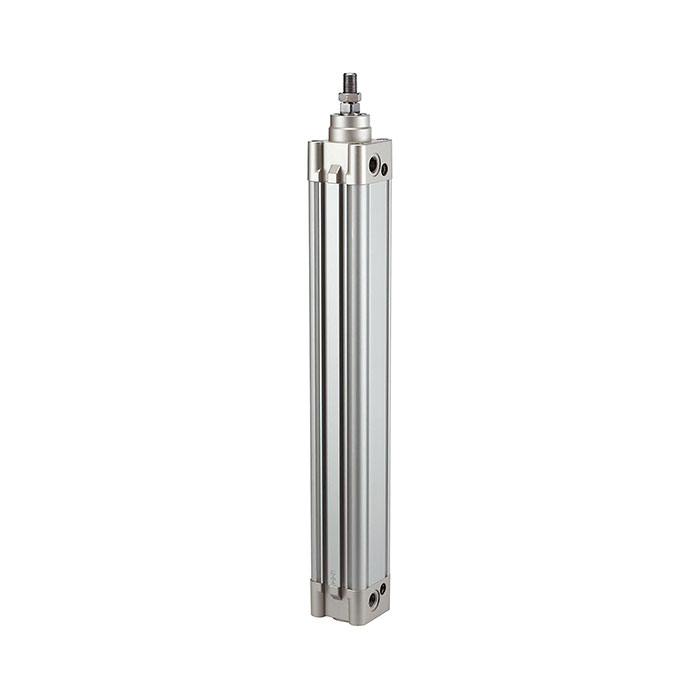

RIEGLER Standard cylinder, double-acting, Piston Ø 125, Stroke 25, G 1/2
Type number: 10.DMD.125025
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Standard cylinder "SE" double-acting for automation technology, max. 10 bar, G 1/2 - Type 10.DMD.125025
The RIEGLER standard cylinder "SE" double-acting, piston Ø 125, stroke 25, G 1/2 converts compressed air into linear force and movement - manufactured in accordance with ISO 15552 / ISO 6432. with NBR seals (O-rings). The operating pressure range is 1 bar to 10 bar. The temperature range is between -20 °C and 70 °C. Connection thread G 1/2 - suitable for common industry standards. With piston Ø 125 mm, stroke 25 mm, hard chrome-plated steel piston rod - for powerful linear actuator solutions. Standard-compliant and interchangeable across manufacturers.
Field of application
Typical areas of application: Automation, mechanical engineering and handling technology.
| Temperature range min. | -20 °C |
| Temperature range max. | 70 °C |
| Sealing material | NBR (O-rings) |
| Series | SE series |
| Working pressure min. | 1 bar |
| Working pressure max. | 10 bar |
| Pipe | Aluminum profile tube with integrated T-slots |
| Piston rod seal | TPU (thermoplastic polyurethane) |
| Piston seal | TPU (thermoplastic polyurethane) |
| Piston Ø | 125 mm |
| Function | double-acting |
| Stroke | 25 mm |
| Piston rods AG | M27x2 |
| Piston rod Ø | 32 mm |
| Connection | G 1/2 |
| Piston rod | Steel, hard chrome-plated |
| Piston | Aluminum |
| Class name | EASY |
| Magnet | with magnet |
| Standard | according to ISO 15552 |
| Damping | with adjustable damping |
| Thread piston rod | External thread on the piston rod |
