RIEGLER Stopper O-ring »value line«, G 1/4, Hexagonal socket 6.5 mm
Type number: 233.03-N-E
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Sealing plugs for pipeline construction, max. 60 bar, G 1/4 - Type 233.03-N-E
The RIEGLER sealing plug, O-ring "value line", G 1/4, nickel-plated brass closes open threaded connections pressure-tight. with seals made of NBR (O-ring). Designed for a maximum operating pressure of 60 bar. Connection thread G 1/4 - suitable for common industry standards. Pressure-tight seal for open threaded connections.
Field of application
Typical areas of application: Protection of open connections against contamination.
| Sealing material | NBR (O-ring) |
| Max. operating pressure | 60 bar |
| Operating temperature max. | 80 °C |
| Thread | G 1/4 |
| Internal hexagon | 6 mm |
| L1 | 11.5 mm |
| L2 | 8 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW617 |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[115526] RIEGLER Stopper O-ring »value line«, G 1/2, Hexagonal socket 10 mm](/web/image/product.template/200285/image_128/%5B115526%5D%20RIEGLER%20Stopper%20O-ring%20%C2%BBvalue%20line%C2%AB%2C%20G%201-2%2C%20Hexagonal%20socket%2010%20mm?unique=12528a6)
|
Type number: 233.05-N-E |
1.08 € | |
![[115523] RIEGLER Stopper O-ring »value line«, G 1/8, Hexagonal socket 5 mm](/web/image/product.template/200282/image_128/%5B115523%5D%20RIEGLER%20Stopper%20O-ring%20%C2%BBvalue%20line%C2%AB%2C%20G%201-8%2C%20Hexagonal%20socket%205%20mm?unique=6ad317f)
|
Type number: 233.02-N-E |
0.38 € | |

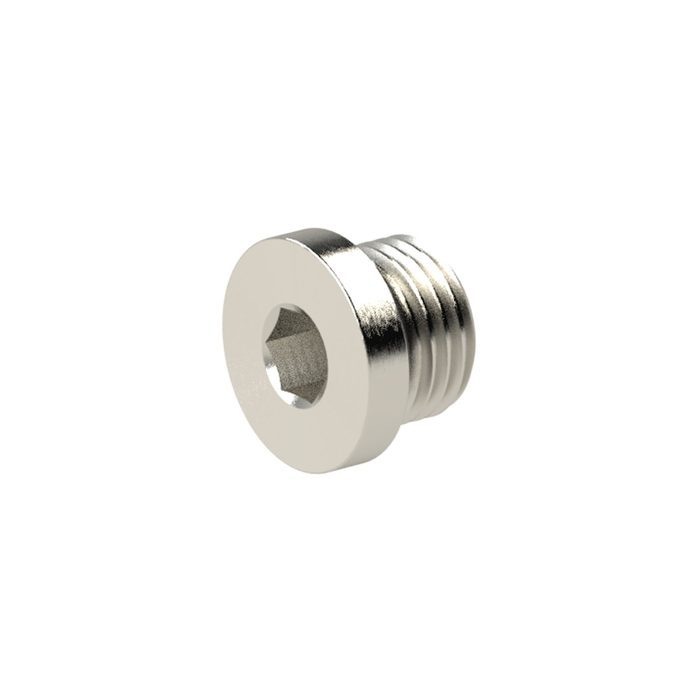

![[115525] RIEGLER Stopper O-ring »value line«, G 3/8, Hexagonal socket 8 mm](/web/image/product.template/200284/image_128/%5B115525%5D%20RIEGLER%20Stopper%20O-ring%20%C2%BBvalue%20line%C2%AB%2C%20G%203-8%2C%20Hexagonal%20socket%208%20mm?unique=b997c7f)
|
