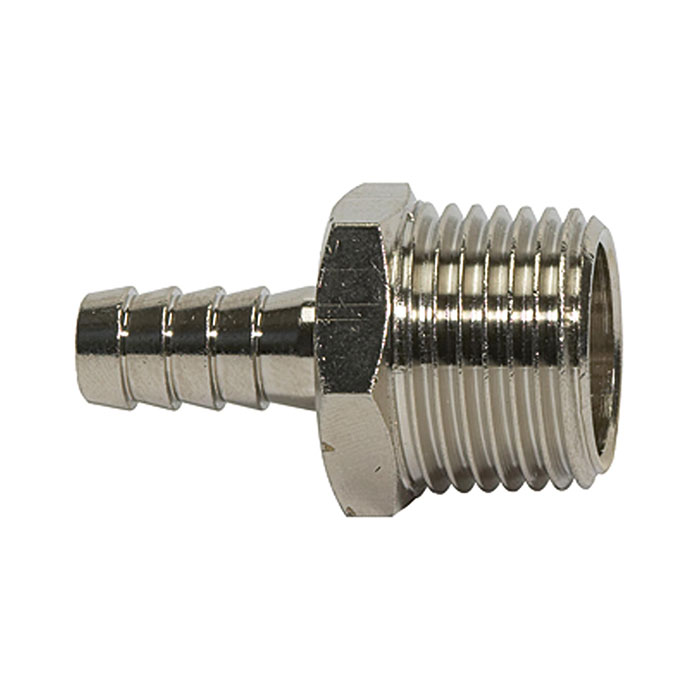

RIEGLER Screw-in hose connector »value line«, R 3/8, for hose I.D. 9
Type number: 239.110-E
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Screw-in hose nozzle "value line", R 3/8, for hose LW 9, operating pressure max. 60 bar, operating temp. max. 150 °C, MS nickel-plated.
| Max. operating pressure | 60 bar |
| Operating temperature max. | 150 °C |
| Thread | R 3/8 |
| SW | 17 mm |
| for hose | LW 9 mm |
| L1 | 35.5 mm |
| L2 | 11.5 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW617 |
| Class name | PLUS |
