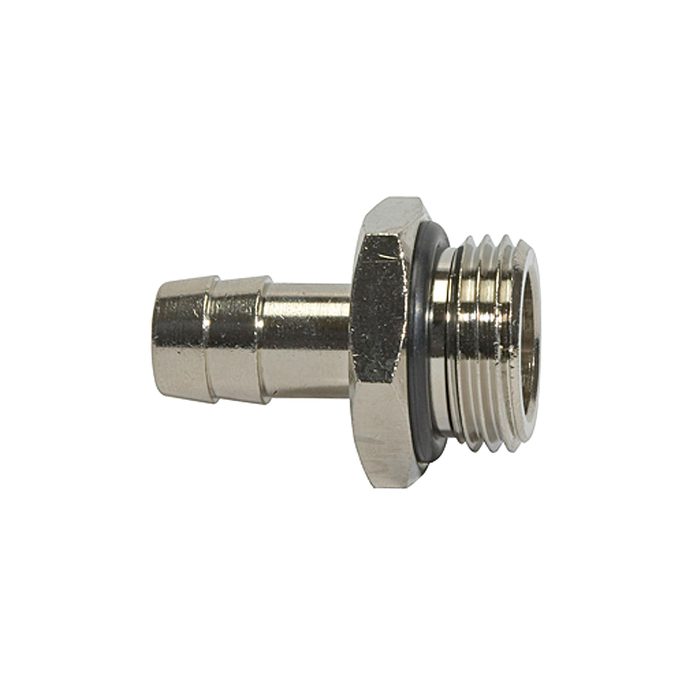

RIEGLER Screw-in hose connector, O-ring »value line«, G 1/8, hose I.D. 8
Type number: 239.502-E
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Screw-in hose nozzle for pneumatic installation, max. 60 bar, G 1/8 - Type 239.502-E
The RIEGLER screw-in hose nozzle, O-ring "value line" G 1/8, LW 8 permanently connects hoses to threaded connections - for reliable media supply. with seals made of NBR (O-ring). Designed for a maximum operating pressure of 60 bar. G 1/8 connection thread - suitable for common industry standards. Secure hose fixing for pressure-resistant connections.
Field of application
Typical areas of application: Compressed air, water, technical gases and industrial media.
| Sealing material | NBR (O-ring) |
| Max. operating pressure | 60 bar |
| Operating temperature max. | 80 °C |
| Thread | G 1/8 |
| SW | 14 mm |
| for hose | LW 8 mm |
| L1 | 30 mm |
| L2 | 6.5 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW617 |
| Class name | PLUS |
