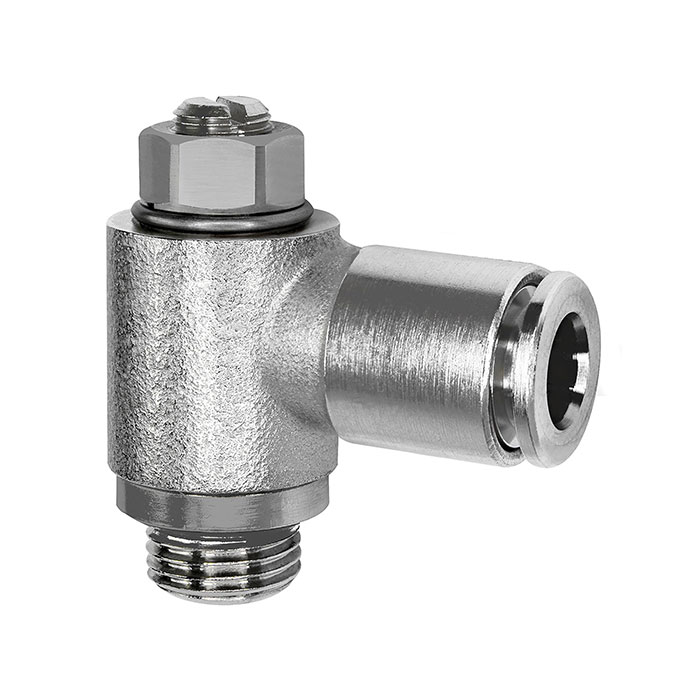

RIEGLER Thredtle check valve, exhaust air, M5, plug connection 6
Type number: 343.005-6-D
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
115703EAN :
4047322716222Category :
Unidirectional Flow Control ValvesWeight :
0.02 kgRIEGLER Throttle check valve for pneumatic control, max. 10 bar, M5 - Type 343.005-6-D
The RIEGLER throttle check valve, exhaust air, M5, plug connection 6 regulates the speed of pneumatic drives or blocks backflow. with NBR seals. The operating pressure range is 0 bar to 10 bar. The temperature range is between -20 °C and 80 °C. M5 connection thread - suitable for common industry standards. Infinitely variable speed control for smooth movement sequences.
Field of application
Typical areas of application: Speed control of pneumatic cylinders.
| Connection type | Connection Plug connection |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Share of SVHC substance in % for RoHS | 0.04 |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Execution | adjustable with slotted screw |
| Exception | 6c |
| B | 25.5 mm |
| Construction method | rotatable |
| Max. operating pressure | 10 bar |
| Operating pressure min. | 0 bar |
| C | 21.5 mm |
| CAS No. SVHC 1 | 7439-92-1 |
| Sealing material | NBR |
| Function | Exhaust air throttling (C) |
| for hose | 6 mm |
| Thread | M5 |
| Base body | Nickel-plated brass |
| Class name | PLUS |
| Material identification | CW614N, CW617N |
| REACH Info | contains SVHC substance |
| REACH SVHC1 Substance Name | Lead |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS material information | RoHS compliant |
| Silicone-free | Yes |
| SW | 6 mm |
| Temperature range max. | 80 °C |
| Temperature range min. | -20 °C |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[116339] RIEGLER Thredtle check valve, exhaust air, G 1/4, plug connection 10](/web/image/product.template/267750/image_128/%5B116339%5D%20RIEGLER%20Thredtle%20check%20valve%2C%20exhaust%20air%2C%20G%201-4%2C%20plug%20connection%2010?unique=ed0aa0b)
|
Type number: 343.014-10-D |
11.29 € | |
![[115809] RIEGLER Thredtle check valve, exhaust air, G 1/4, plug connection 6](/web/image/product.template/267737/image_128/%5B115809%5D%20RIEGLER%20Thredtle%20check%20valve%2C%20exhaust%20air%2C%20G%201-4%2C%20plug%20connection%206?unique=81a87b6)
|
Type number: 343.014-6-D |
10.36 € | |
![[116338] RIEGLER Thredtle check valve, exhaust air, G 1/4, plug connection 8](/web/image/product.template/267740/image_128/%5B116338%5D%20RIEGLER%20Thredtle%20check%20valve%2C%20exhaust%20air%2C%20G%201-4%2C%20plug%20connection%208?unique=5a17226)
|
Type number: 343.014-8-D |
10.52 € | |
![[115704] RIEGLER Thredtle check valve, exhaust air, G 1/8, plug connection 4](/web/image/product.template/267718/image_128/%5B115704%5D%20RIEGLER%20Thredtle%20check%20valve%2C%20exhaust%20air%2C%20G%201-8%2C%20plug%20connection%204?unique=81a87b6)
|
Type number: 343.018-4-D |
9.79 € | |
![[115705] RIEGLER Thredtle check valve, exhaust air, G 1/8, plug connection 6](/web/image/product.template/267719/image_128/%5B115705%5D%20RIEGLER%20Thredtle%20check%20valve%2C%20exhaust%20air%2C%20G%201-8%2C%20plug%20connection%206?unique=81a87b6)
|
Type number: 343.018-6-D |
9.51 € | |
![[115706] RIEGLER Thredtle check valve, exhaust air, G 1/8, plug connection 8](/web/image/product.template/267720/image_128/%5B115706%5D%20RIEGLER%20Thredtle%20check%20valve%2C%20exhaust%20air%2C%20G%201-8%2C%20plug%20connection%208?unique=81a87b6)
|
Type number: 343.018-8-D |
9.79 € | |

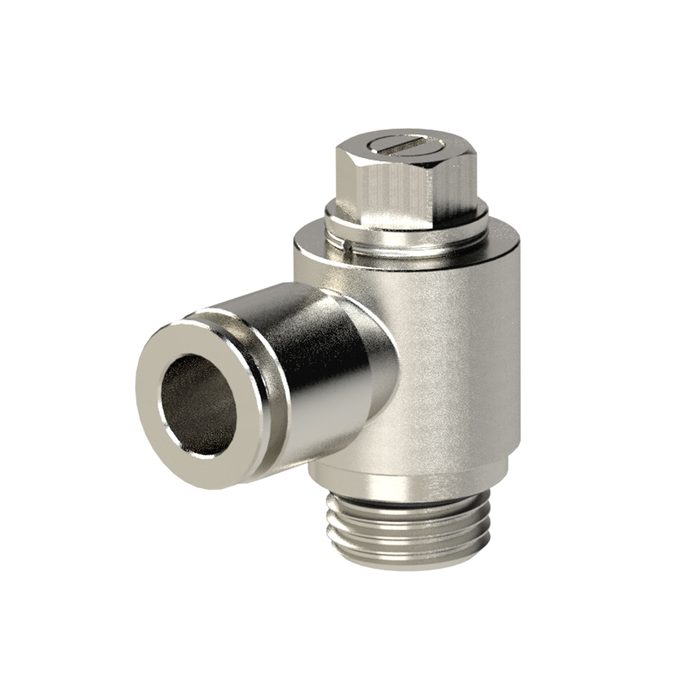

![[116502] RIEGLER Thredtle check valve, exhaust air, G 3/8, plug connection 10](/web/image/product.template/267821/image_128/%5B116502%5D%20RIEGLER%20Thredtle%20check%20valve%2C%20exhaust%20air%2C%20G%203-8%2C%20plug%20connection%2010?unique=81a87b6)
|
