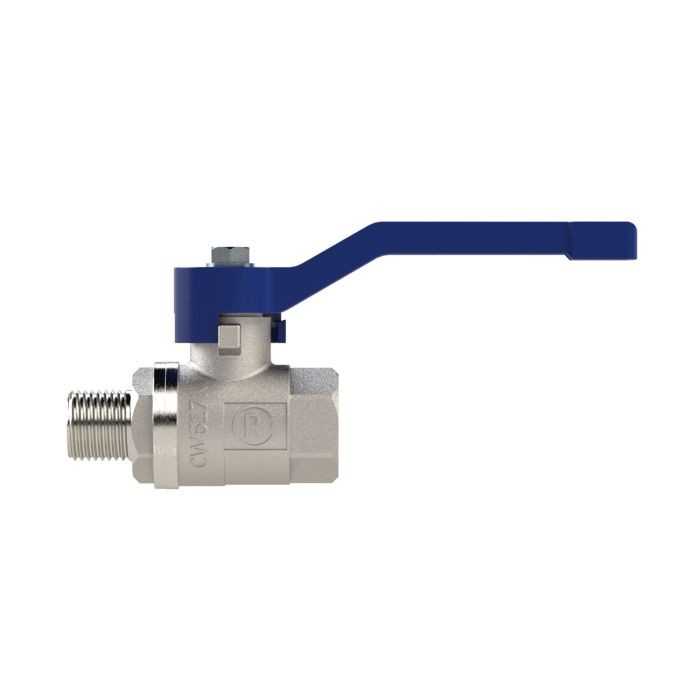

RIEGLER Ball valve »valve line«, Hand lever blue, IT/ET, G 1
Type number: 335.06-E
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Ball valve "valve line" made of nickel-plated brass, for industrial systems, max. 25 bar - Type 335.06-E
The RIEGLER ball valve "valve line", hand lever blue, MS nickel-plated, IG/AG, G 1 opens or shuts off the media flow with a quarter turn - full flow with minimal pressure loss. The housing is made of nickel-plated brass. Designed for a maximum operating pressure of 25 bar. The operating temperature is between -20 °C and 120 °C. Connection thread G 1 (G thread to DIN EN ISO 288-1) - suitable for common industry standards. Simple operation with minimal pressure loss.
Field of application
Typical areas of application: Compressed air, water, gas and industrial pipes.
| Housing | Nickel-plated brass |
| Max. operating pressure | 25 bar |
| Ball | Nickel-plated brass |
| Ball seal | PTFE |
| Spindle seal | NBR |
| Hand lever | Steel Q235-A (1.0038) with blue PVC coating |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 120 °C |
| Thread | G 1 |
| DN | 25 |
| Thread standard | G-thread according to DIN EN ISO 288-1 |

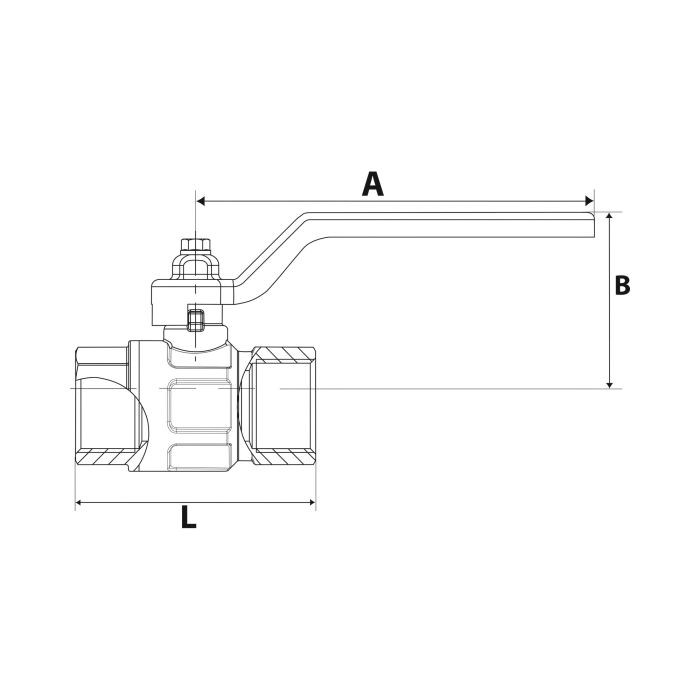

| A | 118 mm |
| B | 55 mm |
| L | 74 mm |
| C Ø | 24 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW617N |
| Thread material | Nickel-plated brass |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[115725] RIEGLER Ball valve »valve line«, Hand lever blue, IT/ET, G 1 1/2](/web/image/product.template/200460/image_128/%5B115725%5D%20RIEGLER%20Ball%20valve%20%C2%BBvalve%20line%C2%AB%2C%20Hand%20lever%20blue%2C%20IT-ET%2C%20G%201%201-2?unique=fc4b8eb)
|
Type number: 335.08-E |
20.13 € | |
![[115724] RIEGLER Ball valve »valve line«, Hand lever blue, IT/ET, G 1 1/4](/web/image/product.template/200459/image_128/%5B115724%5D%20RIEGLER%20Ball%20valve%20%C2%BBvalve%20line%C2%AB%2C%20Hand%20lever%20blue%2C%20IT-ET%2C%20G%201%201-4?unique=75cd877)
|
Type number: 335.07-E |
13.96 € | |
![[115721] RIEGLER Ball valve »valve line«, Hand lever blue, IT/ET, G 1/2](/web/image/product.template/200456/image_128/%5B115721%5D%20RIEGLER%20Ball%20valve%20%C2%BBvalve%20line%C2%AB%2C%20Hand%20lever%20blue%2C%20IT-ET%2C%20G%201-2?unique=8f26a0b)
|
Type number: 335.04-E |
3.89 € | |

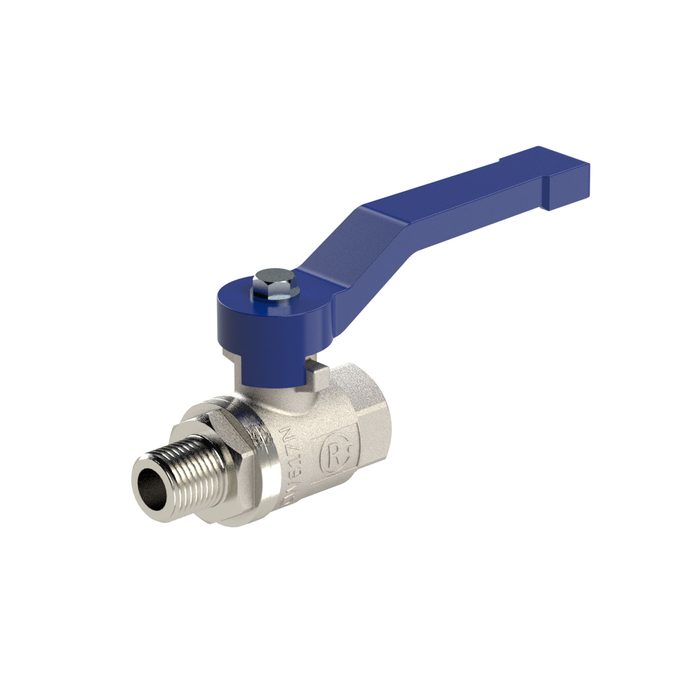

![[115719] RIEGLER Ball valve »valve line«, Hand lever blue, IT/ET, G 1/4](/web/image/product.template/200454/image_128/%5B115719%5D%20RIEGLER%20Ball%20valve%20%C2%BBvalve%20line%C2%AB%2C%20Hand%20lever%20blue%2C%20IT-ET%2C%20G%201-4?unique=9f8eb9c)
|
Type number: 335.02-E |
3.46 € | |

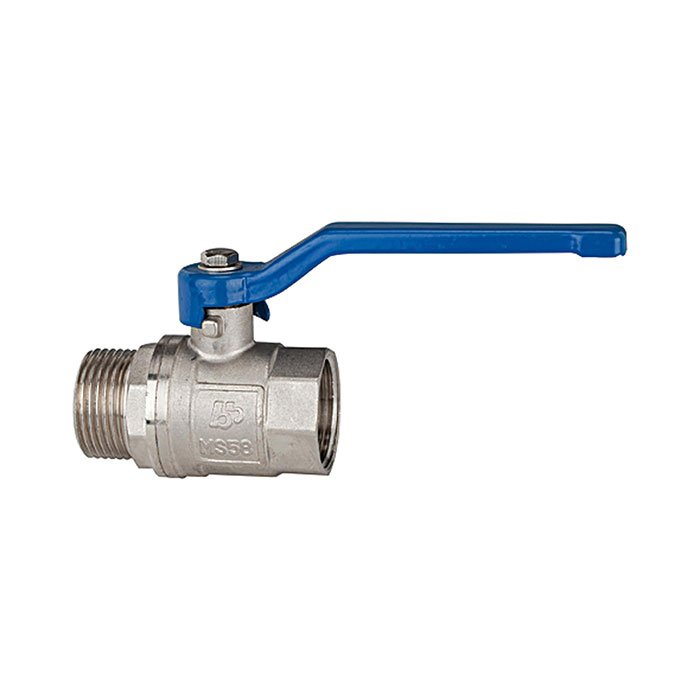

![[115726] RIEGLER Ball valve »valve line«, Hand lever blue, IT/ET, G 2](/web/image/product.template/200461/image_128/%5B115726%5D%20RIEGLER%20Ball%20valve%20%C2%BBvalve%20line%C2%AB%2C%20Hand%20lever%20blue%2C%20IT-ET%2C%20G%202?unique=4b72847)
|
