RIEGLER Joint head »UNIT«, Piston rod thread M10x1.25
Type number: 437.220
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years

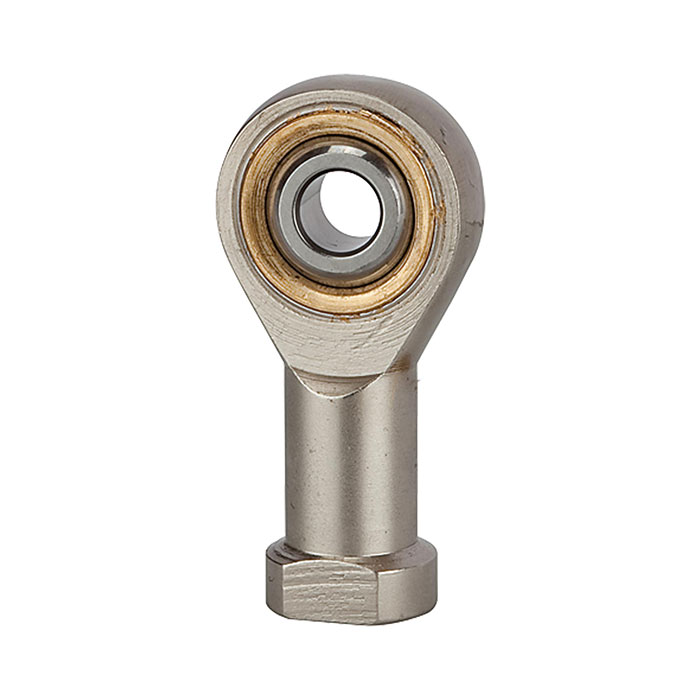

RIEGLER Hinge eye type "UNIT" for automation technology - Type 437.220
The RIEGLER articulated eye type "UNIT", piston rod thread M10x1.25 enables flexible and safe mounting of pneumatic cylinders. Flexible mounting options for various installation positions.
Field of application
Typical areas of application: Cylinder assembly on machines, frames and systems.
| Type | Type UNIT |
| Piston rod thread | M10x1.25 |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| for cylinders | SE and SAI series, MI and MSI series, ACQ and ASQ series, ACP series |
| suitable for piston Ø | 32 / 32 / 25-32 / 25 / 20-40 mm |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Grease nipple | without |
