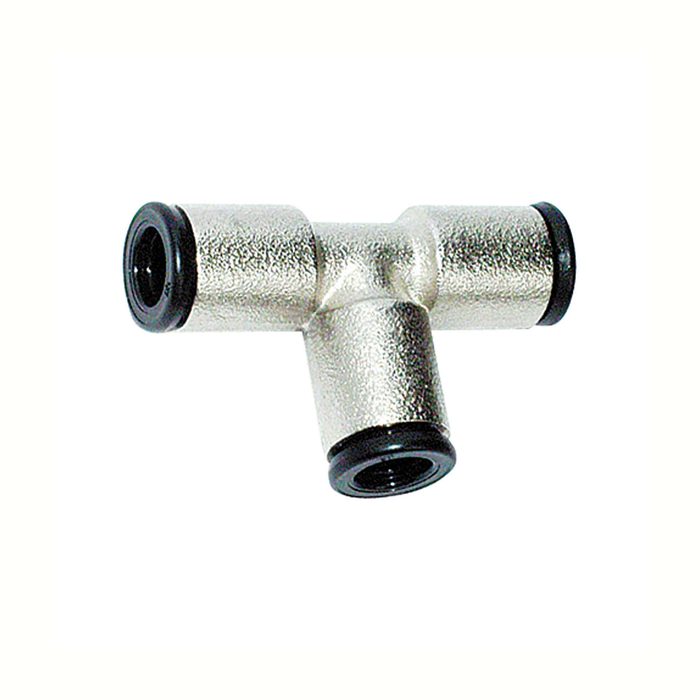

RIEGLER T-connection »value line«, for hose exterior Ø 12 mm
Type number: 49.012-E
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER T-connector "value line" made of nickel-plated brass, for pneumatic installation, max. 16 bar - Type 49.012-E
The RIEGLER T-connector "value line", for hose outer Ø 12 mm, MS nickel-plated, connects compressed air hoses and pipes quickly and securely by simply screwing them in. The housing is made of nickel-plated brass with silicone-free NBR seals. The operating pressure range is -0.98 bar to 16 bar. The operating temperature is between -20 °C and 80 °C. Suitable for compressed air. Simple assembly and disassembly for flexible line routing.
Field of application
Typical areas of application: Compressed air installations and pneumatic systems.
| Medium | Compressed air |
| Sealing material | NBR, silicone-free |
| Series | value line |
| Working pressure min. | -0.98 bar |
| Working pressure max. | 16 bar |
| Material | Nickel-plated brass |
| Area of application | Compressed air systems, vacuum |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 80 °C |
| Solder ring | Nickel-plated brass, black |
| Recommended hose | PA, PU |
| Collet chuck | Stainless steel AISI 316 |
| for hose outer Ø | 12 mm |

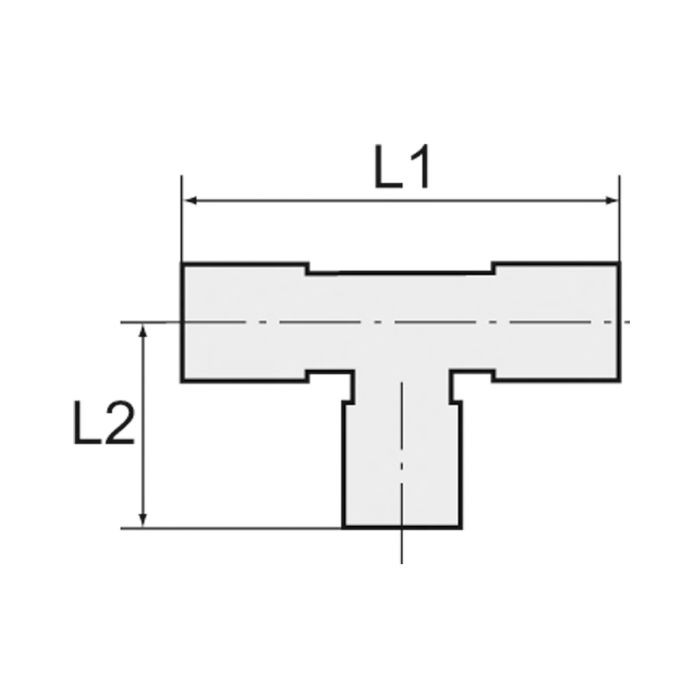

| L1 | 27 mm |
| L2 | 27 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| O-ring | NBR |
| Class name | EASY |
