RIEGLER 5/2-way valve, Push button actuation, »3L« G 1/4
Type number: 514.4004
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
5/2-way valve, Push button actuation, »3L« Control panel integration, G 1/4, Operating pressure 0-10bar, Temp. range -20°C to 70°C
| Temperature range min. | -20 °C |
| Temperature range max. | 70 °C |
| Flow rate measurement | with P<subscript>1</subscript> = 8 bar, P<subscript>2 </subscript>= 6 bar and pressure drop Î"<subscript>p</subscript> = 1 bar |
| Operating pressure min. | 0 bar |
| Max. operating pressure | 10 bar |
| Valve body | Aluminum alloy |
| Flow rate | 1300 l/min |
| Function | 5/2 |
| BG | 300 |
| Venting connection | G 1/4 |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | G 1/4 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[115979] RIEGLER 5/2-way valve, Push button actuation, »3L« G 1/4](/web/image/product.template/200712/image_128/%5B115979%5D%20RIEGLER%205-2-way%20valve%2C%20Push%20button%20actuation%2C%20%C2%BB3L%C2%AB%20G%201-4?unique=660037b)
|
Type number: 514.4003 |
30.50 € | |
![[115977] RIEGLER 5/2-way valve, Push button actuation, »3L« G 1/8](/web/image/product.template/200710/image_128/%5B115977%5D%20RIEGLER%205-2-way%20valve%2C%20Push%20button%20actuation%2C%20%C2%BB3L%C2%AB%20G%201-8?unique=d2e5c40)
|
Type number: 514.4001 |
25.94 € | |

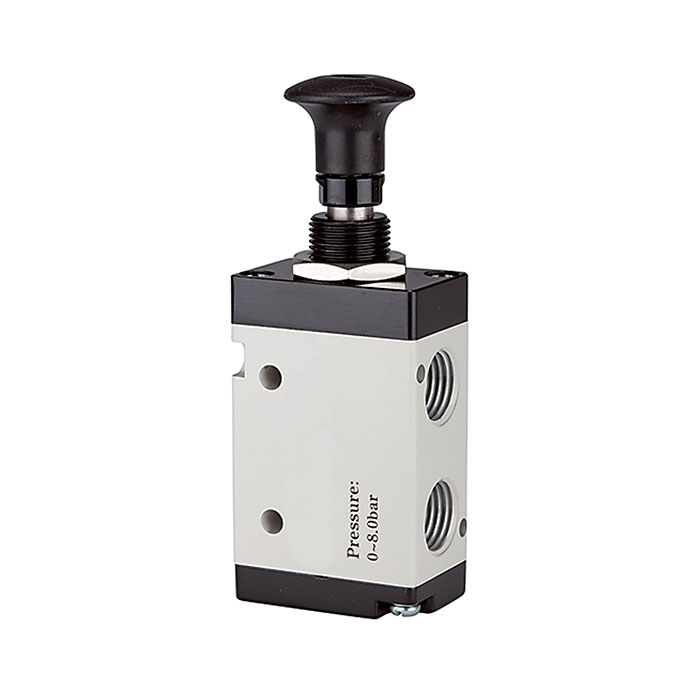

![[115978] RIEGLER 5/2-way valve, Push button actuation, »3L« G 1/8](/web/image/product.template/200711/image_128/%5B115978%5D%20RIEGLER%205-2-way%20valve%2C%20Push%20button%20actuation%2C%20%C2%BB3L%C2%AB%20G%201-8?unique=9c765f5)
|
