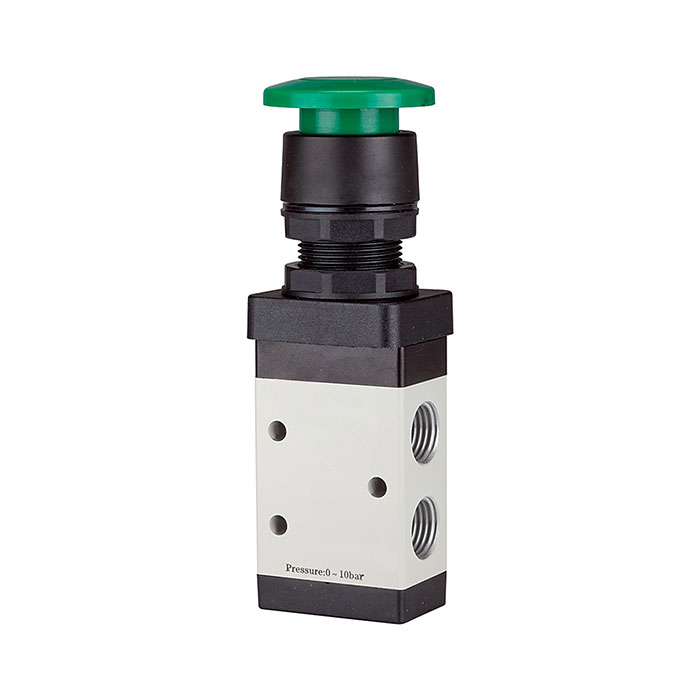

RIEGLER 3/2-way valve manual »M3« Palm button, NC, monostable, G 1/8
Type number: 515.5002
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER 3/2-way valve for pneumatic control, max. 10 bar, G 1/8 - Type 515.5002
The RIEGLER 3/2-way valve, manual "M3", mushroom button, NC, monostable, G1/8, green controls the direction of the compressed air flow for targeted movement sequences. The operating pressure range is 0 bar to 10 bar. The temperature range is between -20 °C and 70 °C. Connection thread G 1/8 - suitable for common industry standards. The flow rate is 450 l/min (at P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar). Precise directional control for defined movement sequences.
Field of application
Typical areas of application: Pneumatic controls and mechanical engineering.
| Temperature range min. | -20 °C |
| Temperature range max. | 70 °C |
| Flow rate measurement | with P<subscript>1</subscript> = 8 bar, P<subscript>2 </subscript>= 6 bar and pressure drop Î"<subscript>p</subscript> = 1 bar |
| Operating pressure min. | 0 bar |
| Max. operating pressure | 10 bar |
| Valve body | Aluminum alloy |
| Flow rate | 450 l/min |
| Function | 3/2 NC |
| Actuation | monostable |
| Symbol | 1 |
| Venting connection | G 1/8 |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | G 1/8 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Lever/switch colour | green |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[116009] RIEGLER 3/2-way valve manual »M3« Palm button, NC, monostable, G 1/4](/web/image/product.template/200742/image_128/%5B116009%5D%20RIEGLER%203-2-way%20valve%20manual%20%C2%BBM3%C2%AB%20Palm%20button%2C%20NC%2C%20monostable%2C%20G%201-4?unique=b70acdf)
|
Type number: 515.5003 |
35.33 € | |
![[116010] RIEGLER 3/2-way valve manual »M3« Palm button, NC, monostable, G 1/4](/web/image/product.template/200743/image_128/%5B116010%5D%20RIEGLER%203-2-way%20valve%20manual%20%C2%BBM3%C2%AB%20Palm%20button%2C%20NC%2C%20monostable%2C%20G%201-4?unique=e80df25)
|
Type number: 515.5004 |
35.33 € | |
![[116011] RIEGLER 3/2-way valve manual »M3« Palm button, NC, monostable, G 1/4](/web/image/product.template/200744/image_128/%5B116011%5D%20RIEGLER%203-2-way%20valve%20manual%20%C2%BBM3%C2%AB%20Palm%20button%2C%20NC%2C%20monostable%2C%20G%201-4?unique=b3d3d8a)
|
Type number: 515.5005 |
35.33 € | |
![[116006] RIEGLER 3/2-way valve manual »M3« Palm button, NC, monostable, G 1/8](/web/image/product.template/200739/image_128/%5B116006%5D%20RIEGLER%203-2-way%20valve%20manual%20%C2%BBM3%C2%AB%20Palm%20button%2C%20NC%2C%20monostable%2C%20G%201-8?unique=1f0c13c)
|
Type number: 515.5000 |
35.33 € | |

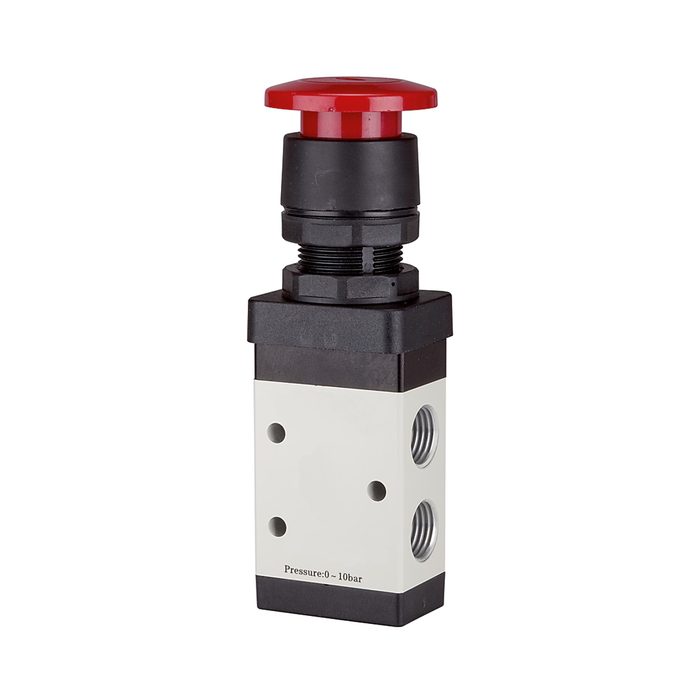

![[116007] RIEGLER 3/2-way valve manual »M3« Palm button, NC, monostable, G 1/8](/web/image/product.template/200740/image_128/%5B116007%5D%20RIEGLER%203-2-way%20valve%20manual%20%C2%BBM3%C2%AB%20Palm%20button%2C%20NC%2C%20monostable%2C%20G%201-8?unique=38487ae)
|
