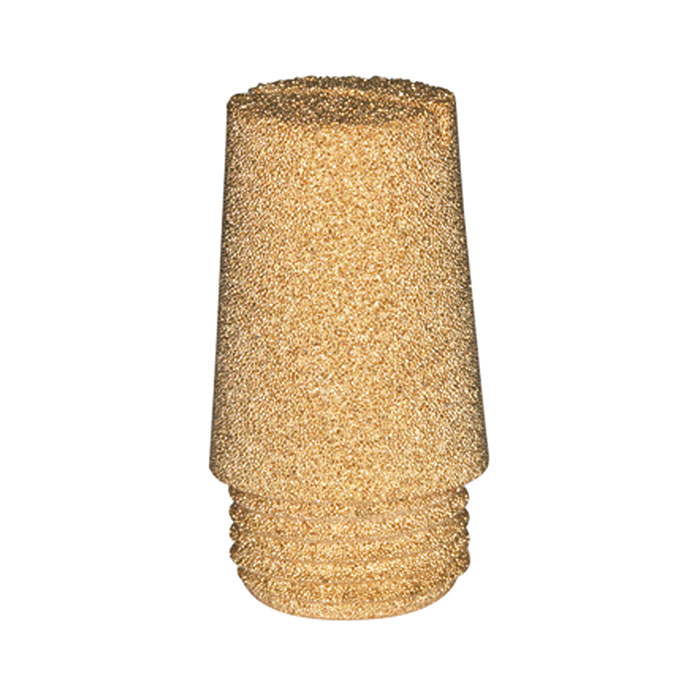

RIEGLER Sintered bronze silencer »value line«, Slot, G 1/4
Type number: 568-2-E
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Silencer made of sintered bronze "value line" for noise protection, max. 10 bar, G 1/4 - Type 568-2-E
The RIEGLER silencer made of sintered bronze "value line", slot, G 1/4 significantly reduces the blow-off noise of pneumatic valves and cylinders. Designed for a maximum operating pressure of 10 bar. The operating temperature is between -10 °C and 200 °C. G 1/4 connection thread - suitable for common industry standards. Significant noise reduction for improved occupational safety.
Field of application
Typical areas of application: Noise reduction on valves and exhaust air openings.
| Max. operating pressure | 10 bar |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 200 °C |
| Noise level at 6 bar | 80 - 90 dB |
| Thread | G 1/4 |
| A | 8.5 mm |
| B | 27 mm |
| C | 10 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Class name | EASY |
