RIEGLER 3/2-way start-up valve »G-mini«, 24 V DC, Size 200, G 1/8
Type number: GA 05.2
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
3/2-way start-up valve "G-mini", 24 V DC, with mounting bracket and silencer, BG 200, G 1/8, inlet pressure 2.5 - 9 bar
| Inlet pressure min. | 2.5 bar |
| Inlet pressure max. | 9 bar |
| Housing | Die-cast aluminum |
| Sealing material | NBR |
| Flow rate measurement | with P<sub>1</sub> = 8 bar, P<sub>2 </sub>= 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | G-mini |
| Electrical connection | Device plug PG 9, form B |
| Medium temperature max. | 70 °C |
| Ambient temperature max. | 70 °C |
| Thread | G 1/8 |
| Flow rate | 550 l/min |
| BG | 200 |
| A | 59 mm |
| B | 123.5 mm |
| C | 93.5 mm |
| D | 30 mm |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

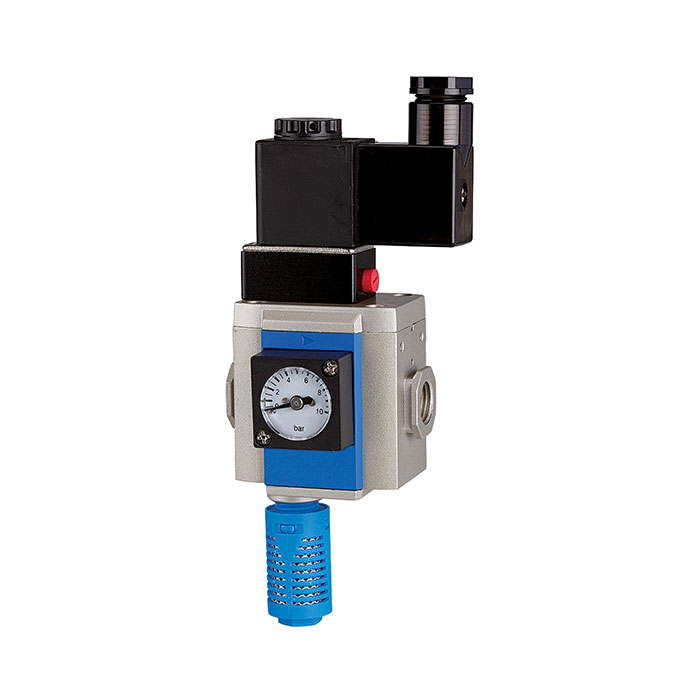

![[116343] RIEGLER 3/2-way start-up valve »G-mini«, 24 V DC, Size 200, G 1/4](/web/image/product.template/201074/image_128/%5B116343%5D%20RIEGLER%203-2-way%20start-up%20valve%20%C2%BBG-mini%C2%AB%2C%2024%20V%20DC%2C%20Size%20200%2C%20G%201-4?unique=022e300)
|
Type number: GA 06.2 |
65.32 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

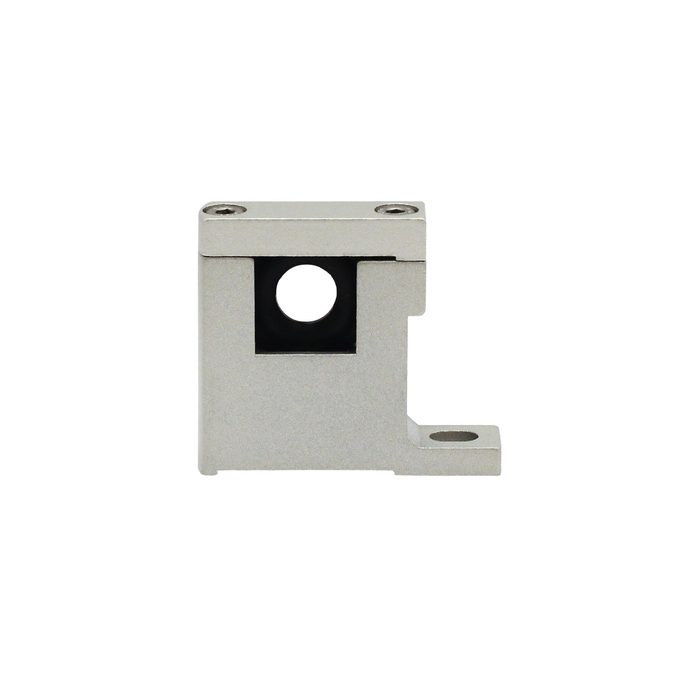

![[116515] RIEGLER Connecting element with wall mounting, 1 hole, L-shaped bracket](/web/image/product.template/201215/image_128/%5B116515%5D%20RIEGLER%20Connecting%20element%20with%20wall%20mounting%2C%201%20hole%2C%20L-shaped%20bracket?unique=f8417fb)
|
Type number: LB 200 |
5.87 € | |

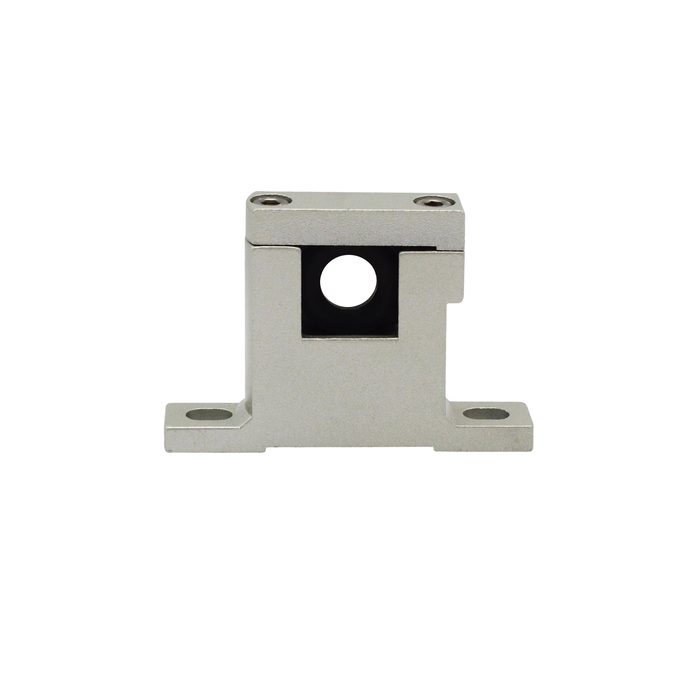

![[116608] RIEGLER Connecting element with wall mounting, 2 holes, T-shaped bracket](/web/image/product.template/202326/image_128/%5B116608%5D%20RIEGLER%20Connecting%20element%20with%20wall%20mounting%2C%202%20holes%2C%20T-shaped%20bracket?unique=f104db6)
|
Type number: TB 200 |
5.87 € | |

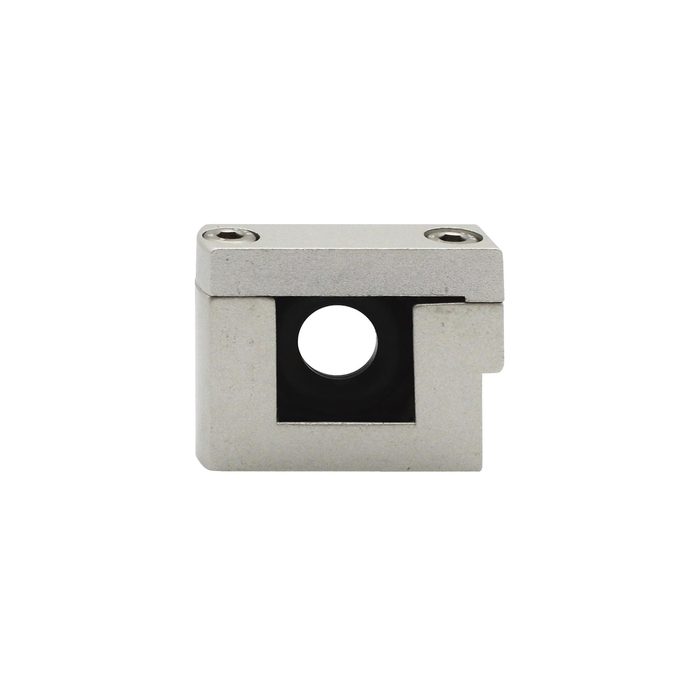

![[116612] RIEGLER Connecting element without wall mounting, with U-shaped band](/web/image/product.template/202330/image_128/%5B116612%5D%20RIEGLER%20Connecting%20element%20without%20wall%20mounting%2C%20with%20U-shaped%20band?unique=18245ba)
|
