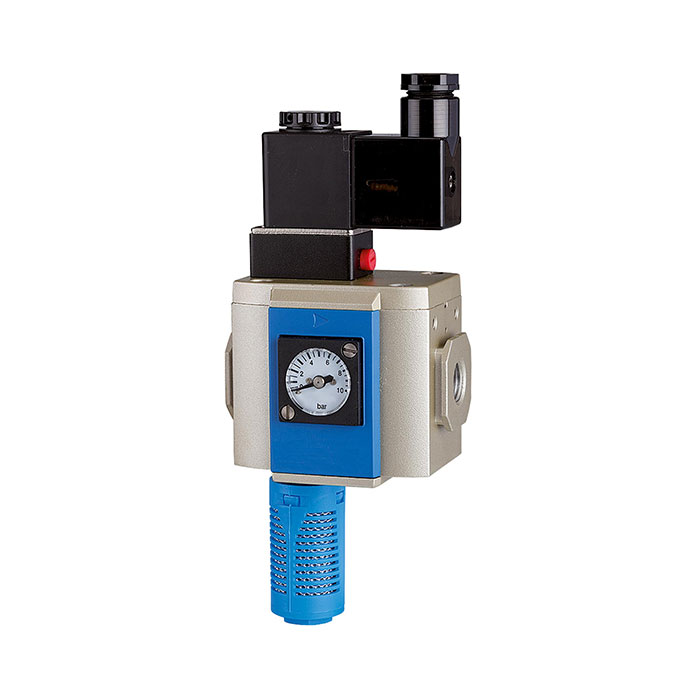

RIEGLER 3/2-way start-up valve »G«, 24 V DC, Size 300, G 1/4
Type number: GA 11.2
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
3/2-way control valve "G", 24 V DC, with mounting bracket and silencer, BG 300, G 1/4, inlet pressure 2.5 - 9 bar
| Inlet pressure min. | 2.5 bar |
| Inlet pressure max. | 9 bar |
| Housing | Die-cast aluminum |
| Sealing material | NBR |
| Flow rate measurement | with P<sub>1</sub> = 8 bar, P<sub>2 </sub>= 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | G |
| Electrical connection | Device plug PG 9, form B |
| Medium temperature max. | 70 °C |
| Ambient temperature max. | 70 °C |
| Thread | G 1/4 |
| Flow rate | 1600 l/min |
| BG | 300 |
| A | 65 mm |
| B | 131 mm |
| C | 97 mm |
| D | 34 mm |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[116349] RIEGLER 3/2-way start-up valve »G«, 24 V DC, Size 300, G 1/2](/web/image/product.template/201080/image_128/%5B116349%5D%20RIEGLER%203-2-way%20start-up%20valve%20%C2%BBG%C2%AB%2C%2024%20V%20DC%2C%20Size%20300%2C%20G%201-2?unique=1dc726a)
|
Type number: GA 13.2 |
80.41 € | |
![[116347] RIEGLER 3/2-way start-up valve »G«, 24 V DC, Size 300, G 3/8](/web/image/product.template/201078/image_128/%5B116347%5D%20RIEGLER%203-2-way%20start-up%20valve%20%C2%BBG%C2%AB%2C%2024%20V%20DC%2C%20Size%20300%2C%20G%203-8?unique=594973f)
|
Type number: GA 12.2 |
80.41 € | |

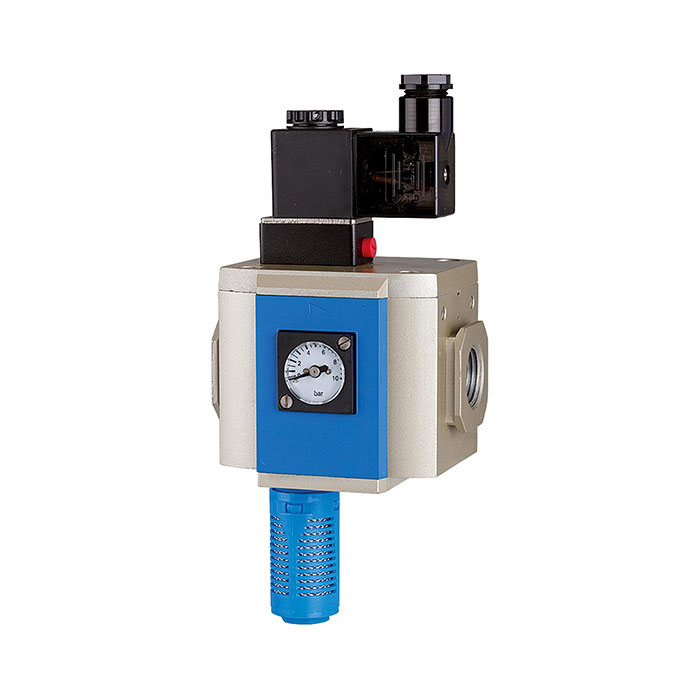

![[116353] RIEGLER 3/2-way start-up valve »G«, 24 V DC, Size 400, G 1/2](/web/image/product.template/201084/image_128/%5B116353%5D%20RIEGLER%203-2-way%20start-up%20valve%20%C2%BBG%C2%AB%2C%2024%20V%20DC%2C%20Size%20400%2C%20G%201-2?unique=3a5b2f7)
|
