RIEGLER 3/2-way start-up valve »G«, 230 V AC / 50 Hz, Size 400, G 1/2
Type number: GA 33.1
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
3/2-way start-up valve "G", 230 V AC / 50 Hz, with mounting bracket and silencer, BG 400, G 1/2, inlet pressure 2.5 - 9 bar
| Inlet pressure min. | 2.5 bar |
| Inlet pressure max. | 9 bar |
| Housing | Die-cast aluminum |
| Sealing material | NBR |
| Flow rate measurement | with P<sub>1</sub> = 8 bar, P<sub>2 </sub>= 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | G |
| Electrical connection | Device plug PG 9, form B |
| Medium temperature max. | 70 °C |
| Ambient temperature max. | 70 °C |
| Thread | G 1/2 |
| Flow rate | 4500 l/min |
| BG | 400 |
| A | 78 mm |
| B | 142.5 mm |
| C | 102 mm |
| D | 40.5 mm |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[116348] RIEGLER 3/2-way start-up valve »G«, 230 V AC / 50 Hz, Size 300, G 1/2](/web/image/product.template/201079/image_128/%5B116348%5D%20RIEGLER%203-2-way%20start-up%20valve%20%C2%BBG%C2%AB%2C%20230%20V%20AC%20-%2050%20Hz%2C%20Size%20300%2C%20G%201-2?unique=e8b12a9)
|
Type number: GA 13.1 |
80.81 € | |
![[116344] RIEGLER 3/2-way start-up valve »G«, 230 V AC / 50 Hz, Size 300, G 1/4](/web/image/product.template/201075/image_128/%5B116344%5D%20RIEGLER%203-2-way%20start-up%20valve%20%C2%BBG%C2%AB%2C%20230%20V%20AC%20-%2050%20Hz%2C%20Size%20300%2C%20G%201-4?unique=319504f)
|
Type number: GA 11.1 |
80.81 € | |

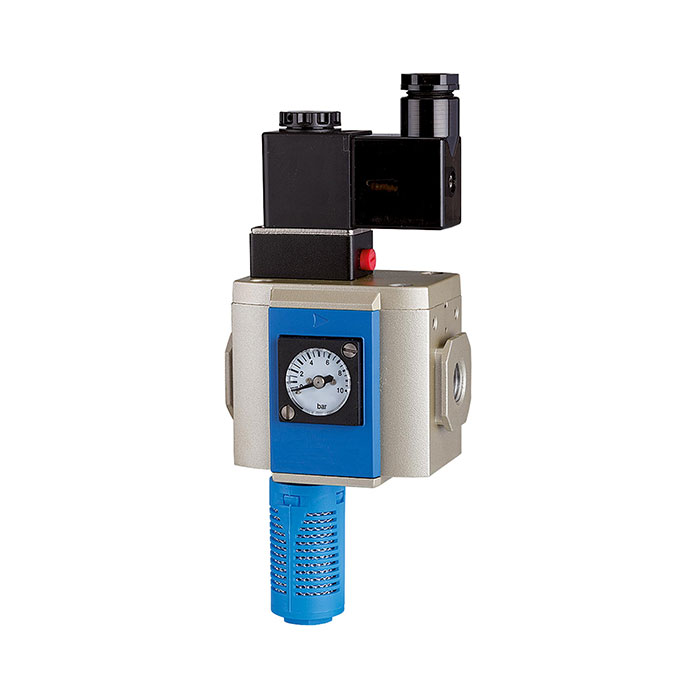

![[116346] RIEGLER 3/2-way start-up valve »G«, 230 V AC / 50 Hz, Size 300, G 3/8](/web/image/product.template/201077/image_128/%5B116346%5D%20RIEGLER%203-2-way%20start-up%20valve%20%C2%BBG%C2%AB%2C%20230%20V%20AC%20-%2050%20Hz%2C%20Size%20300%2C%20G%203-8?unique=4bc761b)
|
Type number: GA 12.1 |
80.81 € | |

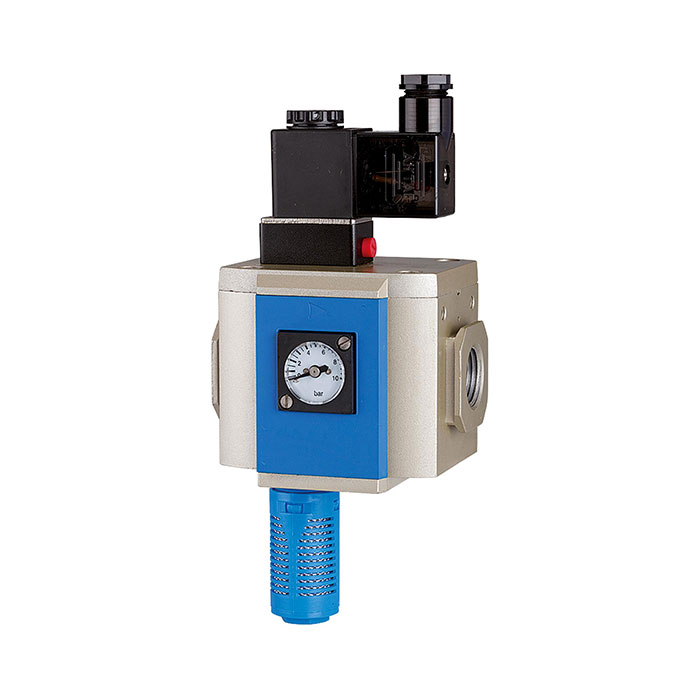

![[116350] RIEGLER 3/2-way start-up valve »G«, 230 V AC / 50 Hz, Size 400, G 3/8](/web/image/product.template/201081/image_128/%5B116350%5D%20RIEGLER%203-2-way%20start-up%20valve%20%C2%BBG%C2%AB%2C%20230%20V%20AC%20-%2050%20Hz%2C%20Size%20400%2C%20G%203-8?unique=dffde2b)
|
Type number: GA 32.1 |
99.88 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[116517] RIEGLER Connecting element with wall mounting, 1 hole, L-shaped bracket](/web/image/product.template/201217/image_128/%5B116517%5D%20RIEGLER%20Connecting%20element%20with%20wall%20mounting%2C%201%20hole%2C%20L-shaped%20bracket?unique=5ee6b97)
|
Type number: LB 400 |
9.12 € | |
![[116610] RIEGLER Connecting element with wall mounting, 2 holes, T-shaped bracket](/web/image/product.template/202328/image_128/%5B116610%5D%20RIEGLER%20Connecting%20element%20with%20wall%20mounting%2C%202%20holes%2C%20T-shaped%20bracket?unique=b6035b4)
|
Type number: TB 400 |
9.12 € | |
![[116614] RIEGLER Connecting element without wall mounting, U-shaped band, size 400](/web/image/product.template/202332/image_128/%5B116614%5D%20RIEGLER%20Connecting%20element%20without%20wall%20mounting%2C%20U-shaped%20band%2C%20size%20400?unique=ad17825)
|
Type number: UB 400 |
10.82 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

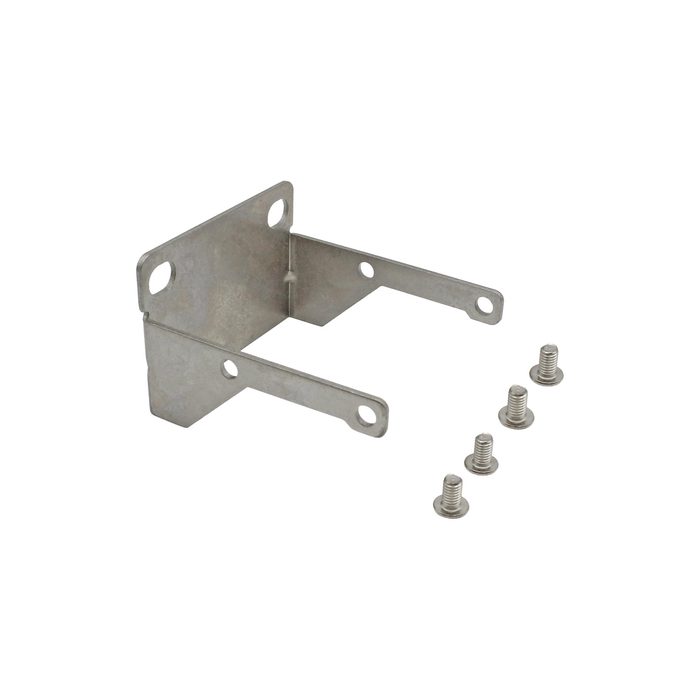

![[116485] RIEGLER Mounting bracket incl. 4 screws, for »G«/»GA«, size 400](/web/image/product.template/201212/image_128/%5B116485%5D%20RIEGLER%20Mounting%20bracket%20incl.%204%20screws%2C%20for%20%C2%BBG%C2%AB-%C2%BBGA%C2%AB%2C%20size%20400?unique=7c87662)
|
