RIEGLER 3/2-way blocking valve »G-mini«, Size 200, G 1/4
Type number: GK 06
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER 3/2-way shut-off valve "G-mini" made of die-cast aluminum, for compressed air preparation, G 1/4 - type GK 06
The RIEGLER 3/2-way shut-off valve "G-mini", BG 200, G 1/4, PE 0 - 9 bar adds additional functions to modular maintenance systems. The housing is made of die-cast aluminum with NBR seals. The maximum inlet pressure is 9 bar. Connection thread G 1/4 - suitable for common industry standards. The flow rate is 1750 l/min (at P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar). Seamless integration into existing systems.
Field of application
Typical areas of application: Modular compressed air treatment lines.
| Inlet pressure min. | 0 bar |
| Inlet pressure max. | 9 bar |
| Housing | Die-cast aluminum |
| Sealing material | NBR |
| Flow rate measurement | with P<sub>1</sub> = 8 bar, P<sub>2 </sub>= 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | G-mini |
| Medium temperature max. | 70 °C |
| Ambient temperature max. | 70 °C |
| Gag | Plastic |
| Thread | G 1/4 |
| Flow rate | 1750 l/min |
| BG | 200 |
| A | 38 mm |
| B | 89 mm |
| C | 52.5 mm |
| D | 36.5 mm |
| Vent connection | G 1/4 |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

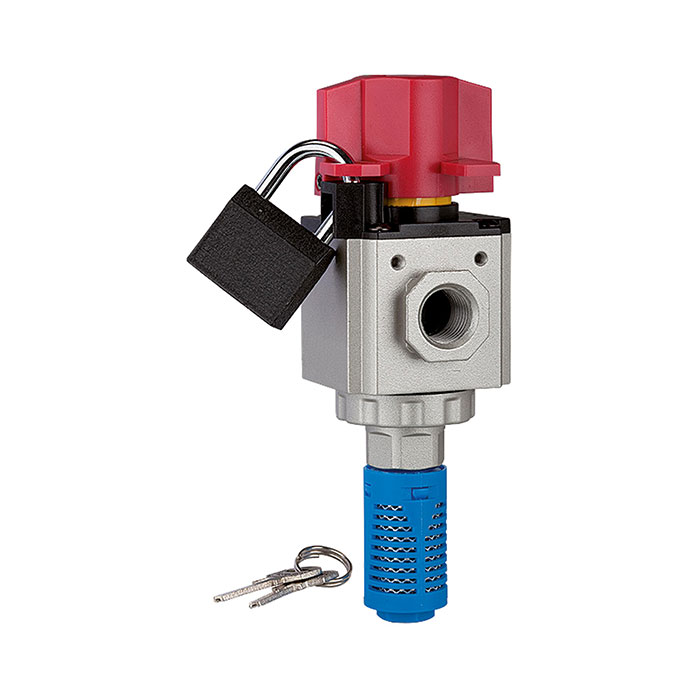

![[116431] RIEGLER 3/2-way blocking valve »G-mini«, Size 200, G 1/8](/web/image/product.template/201162/image_128/%5B116431%5D%20RIEGLER%203-2-way%20blocking%20valve%20%C2%BBG-mini%C2%AB%2C%20Size%20200%2C%20G%201-8?unique=903945a)
|
Type number: GK 05 |
23.48 € | |

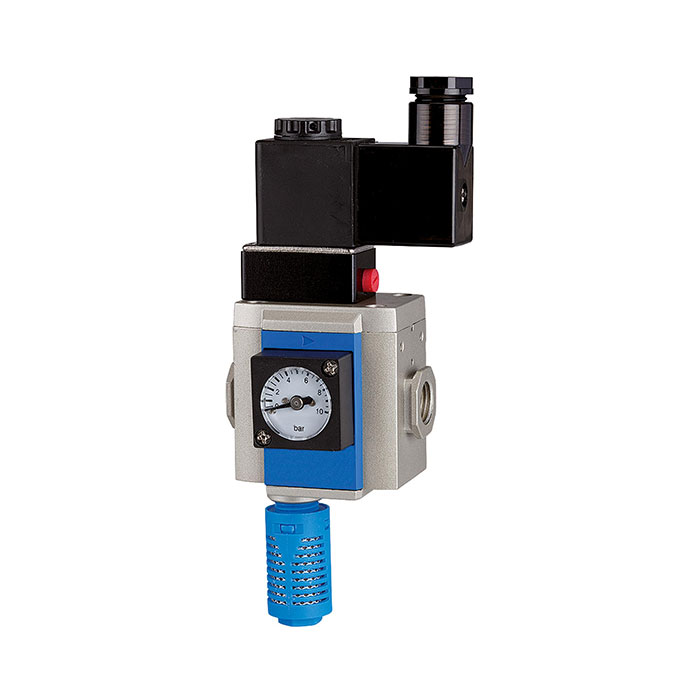

![[116342] RIEGLER 3/2-way start-up valve »G-mini«, 230 V AC/50 Hz, Size 200, G 1/4](/web/image/product.template/201073/image_128/%5B116342%5D%20RIEGLER%203-2-way%20start-up%20valve%20%C2%BBG-mini%C2%AB%2C%20230%20V%20AC-50%20Hz%2C%20Size%20200%2C%20G%201-4?unique=223dc76)
|
Type number: GA 06.1 |
65.32 € | |
![[116340] RIEGLER 3/2-way start-up valve »G-mini«, 230 V AC/50 Hz, Size 200, G 1/8](/web/image/product.template/201071/image_128/%5B116340%5D%20RIEGLER%203-2-way%20start-up%20valve%20%C2%BBG-mini%C2%AB%2C%20230%20V%20AC-50%20Hz%2C%20Size%20200%2C%20G%201-8?unique=658b4b9)
|
Type number: GA 05.1 |
65.32 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

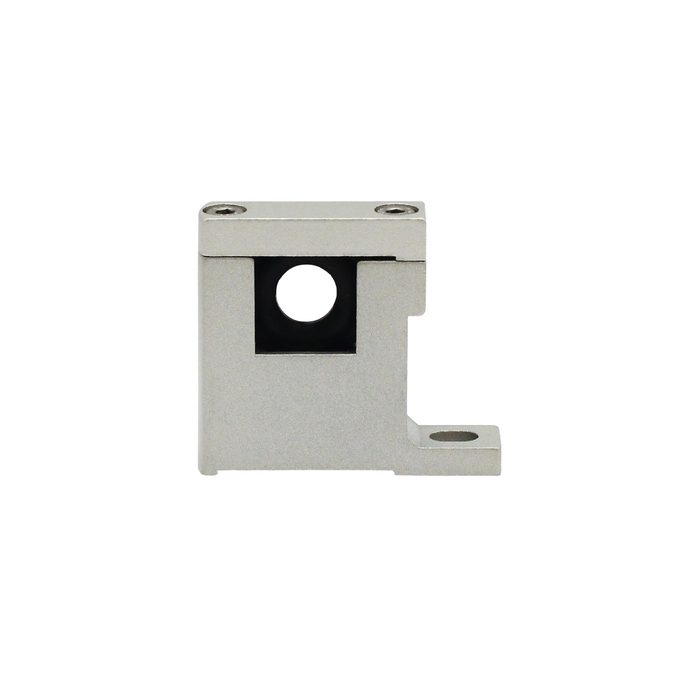

![[116515] RIEGLER Connecting element with wall mounting, 1 hole, L-shaped bracket](/web/image/product.template/201215/image_128/%5B116515%5D%20RIEGLER%20Connecting%20element%20with%20wall%20mounting%2C%201%20hole%2C%20L-shaped%20bracket?unique=8d80ff2)
|
Type number: LB 200 |
5.87 € | |

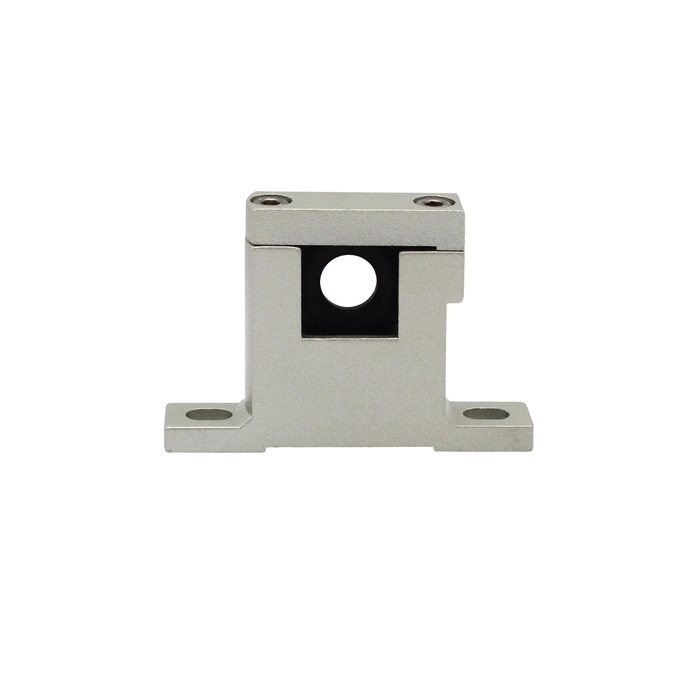

![[116608] RIEGLER Connecting element with wall mounting, 2 holes, T-shaped bracket](/web/image/product.template/202326/image_128/%5B116608%5D%20RIEGLER%20Connecting%20element%20with%20wall%20mounting%2C%202%20holes%2C%20T-shaped%20bracket?unique=0a89912)
|
Type number: TB 200 |
5.87 € | |

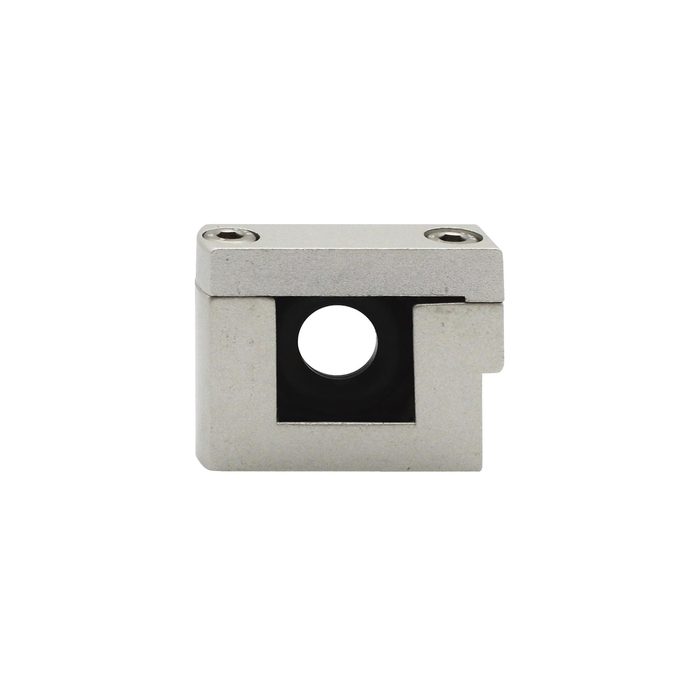

![[116612] RIEGLER Connecting element without wall mounting, with U-shaped band](/web/image/product.template/202330/image_128/%5B116612%5D%20RIEGLER%20Connecting%20element%20without%20wall%20mounting%2C%20with%20U-shaped%20band?unique=17ad354)
|
