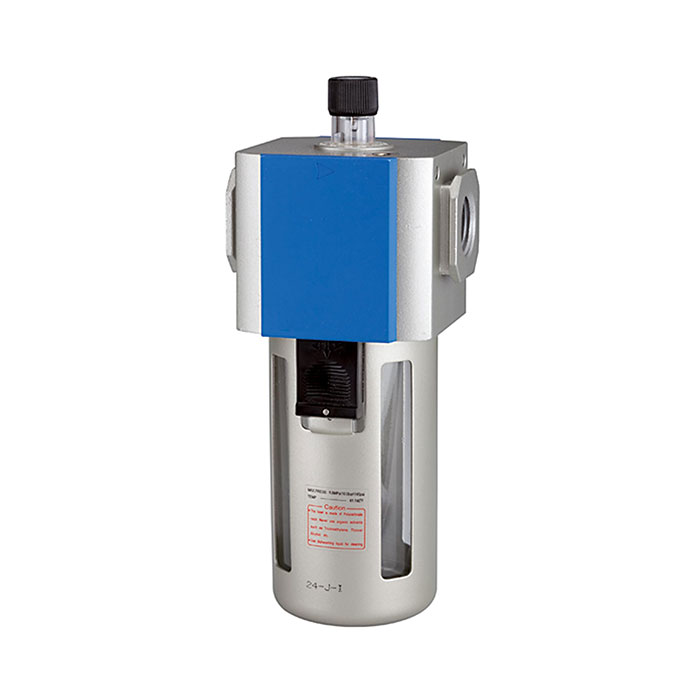

RIEGLER Mist oiler »G«, PC container, Protective cage, Size 400, G 3/8
Type number: GL 32
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Mist oiler »G«, PC container, Protective cage, Mounting bracket, Size 400, G 3/8, Input pres. max. 10 bar, Working pres. 0.5-9 bar
| Inlet pressure max. | 10 bar |
| Housing | Die-cast aluminum |
| Sealing material | NBR |
| Flow rate measurement | with P<sub>1</sub> = 8 bar, P<sub>2 </sub>= 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | G |
| Container | Polycarbonate container with protective cage |
| Dropper attachment | Brass/POM |
| Medium temperature max. | 70 °C |
| Ambient temperature max. | 70 °C |
| Spring cover | POM |
| Working pressure min. | 0.5 bar |
| Working pressure max. | 9 bar |
| Thread | G 3/8 |
| Flow rate | 7500 l/min |
| BG | 400 |
| A | 68 mm |
| B | 190 mm |
| C | 48 mm |
| D | 142 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Class name | EASY |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

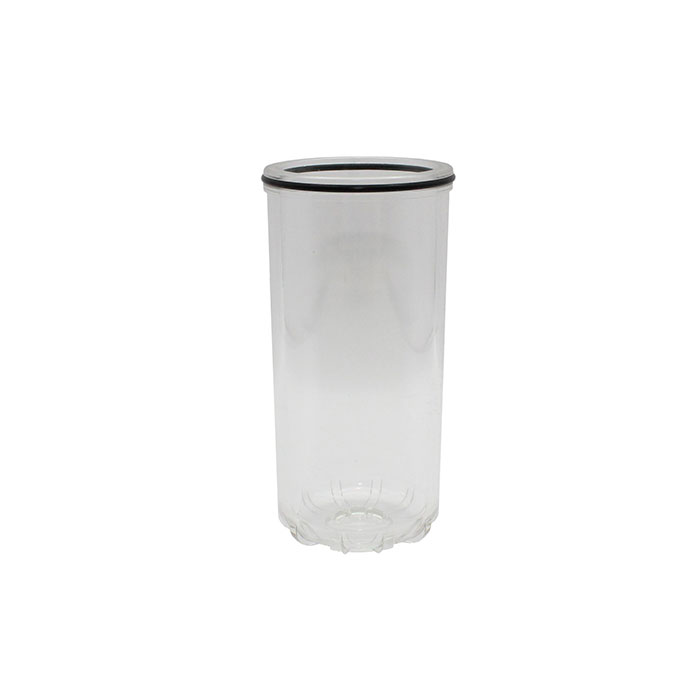

![[116447] RIEGLER Polycarbonate container, for mist oiler »G«, Size 400](/web/image/product.template/201178/image_128/%5B116447%5D%20RIEGLER%20Polycarbonate%20container%2C%20for%20mist%20oiler%20%C2%BBG%C2%AB%2C%20Size%20400?unique=139126d)
|
Type number: GL 32 200 |
10.20 € | |
