RIEGLER Distributor »G-mini«, with 2 outlets, Size 200, G 1/4
Type number: GZ 06
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Verteiler »G-mini«, mit 2 Abgängen, BG 200, G 1/4, Eingangsdruck 0 - 9 bar, Mediums-/Umgebungstemperatur max. 70 °C
| Inlet pressure min. | 0 bar |
| Inlet pressure max. | 9 bar |
| Housing | Die-cast aluminum |
| Series | G-mini |
| Medium temperature max. | 70 °C |
| Ambient temperature max. | 70 °C |
| Thread | G 1/4 |
| BG | 200 |
| A | 28.5 mm |
| B | 36 mm |
| C | 18 mm |
| D | 18 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

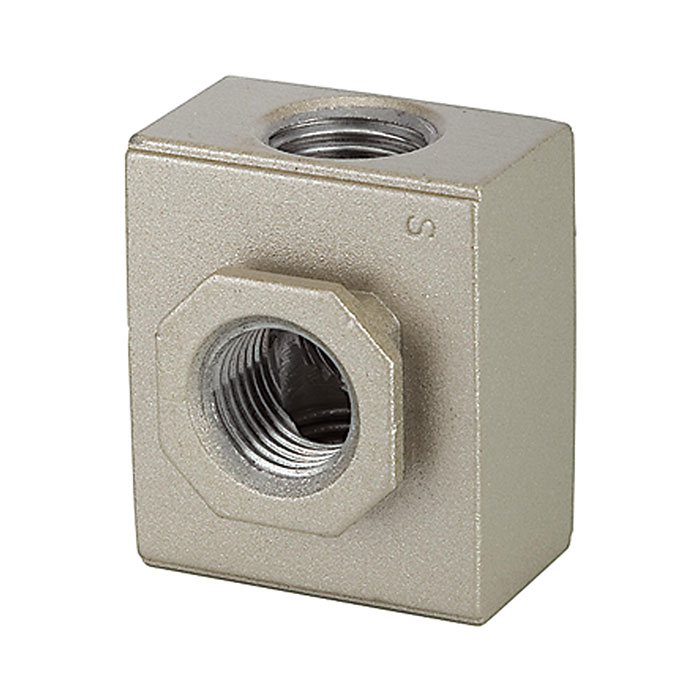

![[116472] RIEGLER Distributor »G-mini«, with 2 outlets, Size 200, G 1/8](/web/image/product.template/201199/image_128/%5B116472%5D%20RIEGLER%20Distributor%20%C2%BBG-mini%C2%AB%2C%20with%202%20outlets%2C%20Size%20200%2C%20G%201-8?unique=f979215)
|
Type number: GZ 05 |
11.71 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

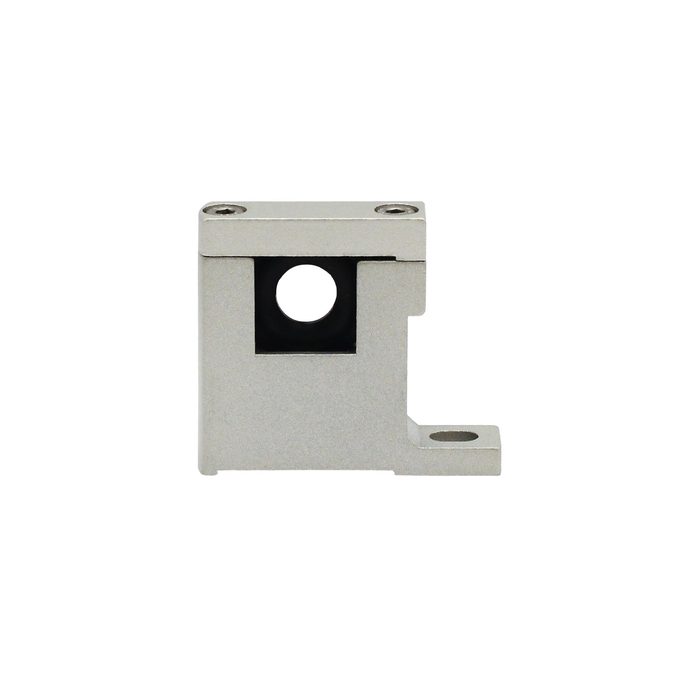

![[116515] RIEGLER Connecting element with wall mounting, 1 hole, L-shaped bracket](/web/image/product.template/201215/image_128/%5B116515%5D%20RIEGLER%20Connecting%20element%20with%20wall%20mounting%2C%201%20hole%2C%20L-shaped%20bracket?unique=2348795)
|
Type number: LB 200 |
5.90 € | |

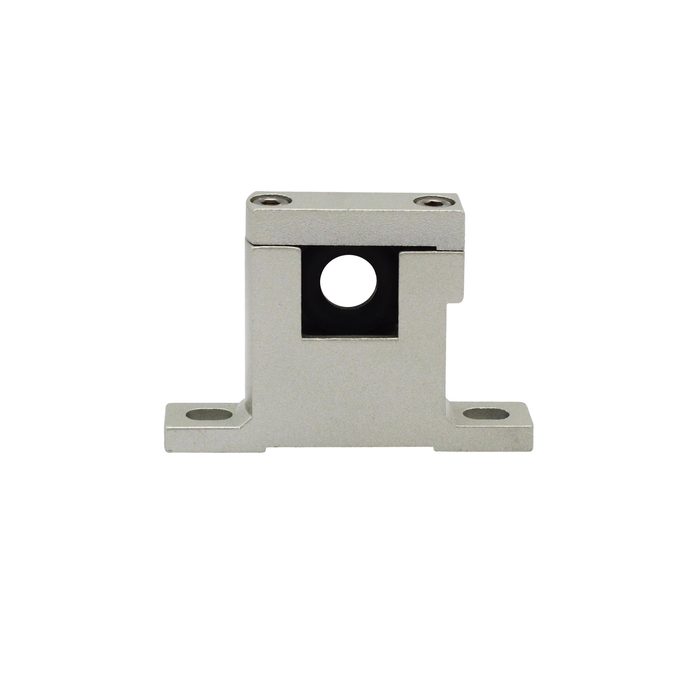

![[116608] RIEGLER Connecting element with wall mounting, 2 holes, T-shaped bracket](/web/image/product.template/202326/image_128/%5B116608%5D%20RIEGLER%20Connecting%20element%20with%20wall%20mounting%2C%202%20holes%2C%20T-shaped%20bracket?unique=9510a00)
|
Type number: TB 200 |
5.90 € | |

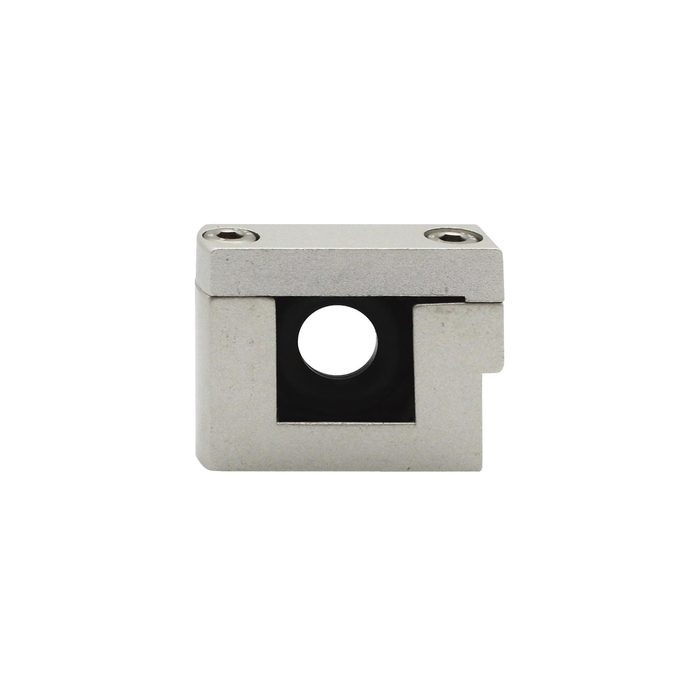

![[116612] RIEGLER Connecting element without wall mounting, with U-shaped band](/web/image/product.template/202330/image_128/%5B116612%5D%20RIEGLER%20Connecting%20element%20without%20wall%20mounting%2C%20with%20U-shaped%20band?unique=4faefe0)
|
Type number: UB 200 |
7.02 € | |
