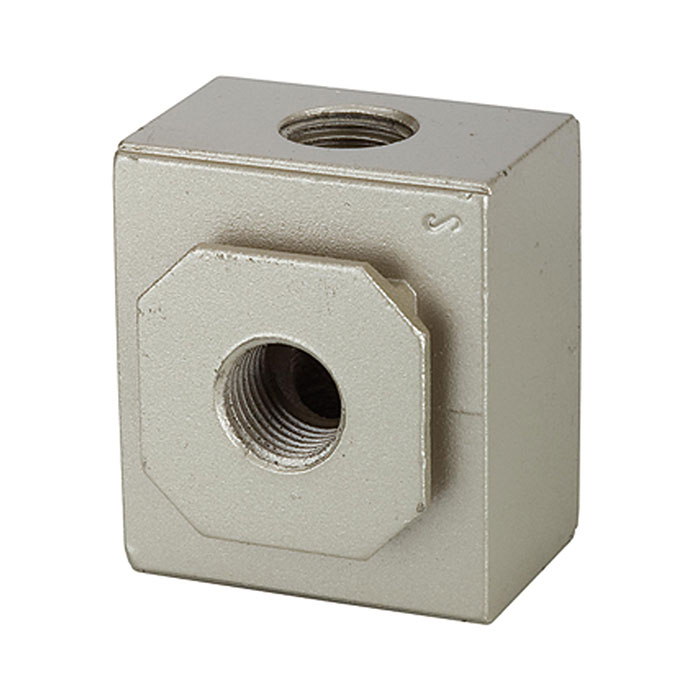

RIEGLER Distributor »G«, with 2 outlets, Size 300, G 3/8
Type number: GZ 12
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Distributor "G" made of die-cast aluminum, for compressed air preparation, G 3/8 - type GZ 12
The RIEGLER manifold "G", with 2 outlets, BG 300, G 3/8, PE 0 - 9 bar expands maintenance systems modularly with additional functions. The housing is made of die-cast aluminum with NBR seals. The maximum inlet pressure is 9 bar. Connection thread G 3/8 - suitable for common industry standards. Seamless integration into existing systems.
Field of application
Typical areas of application: Modular compressed air treatment lines.
| Inlet pressure min. | 0 bar |
| Inlet pressure max. | 9 bar |
| Housing | Die-cast aluminum |
| Sealing material | NBR |
| Series | G |
| Medium temperature max. | 70 °C |
| Ambient temperature max. | 70 °C |
| Thread | G 3/8 |
| BG | 300 |
| A | 35 mm |
| B | 44 mm |
| C | 22 mm |
| D | 22 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[116474] RIEGLER Distributor »G«, with 2 outlets, Size 300, G 1/4](/web/image/product.template/201201/image_128/%5B116474%5D%20RIEGLER%20Distributor%20%C2%BBG%C2%AB%2C%20with%202%20outlets%2C%20Size%20300%2C%20G%201-4?unique=c5ca166)
|
Type number: GZ 11 |
18.22 € | |
![[116477] RIEGLER Distributor »G«, with 2 outlets, Size 400, G 1/2](/web/image/product.template/201204/image_128/%5B116477%5D%20RIEGLER%20Distributor%20%C2%BBG%C2%AB%2C%20with%202%20outlets%2C%20Size%20400%2C%20G%201-2?unique=8864e68)
|
Type number: GZ 33 |
22.09 € | |

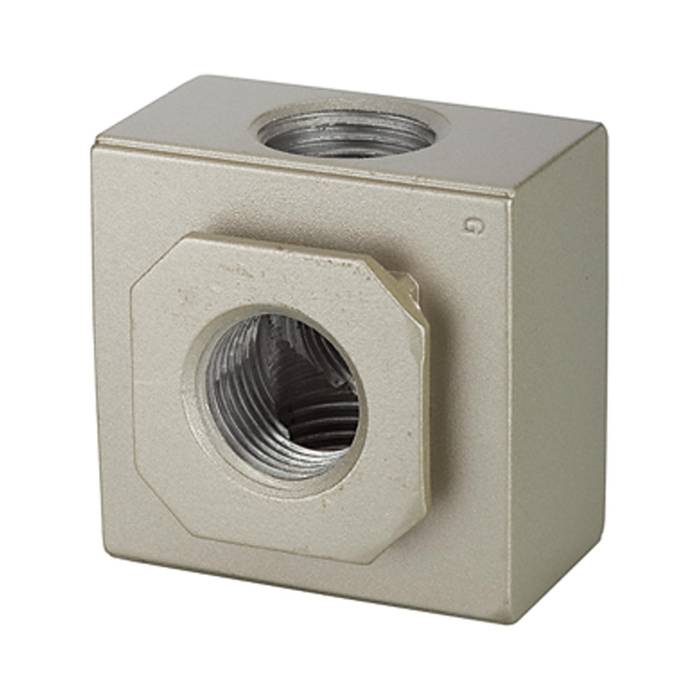

![[116476] RIEGLER Distributor »G«, with 2 outlets, Size 400, G 3/8](/web/image/product.template/201203/image_128/%5B116476%5D%20RIEGLER%20Distributor%20%C2%BBG%C2%AB%2C%20with%202%20outlets%2C%20Size%20400%2C%20G%203-8?unique=a7378ac)
|
Type number: GZ 32 |
22.09 € | |
![[116479] RIEGLER Distributor »G«, with 2 outlets, Size 600, G 1](/web/image/product.template/201206/image_128/%5B116479%5D%20RIEGLER%20Distributor%20%C2%BBG%C2%AB%2C%20with%202%20outlets%2C%20Size%20600%2C%20G%201?unique=ee93a22)
|
Type number: GZ 55 |
58.55 € | |

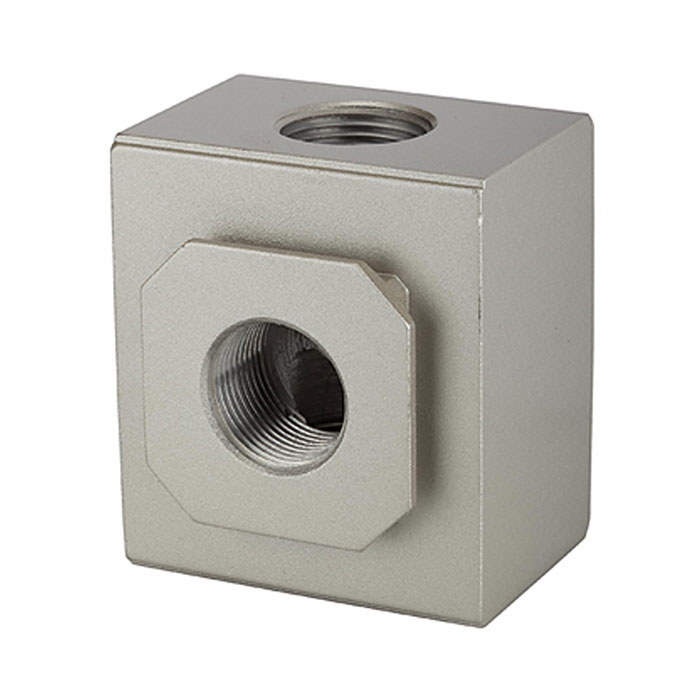

![[116478] RIEGLER Distributor »G«, with 2 outlets, Size 600, G 3/4](/web/image/product.template/201205/image_128/%5B116478%5D%20RIEGLER%20Distributor%20%C2%BBG%C2%AB%2C%20with%202%20outlets%2C%20Size%20600%2C%20G%203-4?unique=401f43d)
|
