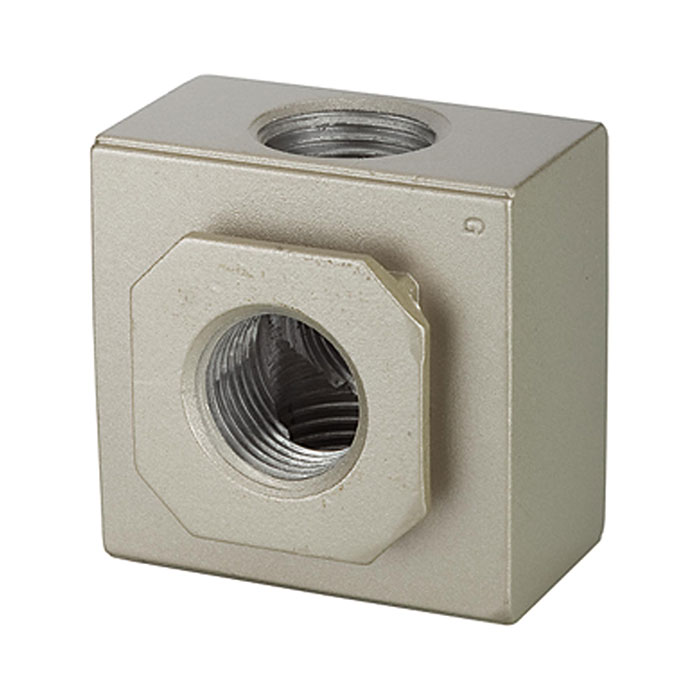

RIEGLER Distributor »G«, with 2 outlets, Size 400, G 1/2
Type number: GZ 33
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Verteiler »G«, mit 2 Abgängen, BG 400, G 1/2, Eingangsdruck 0 - 9 bar, Mediums-/Umgebungstemperatur max. 70 °C
| Inlet pressure min. | 0 bar |
| Inlet pressure max. | 9 bar |
| Housing | Die-cast aluminum |
| Sealing material | NBR |
| Series | G |
| Medium temperature max. | 70 °C |
| Ambient temperature max. | 70 °C |
| Thread | G 1/2 |
| BG | 400 |
| A | 42 mm |
| B | 52 mm |
| C | 26 mm |
| D | 26 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[116474] RIEGLER Distributor »G«, with 2 outlets, Size 300, G 1/4](/web/image/product.template/201201/image_128/%5B116474%5D%20RIEGLER%20Distributor%20%C2%BBG%C2%AB%2C%20with%202%20outlets%2C%20Size%20300%2C%20G%201-4?unique=ecff591)
|
Type number: GZ 11 |
18.22 € | |

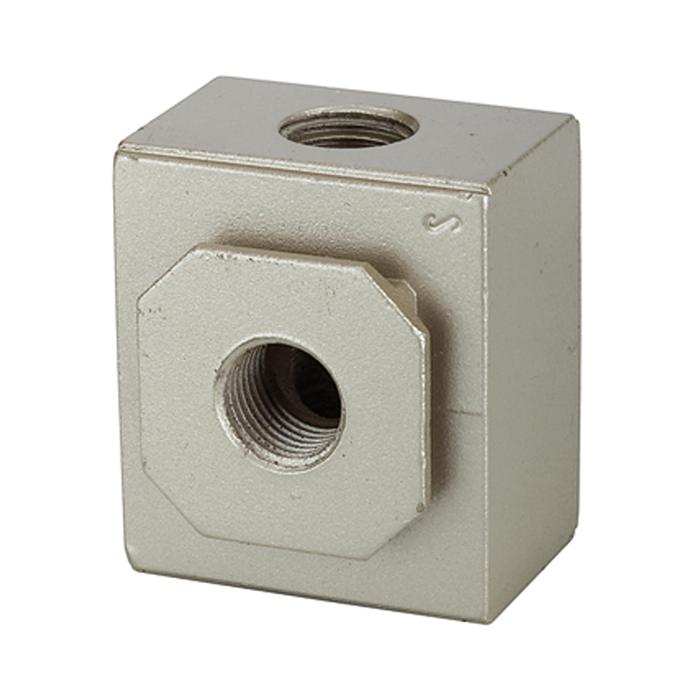

![[116475] RIEGLER Distributor »G«, with 2 outlets, Size 300, G 3/8](/web/image/product.template/201202/image_128/%5B116475%5D%20RIEGLER%20Distributor%20%C2%BBG%C2%AB%2C%20with%202%20outlets%2C%20Size%20300%2C%20G%203-8?unique=95a6c8b)
|
Type number: GZ 12 |
18.22 € | |
![[116476] RIEGLER Distributor »G«, with 2 outlets, Size 400, G 3/8](/web/image/product.template/201203/image_128/%5B116476%5D%20RIEGLER%20Distributor%20%C2%BBG%C2%AB%2C%20with%202%20outlets%2C%20Size%20400%2C%20G%203-8?unique=9f6a3ec)
|
Type number: GZ 32 |
22.09 € | |
![[116479] RIEGLER Distributor »G«, with 2 outlets, Size 600, G 1](/web/image/product.template/201206/image_128/%5B116479%5D%20RIEGLER%20Distributor%20%C2%BBG%C2%AB%2C%20with%202%20outlets%2C%20Size%20600%2C%20G%201?unique=e9504a5)
|
Type number: GZ 55 |
58.55 € | |
![[116478] RIEGLER Distributor »G«, with 2 outlets, Size 600, G 3/4](/web/image/product.template/201205/image_128/%5B116478%5D%20RIEGLER%20Distributor%20%C2%BBG%C2%AB%2C%20with%202%20outlets%2C%20Size%20600%2C%20G%203-4?unique=e08aca5)
|
Type number: GZ 34 |
58.55 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

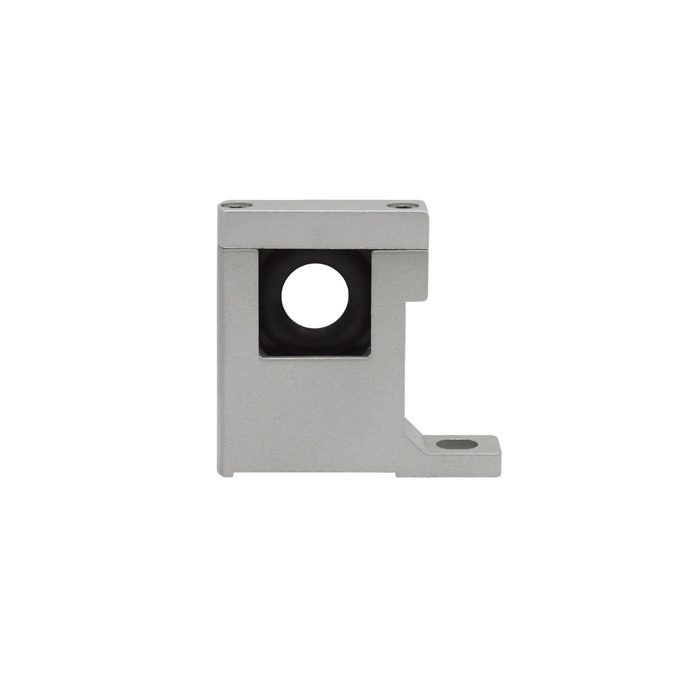

![[116517] RIEGLER Connecting element with wall mounting, 1 hole, L-shaped bracket](/web/image/product.template/201217/image_128/%5B116517%5D%20RIEGLER%20Connecting%20element%20with%20wall%20mounting%2C%201%20hole%2C%20L-shaped%20bracket?unique=fc12336)
|
Type number: LB 400 |
9.06 € | |

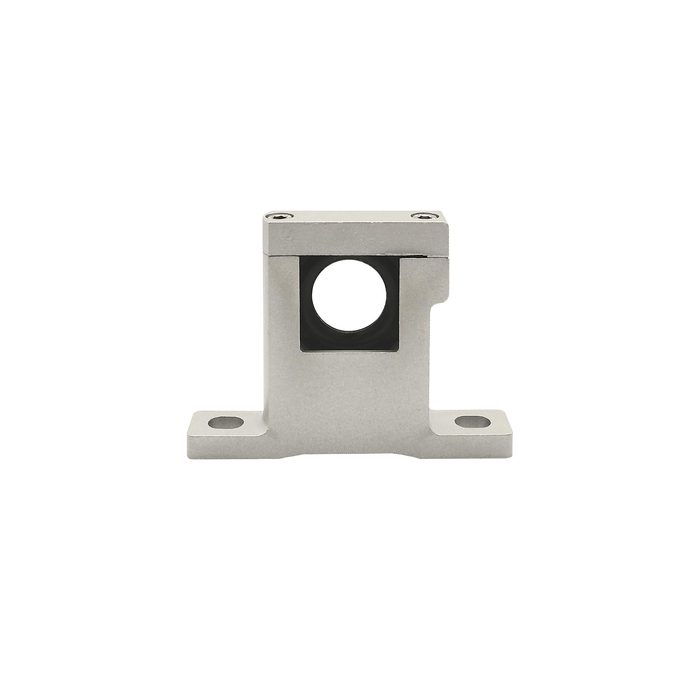

![[116610] RIEGLER Connecting element with wall mounting, 2 holes, T-shaped bracket](/web/image/product.template/202328/image_128/%5B116610%5D%20RIEGLER%20Connecting%20element%20with%20wall%20mounting%2C%202%20holes%2C%20T-shaped%20bracket?unique=f08f5fe)
|
Type number: TB 400 |
9.06 € | |

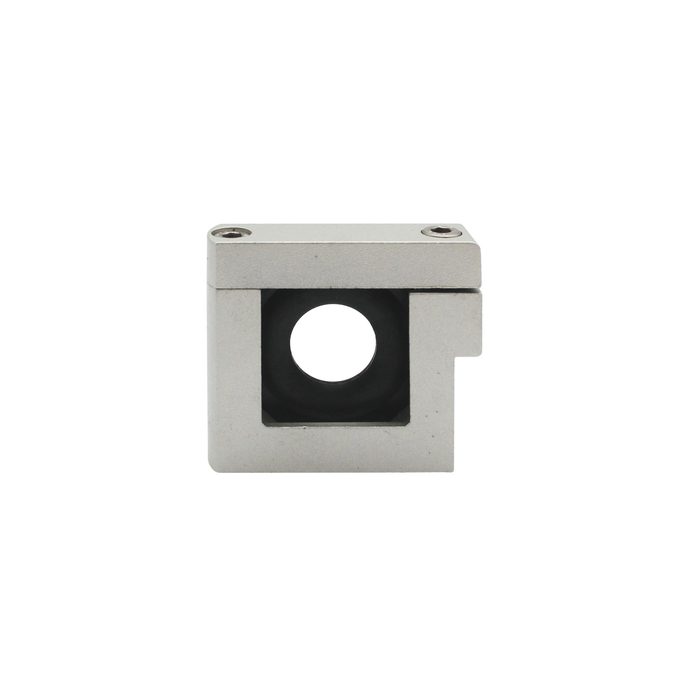

![[116614] RIEGLER Connecting element without wall mounting, U-shaped band, size 400](/web/image/product.template/202332/image_128/%5B116614%5D%20RIEGLER%20Connecting%20element%20without%20wall%20mounting%2C%20U-shaped%20band%2C%20size%20400?unique=988fae1)
|
Type number: UB 400 |
10.76 € | |
