RIEGLER Distributor »G«, with 2 outlets, Size 600, G 1

Price:

51.16 €
    ​
English (US)
  2. Shop
  3. System Extensions
  4. RIEGLER Distributor »G«, with 2 outlets, Size 600, G 1

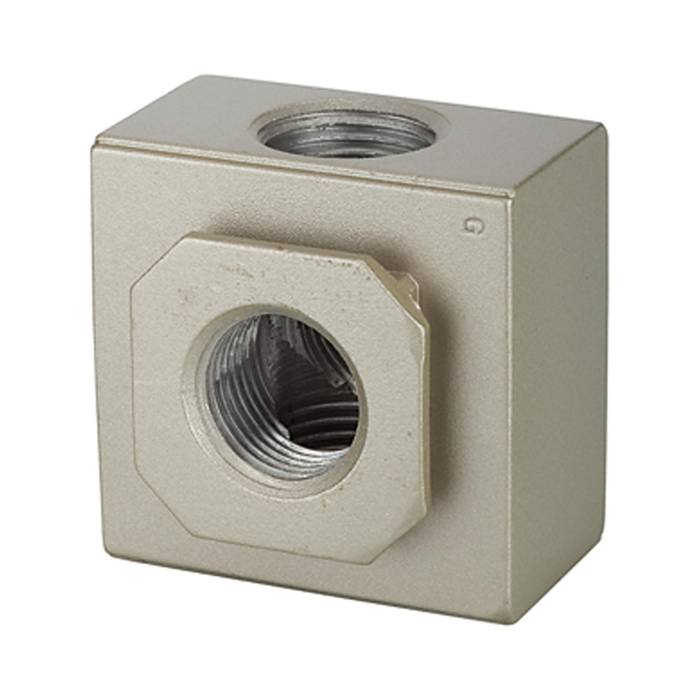

RIEGLER Distributor »G«, with 2 outlets, Size 400, G 3/8
RIEGLER Distributor »G«, with 2 outlets, Size 400, G 3/8
19.30 € 19.30 €

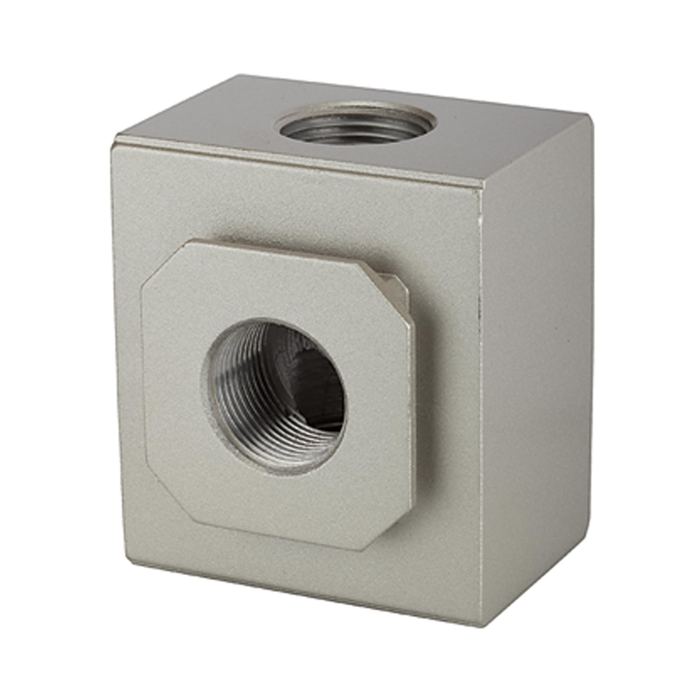

RIEGLER Distributor »G«, with 2 outlets, Size 600, G 3/4
RIEGLER Distributor »G«, with 2 outlets, Size 600, G 3/4
51.16 € 51.16 €

RIEGLER Distributor »G«, with 2 outlets, Size 600, G 1

https://www.filcom-technik.de/web/image/product.template/201206/image_1920?unique=6ed6f93

Type number: GZ 55

EAN: 4047322308908

51.16 € 51.160000000000004 EUR 51.16 € VAT Included

71.65 € VAT Included

    This combination does not exist.

    from 110 € free shipping Details shipping costs
    Contact Us

    Product no. :

    116479

    EAN :

    4047322308908

    Category :

    System Extensions

    Weight :

    0.50 kg

    Manifold "G", with 2 outlets, BG 600, G 1, inlet pressure 0 - 9 bar, medium/ambient temperature max. 70 °C

    Inlet pressure min. 0 bar
    Inlet pressure max. 9 bar
    Housing Die-cast aluminum
    Sealing material NBR
    Series G
    Medium temperature max. 70 °C
    Ambient temperature max. 70 °C
    Thread G 1
    BG 600
    A 60 mm
    B 76 mm
    C 38 mm
    D 38 mm
    REACH SVHC1 Substance Name no
    CAS No. SVHC 1 none CAS No.
    RoHS material information RoHS compliant
    RoHS Directive 2011/65/EU, 2015/863/EU, 2018/741/EU
    RoHS Article of the Directive Article 4, paragraph 1, Annex 3
    Share of SVHC substance in % for RoHS 0
    Exception no exception
    REACH Info no SVHC substance contained
    Share of SVHC SCIP no SVHC substance
    Proportion of SVHC substance in SCIP no SVHC substance contained
    Class name EASY
