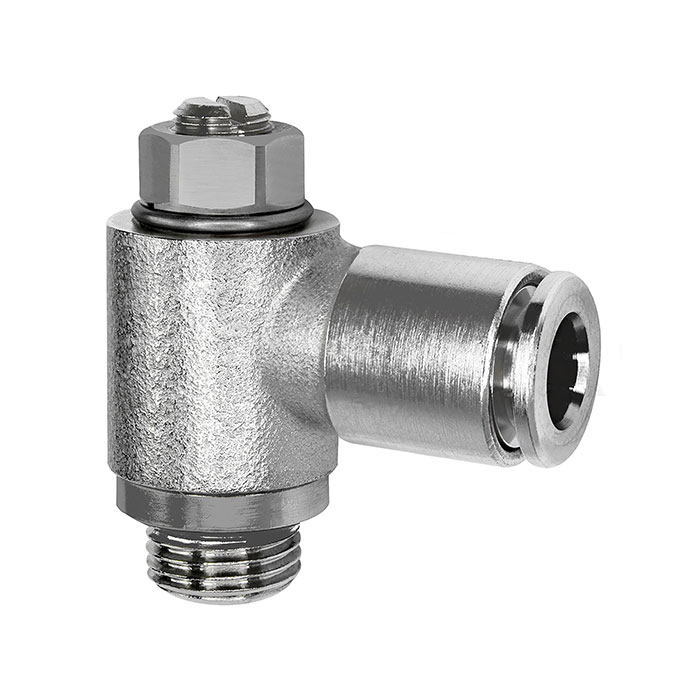

RIEGLER Thredtle check valve, exhaust air, G 3/8, plug connection 10
Type number: 343.038-10-D
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
116502EAN :
4047322716307Category :
Unidirectional Flow Control ValvesWeight :
0.08 kgRIEGLER Throttle check valve for pneumatic control, max. 10 bar, G 3/8 - Type 343.038-10-D
The RIEGLER throttle check valve, exhaust air, G 3/8, plug connection 10 regulates the speed of pneumatic drives or blocks backflow. with NBR seals. The operating pressure range is 0 bar to 10 bar. The temperature range is between -20 °C and 80 °C. G 3/8 connection thread - suitable for common industry standards. Infinitely variable speed control for smooth movement sequences.
Field of application
Typical areas of application: Speed control of pneumatic cylinders.
| Connection type | Connection Plug connection |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Share of SVHC substance in % for RoHS | 0.04 |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Execution | adjustable with slotted screw |
| Exception | 6c |
| B | 50 mm |
| Construction method | rotatable |
| Max. operating pressure | 10 bar |
| Operating pressure min. | 0 bar |
| C | 29 mm |
| CAS No. SVHC 1 | 7439-92-1 |
| Sealing material | NBR |
| Function | Exhaust air throttling (C) |
| for hose | 10 mm |
| Thread | G 3/8 |
| Base body | Nickel-plated brass |
| Class name | PLUS |
| Material identification | CW614N, CW617N |
| REACH Info | contains SVHC substance |
| REACH SVHC1 Substance Name | Lead |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS material information | RoHS compliant |
| Silicone-free | Yes |
| SW | 14 mm |
| Temperature range max. | 80 °C |
| Temperature range min. | -20 °C |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

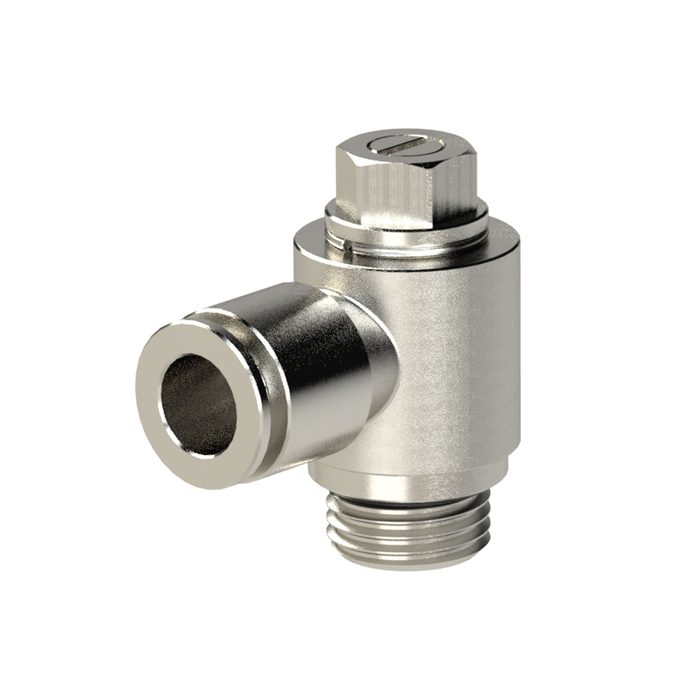

![[116339] RIEGLER Thredtle check valve, exhaust air, G 1/4, plug connection 10](/web/image/product.template/267750/image_128/%5B116339%5D%20RIEGLER%20Thredtle%20check%20valve%2C%20exhaust%20air%2C%20G%201-4%2C%20plug%20connection%2010?unique=ed0aa0b)
|
