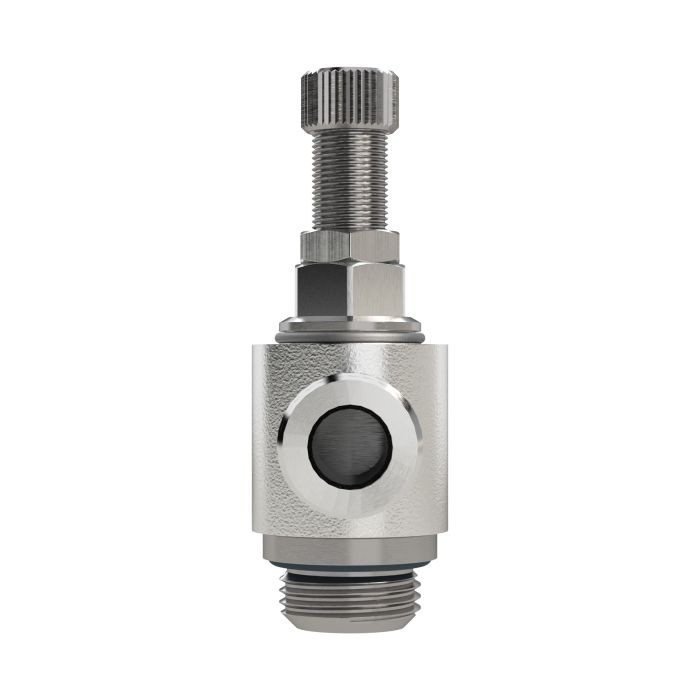

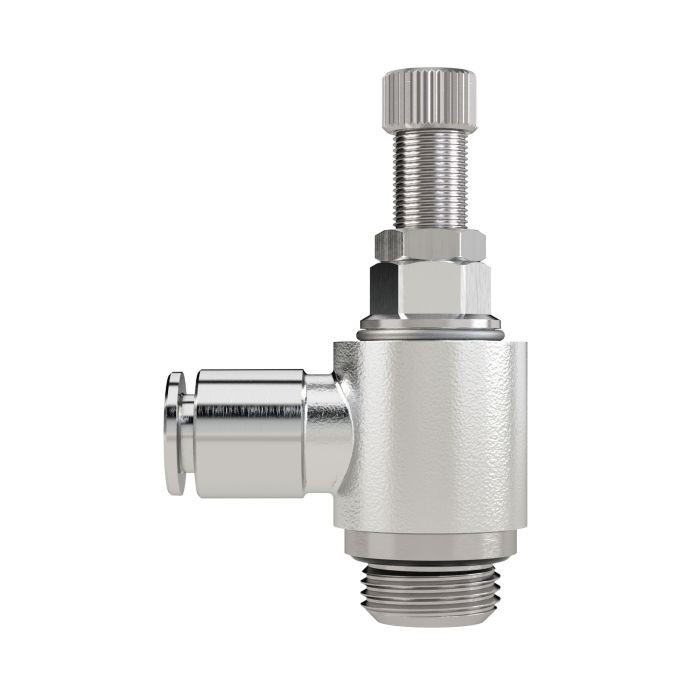

RIEGLER Thredtle check valve, exhaust air, G 1/4, plug connection 8
Type number: 340.014-8-D
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
116831EAN :
4047322716376Category :
Unidirectional Flow Control ValvesWeight :
0.05 kgRIEGLER Throttle check valve for pneumatic control, max. 10 bar, G 1/4 - Type 340.014-8-D
The RIEGLER throttle check valve, exhaust air, G 1/4, plug connection 8 regulates the speed of pneumatic actuators or blocks backflow. with NBR seals. The operating pressure range is 0 bar to 10 bar. The temperature range is between -20 °C and 80 °C. G 1/4 connection thread - suitable for common industry standards. Infinitely variable speed control for smooth movement sequences.
Field of application
Typical areas of application: Speed control of pneumatic cylinders.
| Connection type | Connection Plug connection |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Share of SVHC substance in % for RoHS | 0.04 |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Execution | adjustable with knurled screw |
| Exception | 6c |
| B | 50.8 mm |
| Construction method | rotatable |
| Max. operating pressure | 10 bar |
| Operating pressure min. | 0 bar |
| C | 24.5 mm |
| CAS No. SVHC 1 | 7439-92-1 |
| Sealing material | NBR |

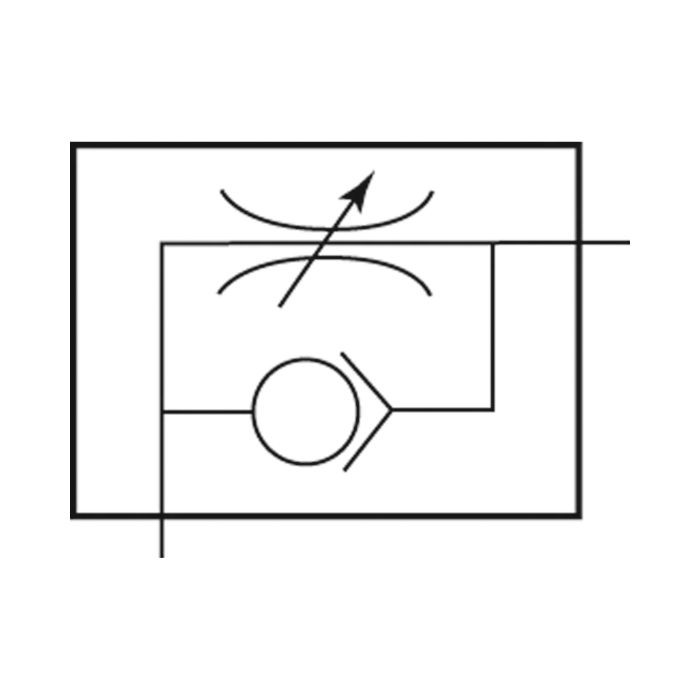

| Function | Exhaust air throttling (C) |
| for hose | 8 mm |
| Thread | G 1/4 |
| Base body | Nickel-plated brass |
| Class name | PLUS |
| Material identification | CW614N, CW617N |
| REACH Info | contains SVHC substance |
| REACH SVHC1 Substance Name | Lead |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS material information | RoHS compliant |
| Silicone-free | Yes |
| SW | 10 mm |
| Temperature range max. | 80 °C |
| Temperature range min. | -20 °C |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[116832] RIEGLER Thredtle check valve, exhaust air, G 1/4, plug connection 10](/web/image/product.template/267797/image_128/%5B116832%5D%20RIEGLER%20Thredtle%20check%20valve%2C%20exhaust%20air%2C%20G%201-4%2C%20plug%20connection%2010?unique=a8f9b4f)
|
Type number: 340.014-10-D |
13.84 € | |

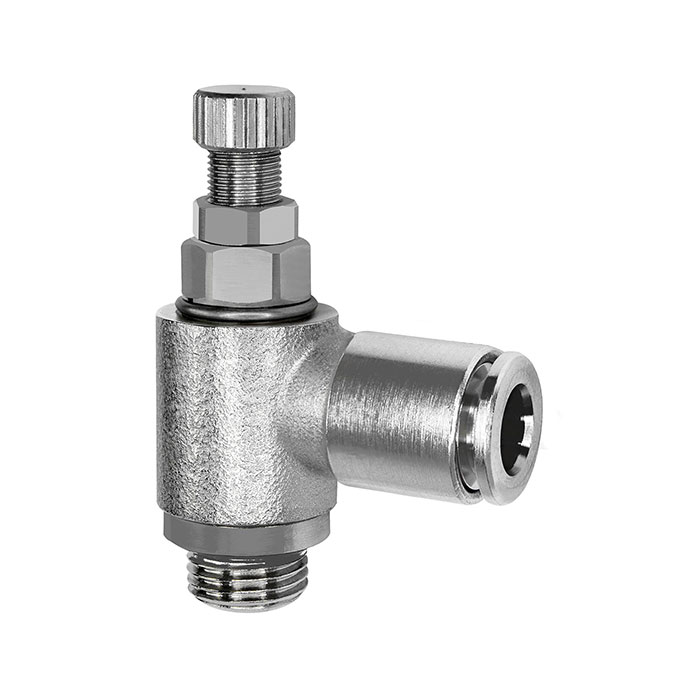

![[116820] RIEGLER Thredtle check valve, exhaust air, G 1/4, plug connection 6](/web/image/product.template/267791/image_128/%5B116820%5D%20RIEGLER%20Thredtle%20check%20valve%2C%20exhaust%20air%2C%20G%201-4%2C%20plug%20connection%206?unique=7bd346b)
|
Type number: 340.014-6-D |
13.24 € | |
![[116799] RIEGLER Thredtle check valve, exhaust air, G 1/8, plug connection 4](/web/image/product.template/267786/image_128/%5B116799%5D%20RIEGLER%20Thredtle%20check%20valve%2C%20exhaust%20air%2C%20G%201-8%2C%20plug%20connection%204?unique=208a356)
|
Type number: 340.018-4-D |
13.01 € | |
![[116807] RIEGLER Thredtle check valve, exhaust air, G 1/8, plug connection 6](/web/image/product.template/267768/image_128/%5B116807%5D%20RIEGLER%20Thredtle%20check%20valve%2C%20exhaust%20air%2C%20G%201-8%2C%20plug%20connection%206?unique=a79547c)
|
Type number: 340.018-6-D |
12.19 € | |
![[116739] RIEGLER Thredtle check valve, exhaust air, M5, plug connection 4](/web/image/product.template/267769/image_128/%5B116739%5D%20RIEGLER%20Thredtle%20check%20valve%2C%20exhaust%20air%2C%20M5%2C%20plug%20connection%204?unique=f3988c5)
|
Type number: 340.005-4-D |
12.29 € | |
![[116744] RIEGLER Thredtle check valve, exhaust air, M5, plug connection 6](/web/image/product.template/267770/image_128/%5B116744%5D%20RIEGLER%20Thredtle%20check%20valve%2C%20exhaust%20air%2C%20M5%2C%20plug%20connection%206?unique=def9507)
|
Type number: 340.005-6-D |
12.29 € | |
![[116810] RIEGLER Throttle check valve, exhaust air, G 1/8, push-fit connection 8](/web/image/product.template/274693/image_128/%5B116810%5D%20RIEGLER%20Throttle%20check%20valve%2C%20exhaust%20air%2C%20G%201-8%2C%20push-fit%20connection%208?unique=1486a20)
|
Type number: 340.018-8-D |
12.19 € | |
![[116834] RIEGLER Throttle check valve, exhaust air, G 3/8, push-fit connection 10](/web/image/product.template/274695/image_128/%5B116834%5D%20RIEGLER%20Throttle%20check%20valve%2C%20exhaust%20air%2C%20G%203-8%2C%20push-fit%20connection%2010?unique=f01b7dc)
|
Type number: 340.038-10-D |
19.41 € | |

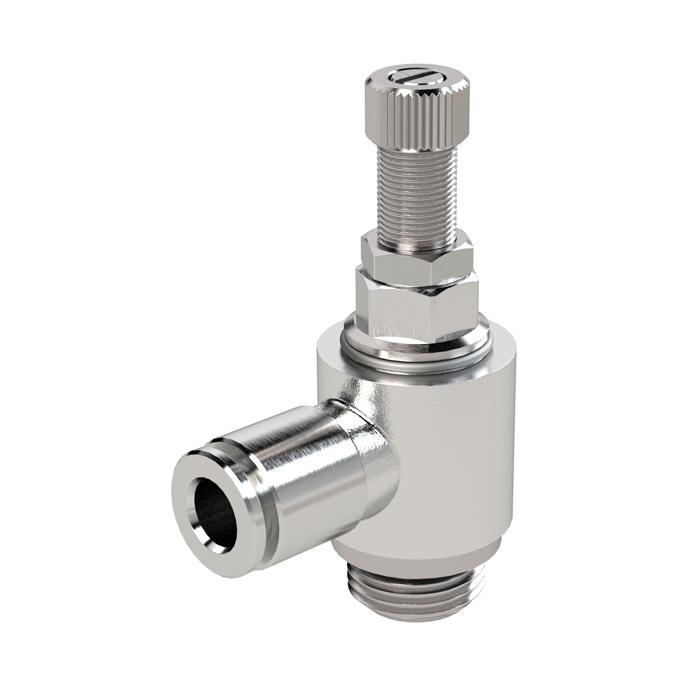

![[116833] RIEGLER Throttle check valve, exhaust air, G 3/8, push-fit connection 8](/web/image/product.template/274694/image_128/%5B116833%5D%20RIEGLER%20Throttle%20check%20valve%2C%20exhaust%20air%2C%20G%203-8%2C%20push-fit%20connection%208?unique=8f74c3e)
|
