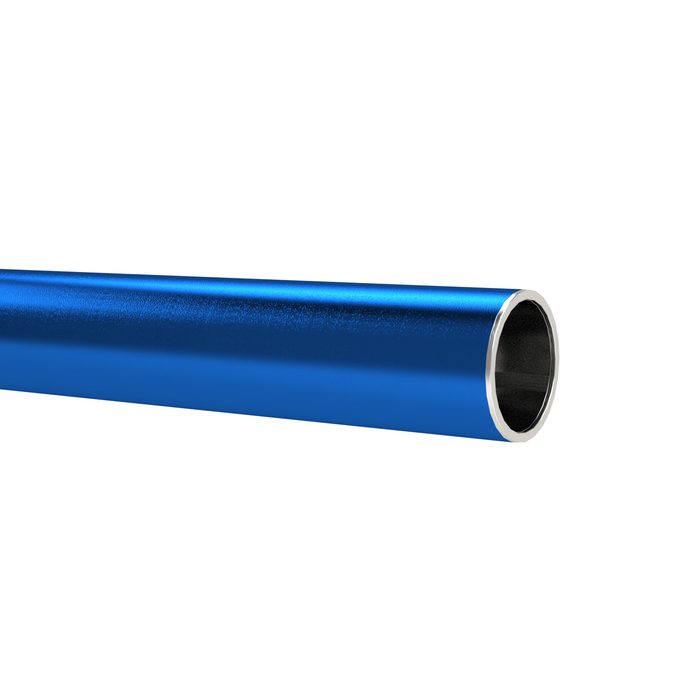

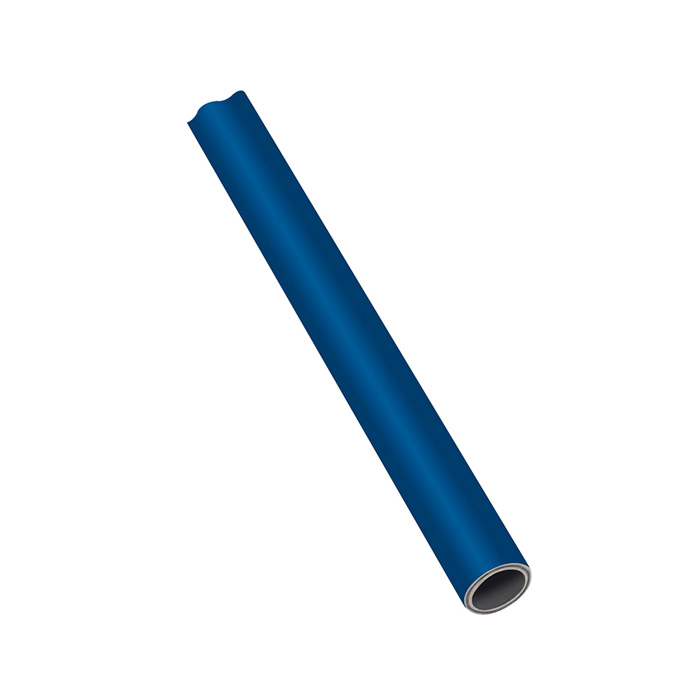

RIEGLER Aluminum tube, blue, tube ø 35x31, PU 5 pcs, length 3 m
Type number: ALR3531
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Aluminum tube made of surface-coated aluminum, for compressed air distribution, max. 20 bar - Type ALR3531
The RIEGLER aluminum pipe, blue, pipe ø 35x31, PU 5 pcs., length 3 m conducts compressed air and media flexibly or permanently installed. The housing is made of surface-coated aluminum. The operating pressure range is -0.95 bar to 20 bar. The operating temperature is between -20 °C and 65 °C. Flexible and pressure-resistant.
Field of application
Typical areas of application: Compressed air distribution and media lines.
| Working pressure min. | -0.95 bar |
| Working pressure max. | 20 bar |
| Material | surface-coated aluminum |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 65 °C |
| Pipe length | 3 m |
| Colour | blue |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| PU | 5 pcs |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| SCIP message number Supplier | no SCIP No. available |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| SCIP message number RIEGLER | no SCIP No. available |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | PLUS |
| Stand Material Compliance | 45047 |
| Tube outer Ø | 35 mm |
| Tube inside Ø | 31 mm |
