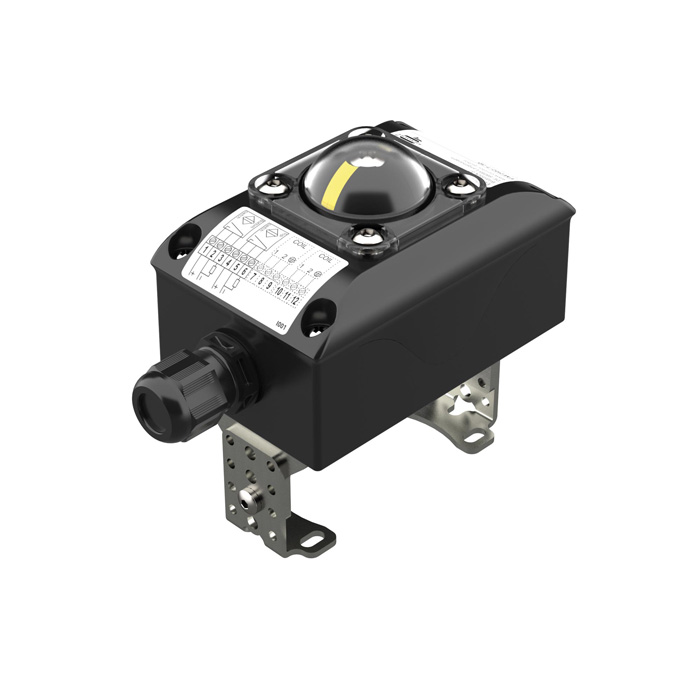

RIEGLER End position feedback aluminum, inductive sensor, 10-30V DC
Type number: ELRAIS
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER End position feedback aluminum for industrial systems - type ELRAIS
The RIEGLER end position feedback aluminum, inductive sensor, 10-30V DC opens or blocks the media flow with a quarter turn - full passage with minimal pressure loss. The housing is made of aluminum. The ambient temperature is between -25 °C and 80 °C. Protection class IP 66/67, in accordance with DIN EN 60529. Simple operation with minimal pressure loss.
Field of application
Typical areas of application: Compressed air, water, gas and industrial pipes.
| Housing | Aluminum |
| Protection class | IP 66/67, according to DIN EN 60529 |
| Ambient temperature min. | -25 °C |
| Ambient temperature max. | 80 °C |
| Cable gland | M20x1.5 |
| Rated switching capacity | 0-200mA |
| Switching function | PNP (NO) |
| Voltage range | 10-30 V DC |
| Execution | with inductive switch |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| SCIP message number Supplier | no SCIP No. available |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| SCIP message number RIEGLER | no SCIP No. available |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Stand Material Compliance | 44852 |
