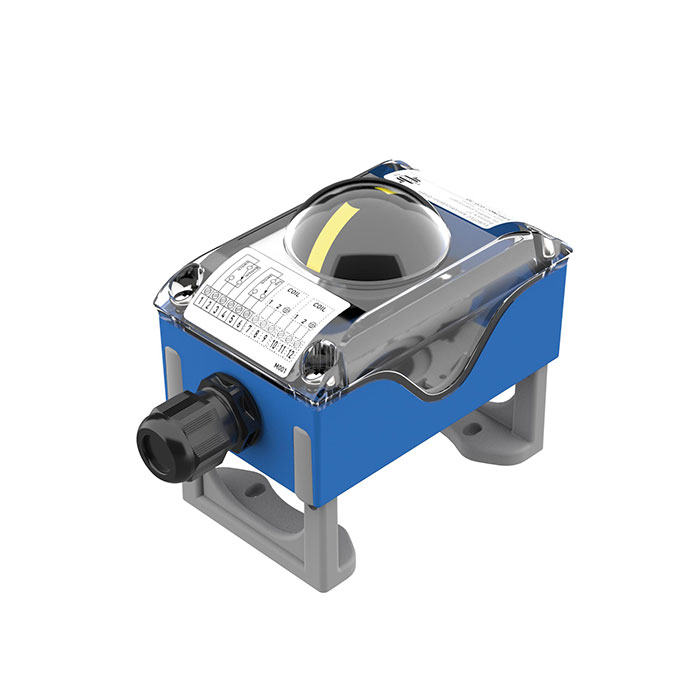

RIEGLER End position feedback PA6/PC, microswitch, 12-250V AC/DC
Type number: ELRPMS
EAN: 4047322719957
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
End position feedback PA6/PC, 3D indication, microswitch SPDT DX44 (NO/NC), AC: 250V, 10A, DC: 24V, 2.5A, ambient temp. -25 °C to 80 °C
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Share of SVHC substance in % for RoHS | 0.04 |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Execution | with microswitch |
| Exception | 6c |
| CAS No. SVHC 1 | 7439-92-1 |
| Housing | PA6/PC |
| Cable gland | M20x1.5 |
| Material identification | CW614N |
| Rated switching capacity | AC: 10A/250V, DC: 2.5A/24V |
| REACH Info | contains SVHC substance |
| REACH SVHC1 Substance Name | Lead |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS material information | RoHS compliant |
| Switching function | Changeover contact (NO/NC), silver-plated contacts |
| Protection class | IP 67, according to DIN EN 60529 |
| Voltage range | 12-250 V AC/DC |
| Ambient temperature max. | 80 °C |
| Ambient temperature min. | -25 °C |
