RIEGLER Manual sliding valve, G 1/4 IT, AF 17, PN max. 10 bar
Type number: 215.72*
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Manual slide valve for industrial systems, max. 10 bar, G 1/4 female thread - Type 215.72*
The RIEGLER manual slide valve, G 1/4 IG, SW 17, PN max. 10 bar regulates or shuts off the media flow in industrial pipelines. Designed for a maximum operating pressure of 10 bar. The operating temperature is between 0 °C and 70 °C. Connection thread G 1/4 female - suitable for common industrial standards. Reliable media control.
Field of application
Typical areas of application: Compressed air, gases and liquids.
| Max. operating pressure | 10 bar |
| Operating temperature min. | 0 °C |
| Operating temperature max. | 70 °C |
| Thread | G 1/4 FEMALE THREAD |
| SW | 17 mm |
| B | 24 mm |
| L | 51.5 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Exception | 6b, 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N, AL2011 |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[103762] RIEGLER Manual sliding valve, G 1/2 ET, AF 26, PN max. 10 bar](/web/image/product.template/171723/image_128/%5B103762%5D%20RIEGLER%20Manual%20sliding%20valve%2C%20G%201-2%20ET%2C%20AF%2026%2C%20PN%20max.%2010%20bar?unique=86c3606)
|
Type number: 3214.74 |
18.33 € | |
![[117407] RIEGLER Manual sliding valve, G 1/2 IT, AF 26, PN max. 10 bar](/web/image/product.template/202347/image_128/%5B117407%5D%20RIEGLER%20Manual%20sliding%20valve%2C%20G%201-2%20IT%2C%20AF%2026%2C%20PN%20max.%2010%20bar?unique=d384716)
|
Type number: 215.74* |
18.27 € | |

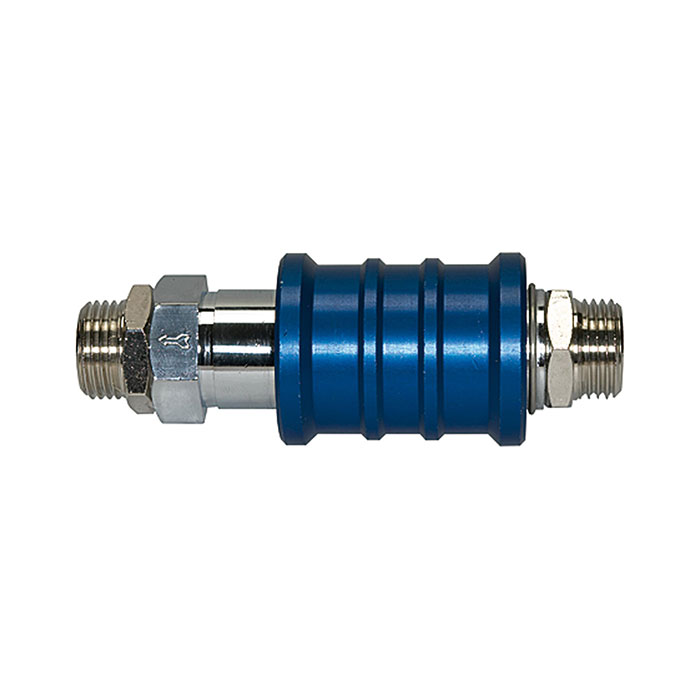

![[103760] RIEGLER Manual sliding valve, G 1/4 ET, AF 17, PN max. 10 bar](/web/image/product.template/171721/image_128/%5B103760%5D%20RIEGLER%20Manual%20sliding%20valve%2C%20G%201-4%20ET%2C%20AF%2017%2C%20PN%20max.%2010%20bar?unique=fd9c15c)
|
