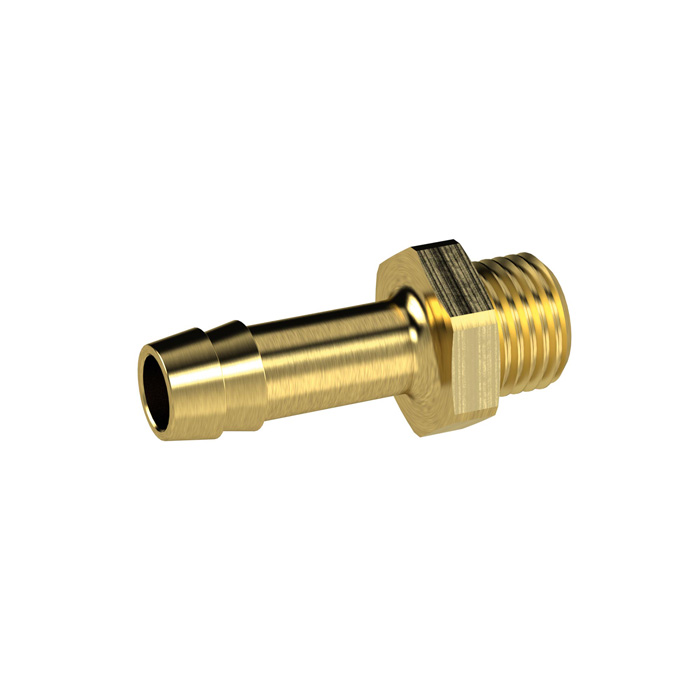

RIEGLER Screw-in hose nozzle, R3/8 a., for hose LW 13, SW 19, MS
Type number: MS239R3813
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Screw-in hose nozzle made of brass CW614N, for pneumatic installation, max. 25 bar - type MS239R3813
The RIEGLER screw-in hose nozzle, R3/8 a., f. hose LW 13, SW 19, MS permanently connects hoses with threaded connections - for reliable media supply. The housing is made of brass CW614N. Designed for a maximum operating pressure of 25 bar. R 3/8 connection thread - suitable for common industry standards. Secure hose fixation for pressure-resistant connections.
Field of application
Typical areas of application: Compressed air, water, technical gases and industrial media.
| Working pressure max. | 25 bar |
| Material | Brass CW614N |
| Operating temperature max. | 150 °C |
| Thread | R 3/8 |
| SW | 19 mm |
| for hose | LW 13 mm |
| L2 | 11 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| SCIP message number Supplier | no SCIP No. available |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| SCIP message number RIEGLER | no SCIP No. available |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW617N |
| Class name | PLUS |
| Stand Material Compliance | 45154 |
