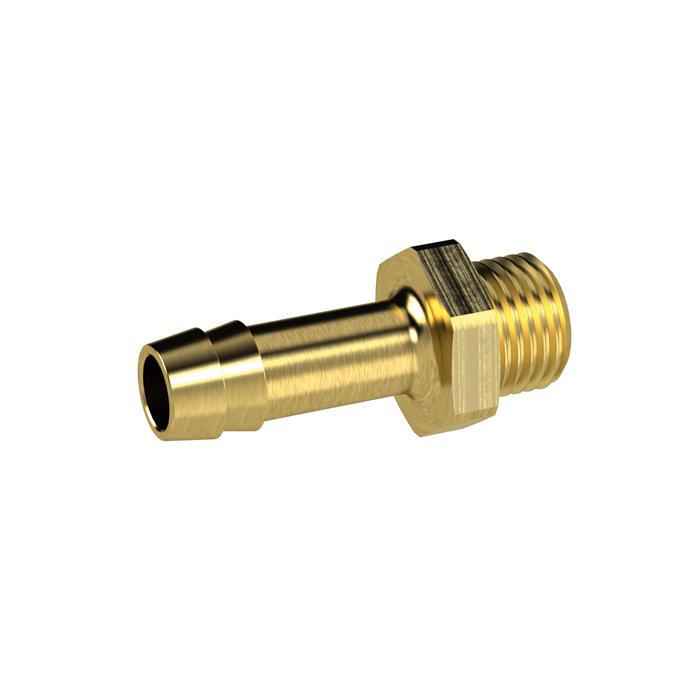

RIEGLER Screw-in hose nozzle, R 1 1/4 a., for hose LW 32, MS
Type number: MS239R11432
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Screw-in hose nozzle, R 1 1/4 a., for hose LW 32 mm, SW 44, MS, max. working pressure 25 bar, max. operating temp. 150 °C
| Working pressure max. | 25 bar |
| Material | Brass CW614N |
| Operating temperature max. | 150 °C |
| Thread | R 1 1/4 |
| SW | 44 mm |
| for hose | LW 32 mm |
| L2 | 20 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | 1.0% w/w and < 10.0% |
| SCIP message number RIEGLER | no SCIP No. available |
| Class name | PLUS |
| Stand Material Compliance | 45387 |
| SCIP message number Supplier | RIEGLER, production part |
