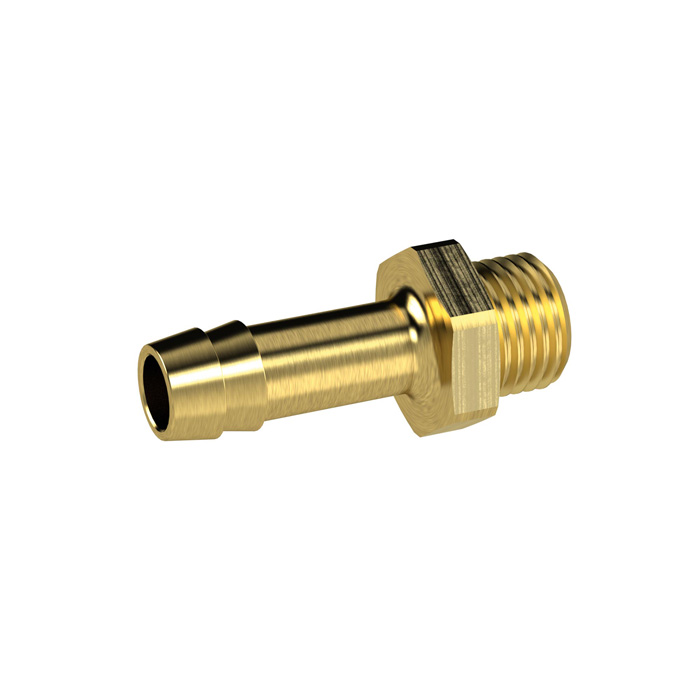

RIEGLER Screw-in hose nozzle, R 2 a., for hose LW 50, MS
Type number: MS239R250
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Screw-in hose nozzle made of brass CW614N, for pneumatic installation, max. 25 bar - type MS239R250
The RIEGLER screw-in hose nozzle, R 2 a., for hose LW 50, MS permanently connects hoses with threaded connections - for reliable media supply. The housing is made of brass CW614N. Designed for a maximum operating pressure of 25 bar. Connection thread R 2 - suitable for common industry standards. Secure hose fixing for pressure-resistant connections.
Field of application
Typical areas of application: Compressed air, water, technical gases and industrial media.
| Working pressure max. | 25 bar |
| Material | Brass CW614N |
| Operating temperature max. | 150 °C |
| Thread | R 2 |
| SW | 70 mm |
| for hose | LW 50 mm |
| L2 | 25 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | 1.0% w/w and < 10.0% |
| SCIP message number RIEGLER | no SCIP No. available |
| Class name | PLUS |
| Stand Material Compliance | 45387 |
| SCIP message number Supplier | RIEGLER, production part |
