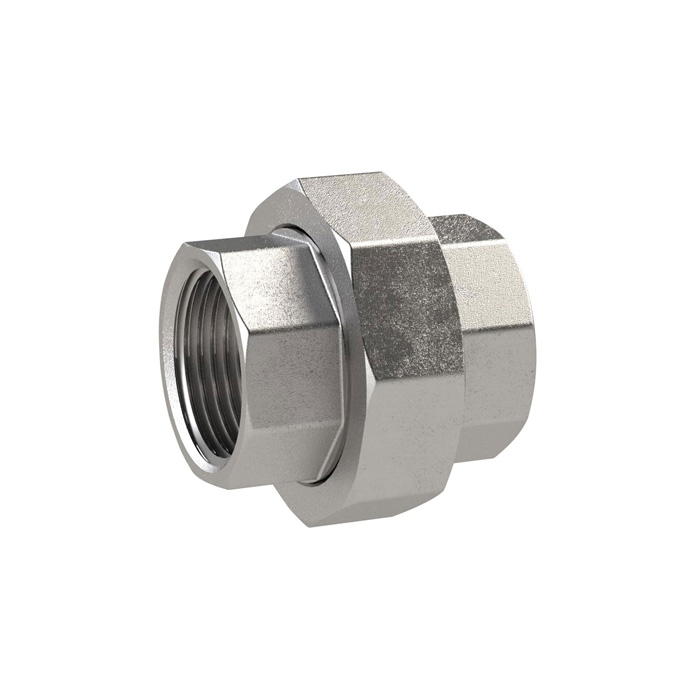

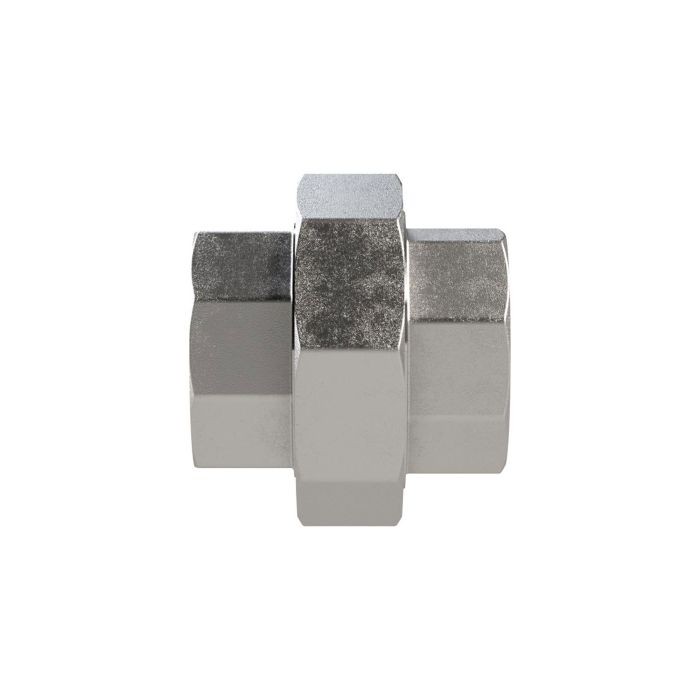

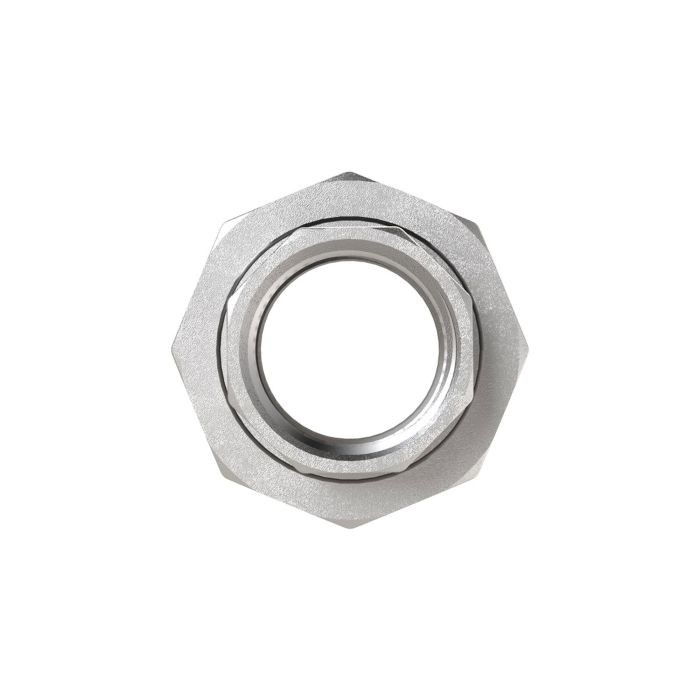

RIEGLER solu. Double threaded nipple, con. tight, Rp 2 female, SW 85, ES 1.4408
Type number: LDGNR2ES4408KDII
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER sol. Double threaded nipple for pipeline construction, max. 20 bar, Rp 2 - Type LDGNR2ES4408KDII
The RIEGLER sol. Double threaded nipple, con. tight, Rp 2 female, SW 85, ES 1.4408 connects two female threaded connections of the same or different sizes. Designed for a maximum operating pressure of 20 bar. Connection thread Rp 2 (DIN EN ISO 7-1) - suitable for common industry standards. Universal adapter for different thread sizes.
Field of application
Typical areas of application: Pipeline construction, compressed air distribution and sanitary installations.
| Working pressure max. | 20 bar |

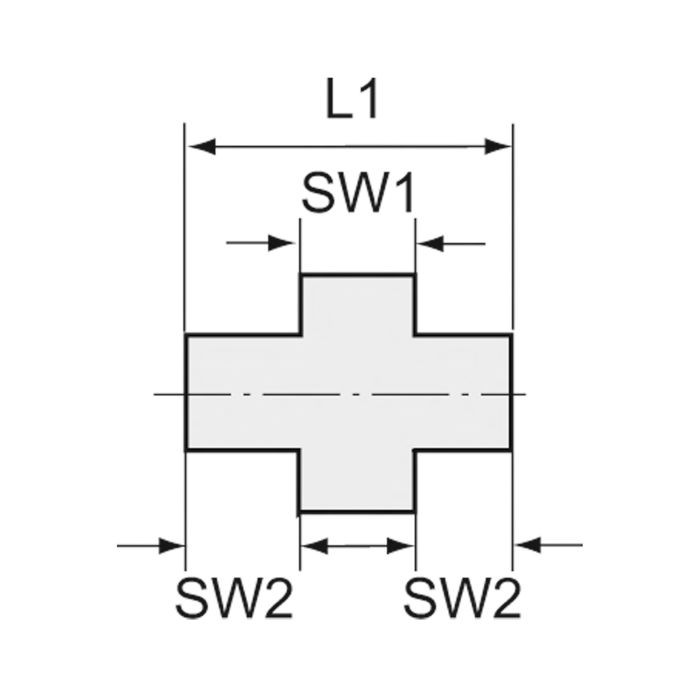

| SW 1 | 86 mm |
| SW 2 | 66 mm |
| Thread standard | DIN EN ISO 7-1 |
| Execution | conical sealing |
| L1 | 62.8 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| SCIP message number Supplier | no SCIP No. available |
| Share of SVHC SCIP | no SVHC substance |
| SCIP message number RIEGLER | no SCIP No. available |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | 14408 |
| Class name | STAINLESS STEEL |
| Stand Material Compliance | 45139 |
| Thread | Rp 2 |
