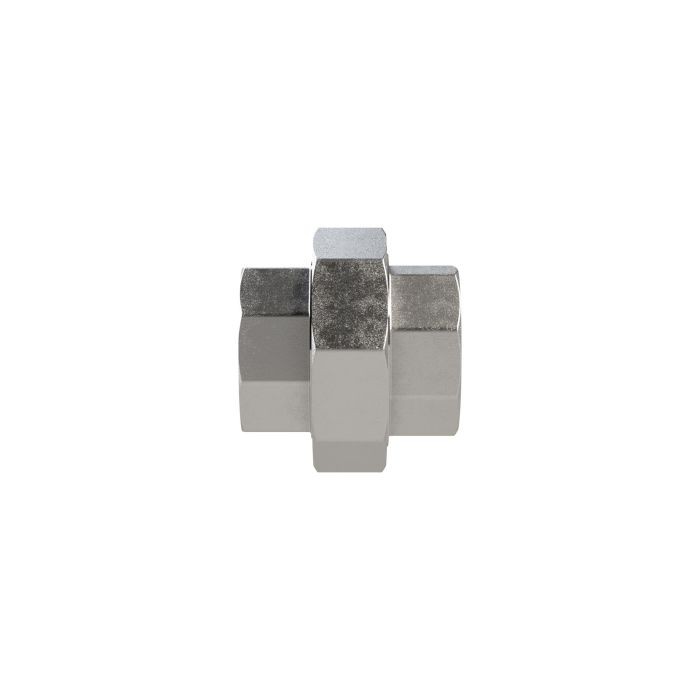

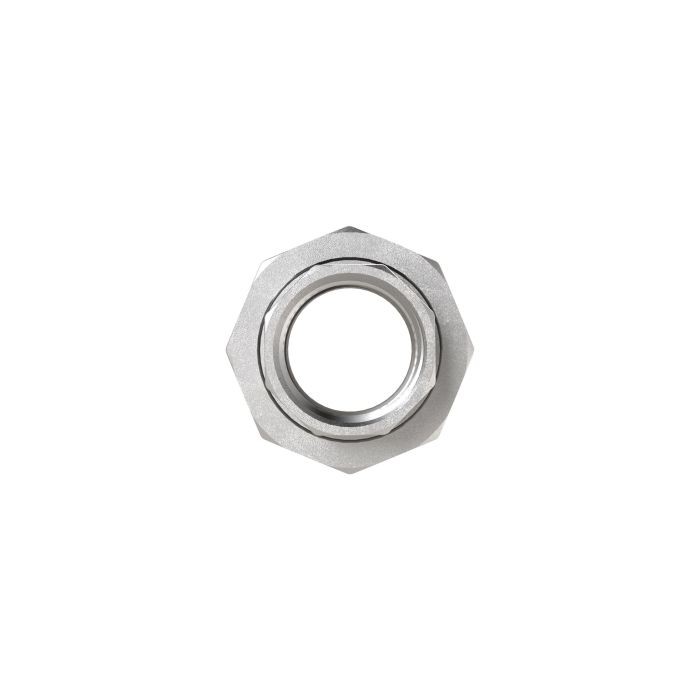

RIEGLER sol. Double threaded nipple, flat seal, Rp 2, female, SW 86, ES 1.4408
Type number: LDGNR2ES4408FDII
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER sol. Double threaded nipple for pipeline construction, max. 20 bar, Rp 2 - Type LDGNR2ES4408FDII

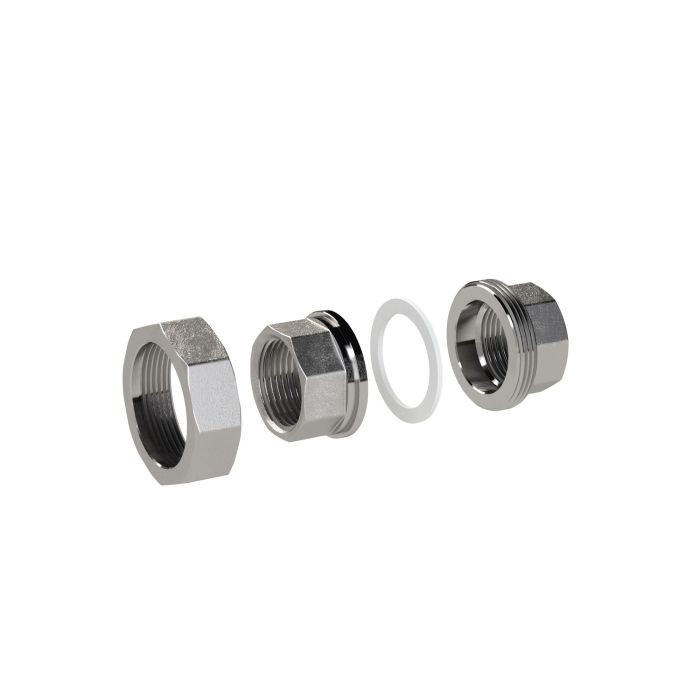

The RIEGLER sol. Double threaded nipple, flat seal, Rp 2, female thread, SW 86, ES 1.4408 connects two female threaded connections of the same or different sizes. with PTFE flat seal gaskets. Designed for a maximum operating pressure of 20 bar. Connection thread Rp 2 (DIN EN ISO 7-1) - suitable for common industry standards. Universal adapter for different thread sizes.
Field of application
Typical areas of application: Pipeline construction, compressed air distribution and sanitary installations.
| Sealing material | Flat gasket PTFE |
| Working pressure max. | 20 bar |
| Thread | Rp 2 |

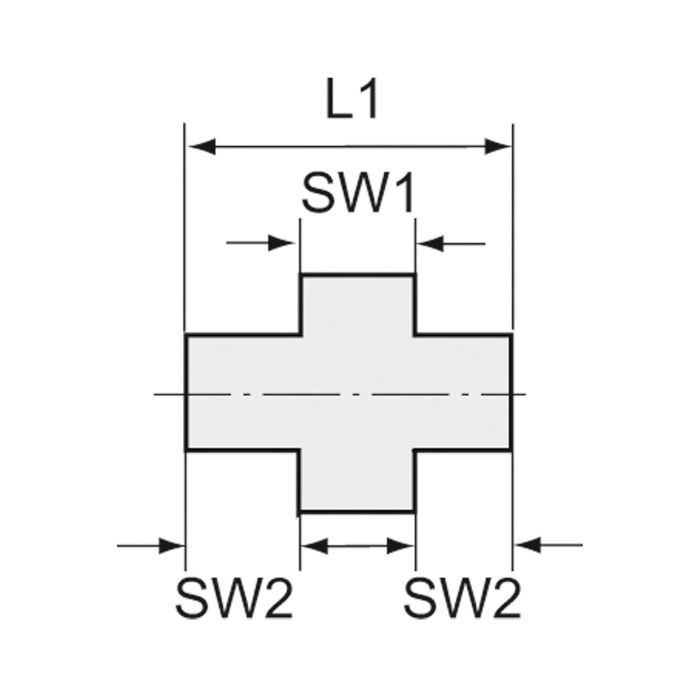

| SW 1 | 86 mm |
| SW 2 | 66 mm |
| Thread standard | DIN EN ISO 7-1 |
| L1 | 64 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| SCIP message number Supplier | no SCIP No. available |
| Share of SVHC SCIP | no SVHC substance |
| SCIP message number RIEGLER | no SCIP No. available |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | 14408 |
| Class name | STAINLESS STEEL |
| Stand Material Compliance | 45139 |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[118082] RIEGLER sol. Double threaded nipple, flat sealing, Rp 1 1/2, IG, SW 72, ES 1.4408](/web/image/product.template/274932/image_128/%5B118082%5D%20RIEGLER%20sol.%20Double%20threaded%20nipple%2C%20flat%20sealing%2C%20Rp%201%201-2%2C%20IG%2C%20SW%2072%2C%20ES%201.4408?unique=eb3eaa1)
|
Type number: LDGNR112ES4408FDII |
22.23 € | |
![[118077] RIEGLER sol. Double threaded nipple, flat sealing, Rp 1 1/4, IG, SW 65, ES 1.4408](/web/image/product.template/274931/image_128/%5B118077%5D%20RIEGLER%20sol.%20Double%20threaded%20nipple%2C%20flat%20sealing%2C%20Rp%201%201-4%2C%20IG%2C%20SW%2065%2C%20ES%201.4408?unique=8fc1a7f)
|
Type number: LDGNR114ES4408FDII |
16.72 € | |
![[118065] RIEGLER sol. Double threaded nipple, flat seal, Rp 1/2, internal thread, SW 38, ES 1.4408](/web/image/product.template/274928/image_128/%5B118065%5D%20RIEGLER%20sol.%20Double%20threaded%20nipple%2C%20flat%20seal%2C%20Rp%201-2%2C%20internal%20thread%2C%20SW%2038%2C%20ES%201.4408?unique=2f34188)
|
Type number: LDGNR12ES4408FDII |
5.46 € | |
![[118059] RIEGLER sol. Double threaded nipple, flat seal, Rp 1/4, internal thread, SW 30, ES 1.4408](/web/image/product.template/274926/image_128/%5B118059%5D%20RIEGLER%20sol.%20Double%20threaded%20nipple%2C%20flat%20seal%2C%20Rp%201-4%2C%20internal%20thread%2C%20SW%2030%2C%20ES%201.4408?unique=344a2c6)
|
Type number: LDGNR14ES4408FDII |
4.44 € | |

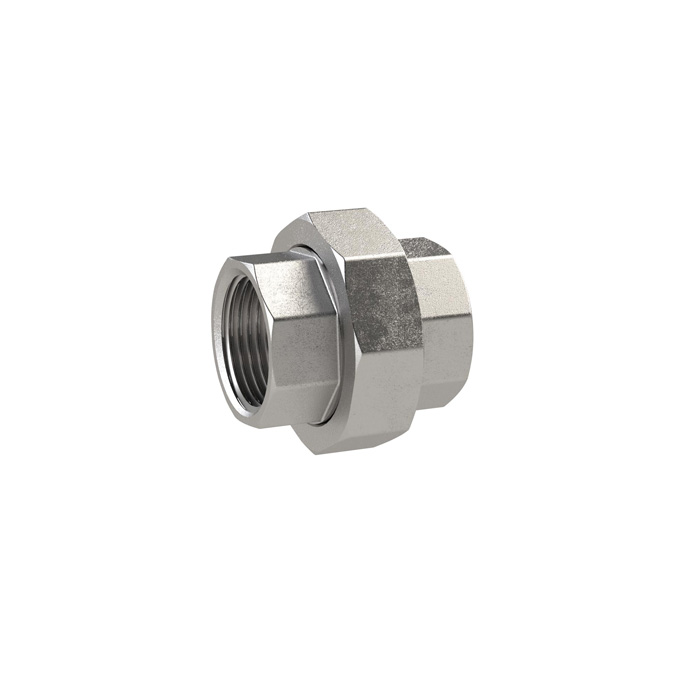

![[118068] RIEGLER sol. Double threaded nipple, flat seal, Rp 1, internal thread, SW 54, ES 1.4408](/web/image/product.template/274930/image_128/%5B118068%5D%20RIEGLER%20sol.%20Double%20threaded%20nipple%2C%20flat%20seal%2C%20Rp%201%2C%20internal%20thread%2C%20SW%2054%2C%20ES%201.4408?unique=6e12096)
|
