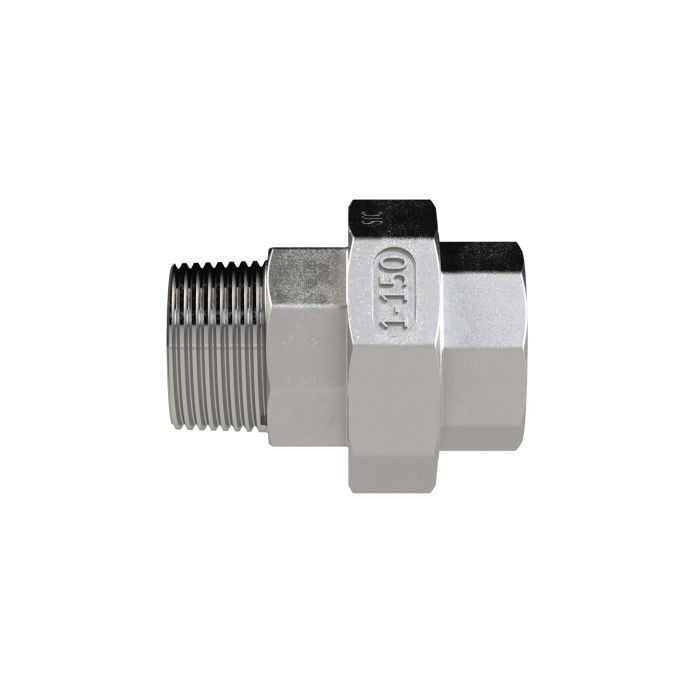

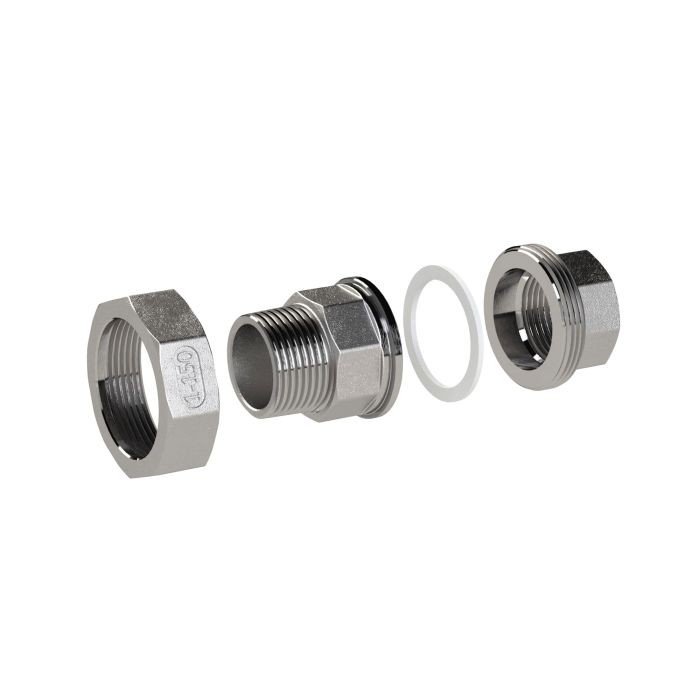

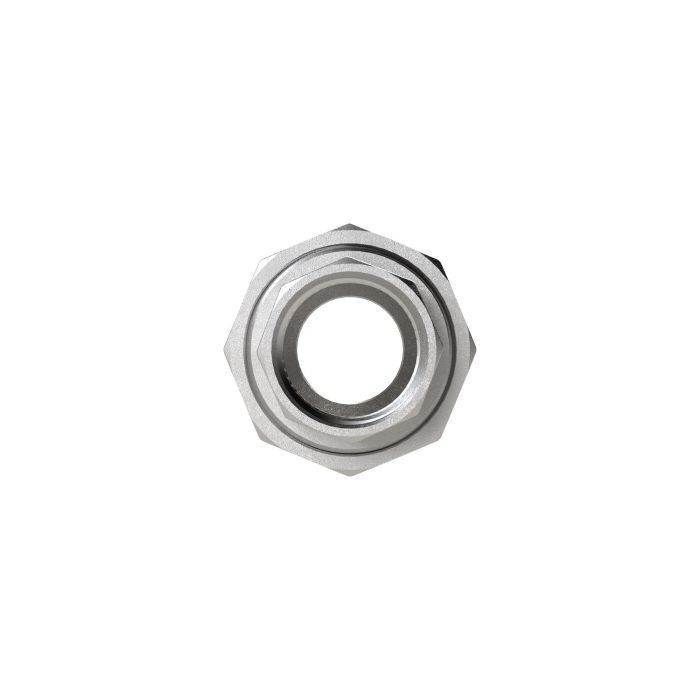

RIEGLER sol. Double threaded nipple, flat seal, Rp/R 2, I/A, SW 85, ES 1.4408
Type number: LDGNR2ES4408FDIA
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Detachable double threaded nipple, flat sealing, Rp/R 2, IG/AG, SW 85, working pressure max. 20 bar, ES 1.4408
| Sealing material | Flat gasket PTFE |
| Working pressure max. | 20 bar |

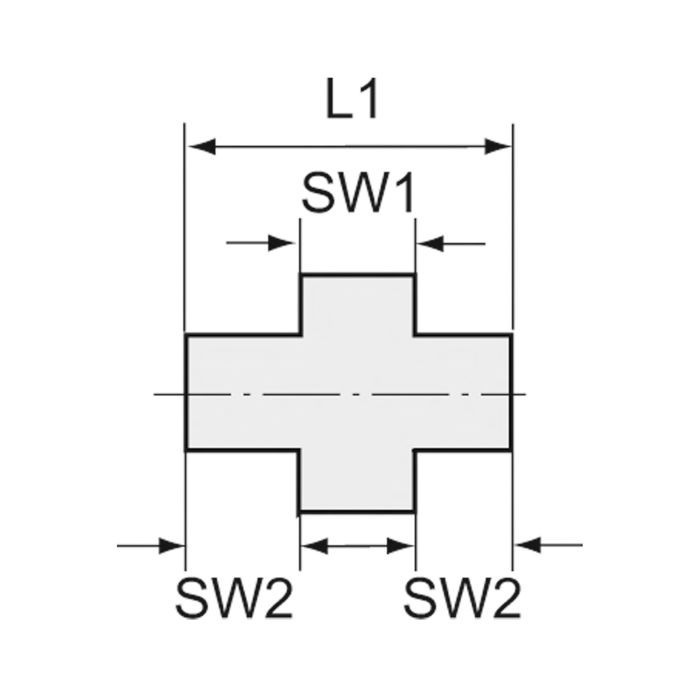

| SW 1 | 86 mm |
| SW 2 | 66 mm |
| Thread standard | DIN EN ISO 7-1 |
| L1 | 90.5 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| SCIP message number Supplier | no SCIP No. available |
| Share of SVHC SCIP | no SVHC substance |
| SCIP message number RIEGLER | no SCIP No. available |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | 14408 |
| Class name | STAINLESS STEEL |
| Stand Material Compliance | 45139 |
| Thread | Rp/R 2 |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[118226] RIEGLER sol. Double threaded nipple, flat sealing, Rp/R 1 1/2, I/A, SW72, ES 1.4408](/web/image/product.template/274948/image_128/%5B118226%5D%20RIEGLER%20sol.%20Double%20threaded%20nipple%2C%20flat%20sealing%2C%20Rp-R%201%201-2%2C%20I-A%2C%20SW72%2C%20ES%201.4408?unique=e80fd64)
|
Type number: LDGNR112ES4408FDIA |
25.37 € | |

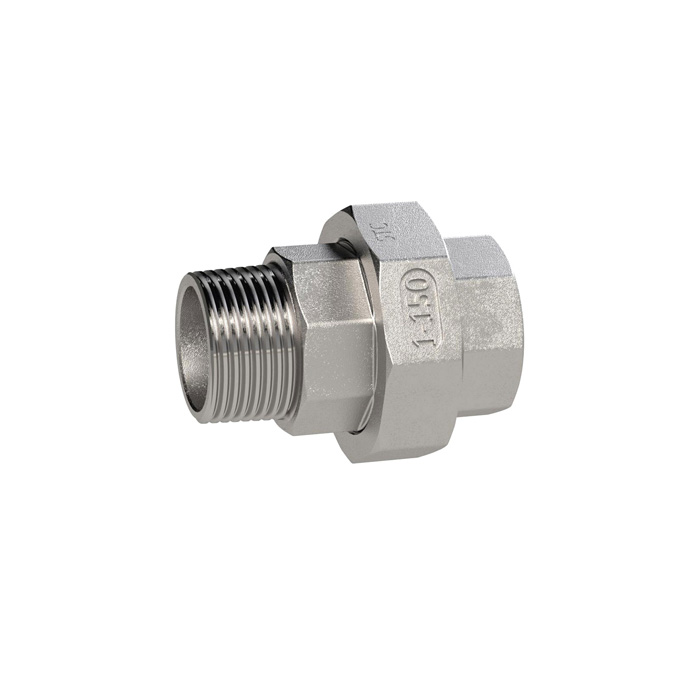

![[118225] RIEGLER sol. Double threaded nipple, flat sealing, Rp/R1 1/4, I/A, SW65, ES 1.4408](/web/image/product.template/274947/image_128/%5B118225%5D%20RIEGLER%20sol.%20Double%20threaded%20nipple%2C%20flat%20sealing%2C%20Rp-R1%201-4%2C%20I-A%2C%20SW65%2C%20ES%201.4408?unique=297a360)
|
Type number: LDGNR114ES4408FDIA |
18.27 € | |
![[118120] RIEGLER sol. Double threaded nipple, flat seal, Rp/R1/2, I/A, SW38, ES 1.4408](/web/image/product.template/274944/image_128/%5B118120%5D%20RIEGLER%20sol.%20Double%20threaded%20nipple%2C%20flat%20seal%2C%20Rp-R1-2%2C%20I-A%2C%20SW38%2C%20ES%201.4408?unique=7625ea1)
|
Type number: LDGNR12ES4408FDIA |
6.30 € | |
![[118108] RIEGLER sol. Double threaded nipple, flat seal, Rp/R1/4, I/A, SW30, ES 1.4408](/web/image/product.template/274942/image_128/%5B118108%5D%20RIEGLER%20sol.%20Double%20threaded%20nipple%2C%20flat%20seal%2C%20Rp-R1-4%2C%20I-A%2C%20SW30%2C%20ES%201.4408?unique=3c78293)
|
Type number: LDGNR14ES4408FDIA |
5.39 € | |
![[118224] RIEGLER sol. Double threaded nipple, flat seal, Rp/R 1, I/A, SW 54, ES 1.4408](/web/image/product.template/274946/image_128/%5B118224%5D%20RIEGLER%20sol.%20Double%20threaded%20nipple%2C%20flat%20seal%2C%20Rp-R%201%2C%20I-A%2C%20SW%2054%2C%20ES%201.4408?unique=7df5513)
|
Type number: LDGNR1ES4408FDIA |
13.96 € | |
![[118171] RIEGLER sol. Double threaded nipple, flat seal, Rp/R3/4, I/A, SW46, ES 1.4408](/web/image/product.template/274945/image_128/%5B118171%5D%20RIEGLER%20sol.%20Double%20threaded%20nipple%2C%20flat%20seal%2C%20Rp-R3-4%2C%20I-A%2C%20SW46%2C%20ES%201.4408?unique=fb96ea3)
|
Type number: LDGNR34ES4408FDIA |
8.25 € | |
![[118118] RIEGLER sol. Double threaded nipple, flat seal, Rp/R3/8, I/A, SW34, ES 1.4408](/web/image/product.template/274943/image_128/%5B118118%5D%20RIEGLER%20sol.%20Double%20threaded%20nipple%2C%20flat%20seal%2C%20Rp-R3-8%2C%20I-A%2C%20SW34%2C%20ES%201.4408?unique=0577c82)
|
Type number: LDGNR38ES4408FDIA |
5.99 € | |
