RIEGLER Industrial hose for salt and hot water, EPDM, ø 20x13, 40 m
Type number: HWS20X13
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Industrial hose for salt and hot water - type HWS20X13
The RIEGLER industrial hose for salt and hot water, EPDM, ø 20x13, 40 m conducts compressed air flexibly and reliably from the compressor to the consumer. The temperature range extends between -40 °C and 100 °C. Hose Ø 13 mm (inside) / 20 mm (outside). Flexible, pressure-resistant and suitable for various media.
Field of application
Typical areas of application: Compressed air distribution in workshops and production.
| Temperature range min. | -40 °C |
| Temperature range max. | 100 °C |
| Outer ceiling | EPDM, black |
| Operating pressure | max. 20 bar (water) / 15 bar (compressed air) |
| Colour | black |
| Outer hose Ø | 20 mm |
| Hose Ø inside | 13 mm |
| Roll length | 40 m |
| Bending radius min. | 80 mm |
| Class name | FLEX |
| Soul | EPDM, black |
| Inlays | Fabric inserts |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

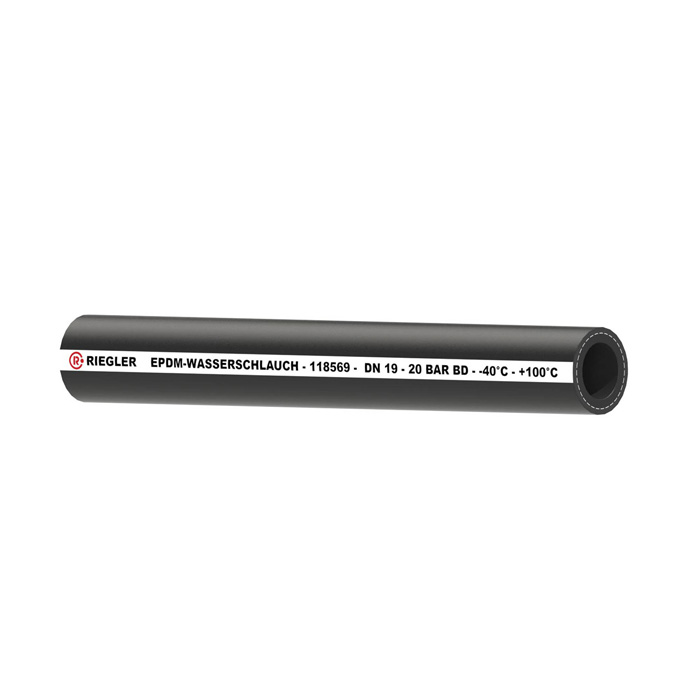

![[118569] RIEGLER Industrial hose for salt and hot water, EPDM, ø 27x19, 40 m](/web/image/product.template/275026/image_128/%5B118569%5D%20RIEGLER%20Industrial%20hose%20for%20salt%20and%20hot%20water%2C%20EPDM%2C%20%C3%B8%2027x19%2C%2040%20m?unique=a791f49)
|
Type number: HWS27X19 |
390.95 € | |

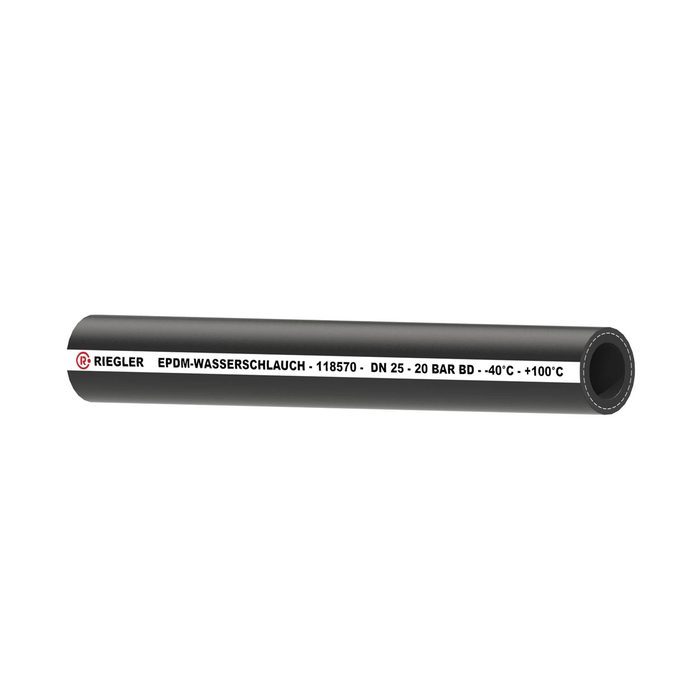

![[118570] RIEGLER Industrial hose for salt and hot water, EPDM, ø 34x25, 40 m](/web/image/product.template/275027/image_128/%5B118570%5D%20RIEGLER%20Industrial%20hose%20for%20salt%20and%20hot%20water%2C%20EPDM%2C%20%C3%B8%2034x25%2C%2040%20m?unique=a57a9cd)
|
