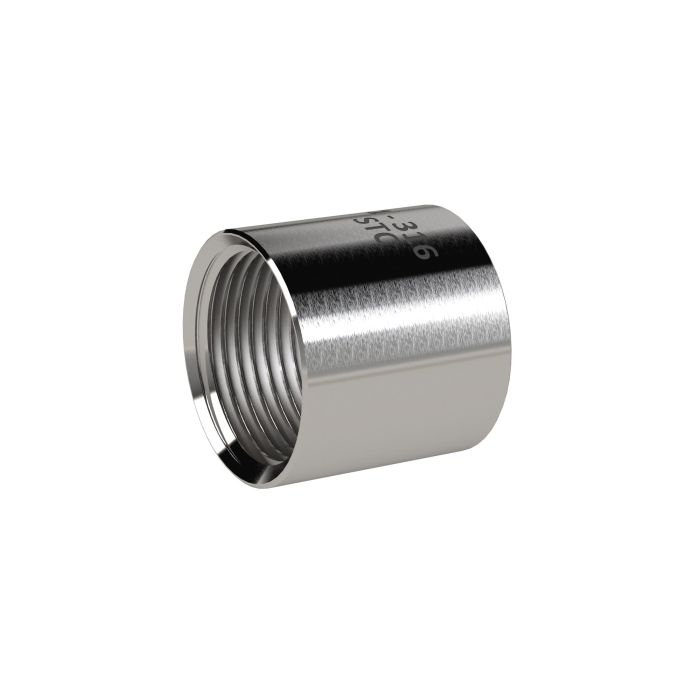

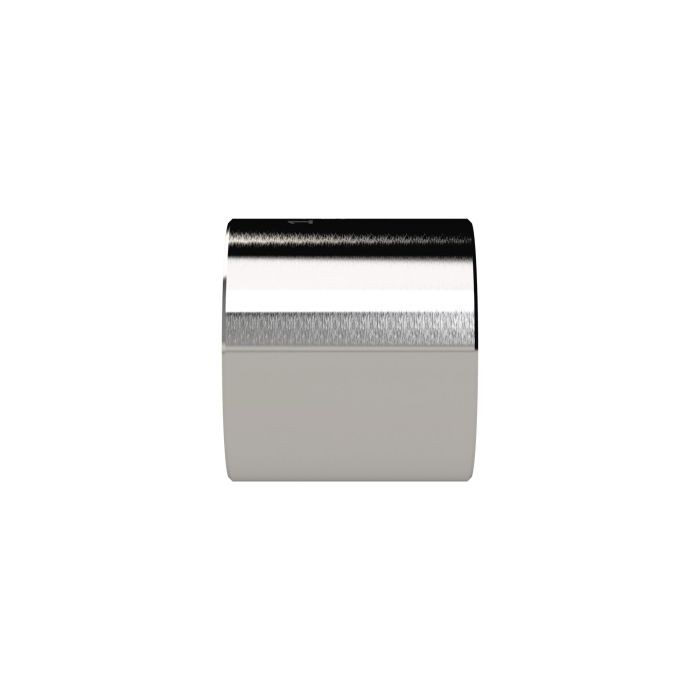

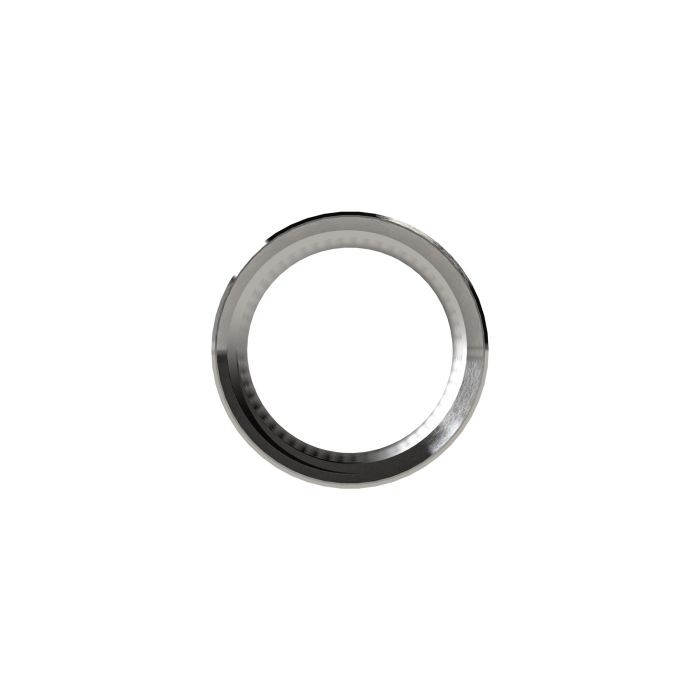

RIEGLER Socket, round, G 1/2, stainless steel 1.4408
Type number: MUG12ES4408L
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Socket for pipeline construction, max. 20 bar, G 1/2 - Type MUG12ES4408L
The RIEGLER socket, round, G 1/2, stainless steel 1.4408 connects two pipes or fittings with thread - for pressure-tight inline connections. Designed for a maximum operating pressure of 20 bar. Connection thread G 1/2 (DIN EN ISO 228-1) - suitable for common industry standards. Simple inline connection.
Field of application
Typical areas of application: Pipeline construction.
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Working pressure max. | 20 bar |
| Execution | round |
| Exception | no exception |
| CAS No. SVHC 1 | none CAS No. |
| D1 | 24.8 mm |
| Thread | G 1/2 |
| Thread standard | DIN EN ISO 228-1 |
| Class name | STAINLESS STEEL |
| L1 | 27 mm |
| Material identification | 14408 |
| REACH Info | no SVHC substance contained |
| REACH SVHC1 Substance Name | no |
| RoHS Article of the Directive | no entry |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS material information | RoHS compliant |
