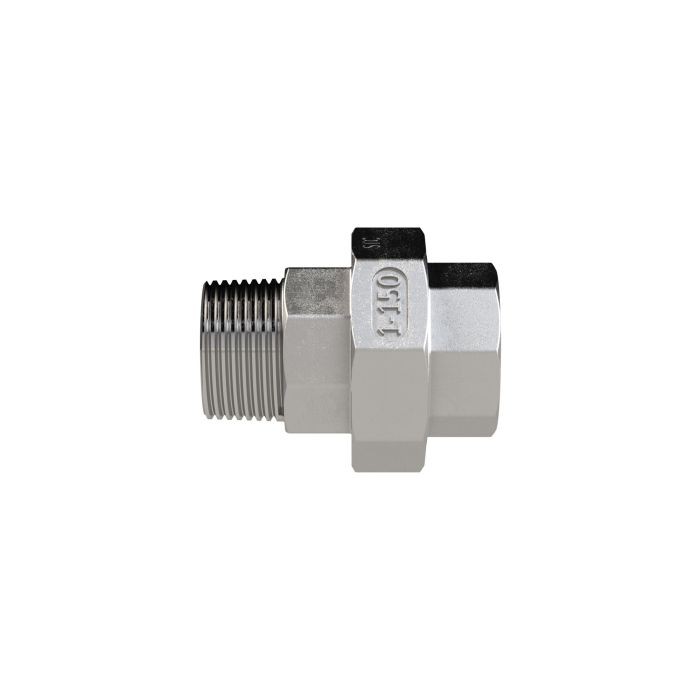

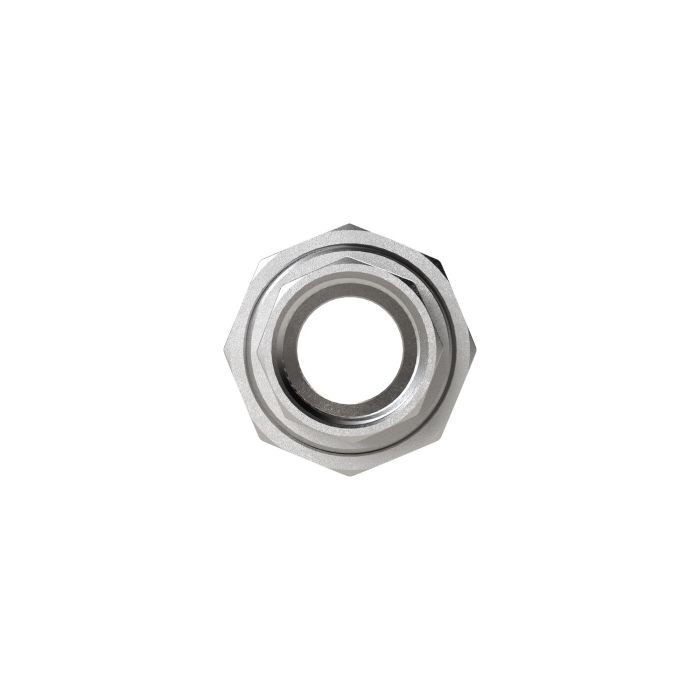

RIEGLER sol. Double threaded nipple, flat seal, G 1 1/4, I/A, SW65, ES 1.4408
Type number: LDGNG114ES4408FDIA
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER sol. Double threaded nipple for pipeline construction, max. 20 bar, G 1 1/4 - Type LDGNG114ES4408FDIA

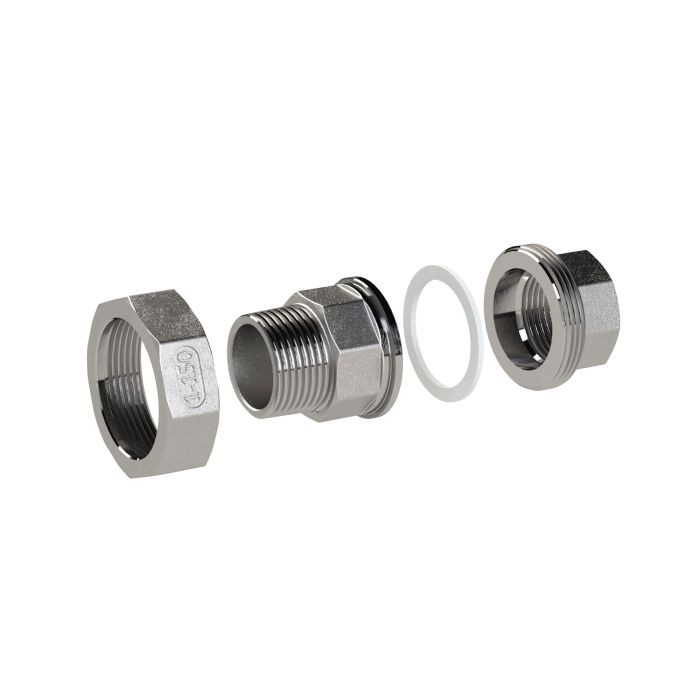

The RIEGLER sol. Double threaded nipple, flat sealing, G 1 1/4, I/A, SW65, ES 1.4408 connects two female threaded connections of the same or different sizes. with PTFE flat gasket seals. Designed for a maximum operating pressure of 20 bar. Connection thread G 1 1/4 (DIN EN ISO 228-1) - suitable for common industry standards. Universal adapter for different thread sizes.
Field of application
Typical areas of application: Pipeline construction, compressed air distribution and sanitary installations.
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Working pressure max. | 20 bar |
| Exception | no exception |
| CAS No. SVHC 1 | none CAS No. |
| Sealing material | Flat gasket PTFE |
| Thread | G 1 1/4 |
| Thread standard | DIN EN ISO 228-1 |
| Class name | STAINLESS STEEL |

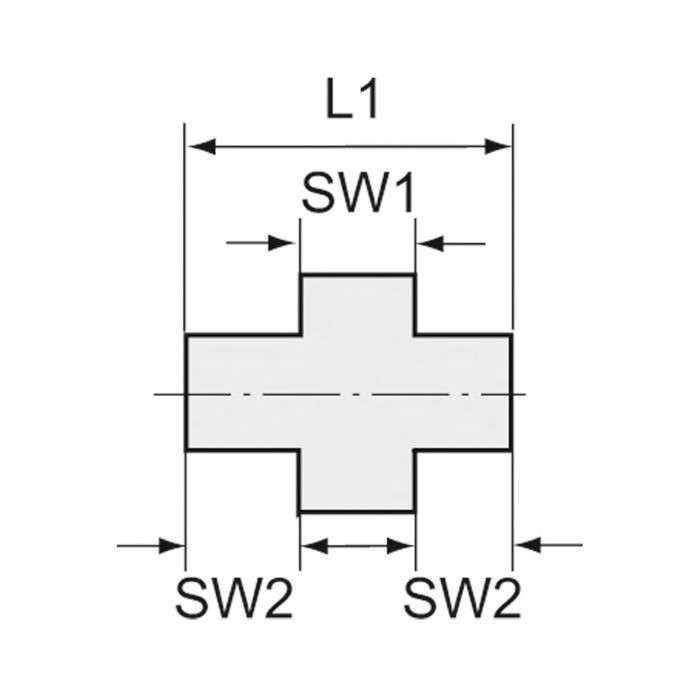

| L1 | 71 mm |
| Material identification | 14408 |
| REACH Info | no SVHC substance contained |
| REACH SVHC1 Substance Name | no |
| RoHS Article of the Directive | no entry |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS material information | RoHS compliant |
| SW 1 | 65 mm |
| SW 2 | 47 mm |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[118868] RIEGLER sol. Double threaded nipple, flat seal, G 1/2, I/A, SW 38, ES 1.4408](/web/image/product.template/267728/image_128/%5B118868%5D%20RIEGLER%20sol.%20Double%20threaded%20nipple%2C%20flat%20seal%2C%20G%201-2%2C%20I-A%2C%20SW%2038%2C%20ES%201.4408?unique=7be5185)
|
Type number: LDGNG12ES4408FDIA |
6.22 € | |
![[118863] RIEGLER sol. Double threaded nipple, flat seal, G 1/4, I/A, SW 30, ES 1.4408](/web/image/product.template/268111/image_128/%5B118863%5D%20RIEGLER%20sol.%20Double%20threaded%20nipple%2C%20flat%20seal%2C%20G%201-4%2C%20I-A%2C%20SW%2030%2C%20ES%201.4408?unique=f2995a4)
|
Type number: LDGNG14ES4408FDIA |
5.32 € | |
![[118870] RIEGLER sol. Double threaded nipple, flat seal, G 1, I/A, SW 54, ES 1.4408](/web/image/product.template/267912/image_128/%5B118870%5D%20RIEGLER%20sol.%20Double%20threaded%20nipple%2C%20flat%20seal%2C%20G%201%2C%20I-A%2C%20SW%2054%2C%20ES%201.4408?unique=ea52b38)
|
Type number: LDGNG1ES4408FDIA |
13.77 € | |
![[118873] RIEGLER sol. Double threaded nipple, flat seal, G 2, I/A, SW 85, ES 1.4408](/web/image/product.template/280948/image_128/%5B118873%5D%20RIEGLER%20sol.%20Double%20threaded%20nipple%2C%20flat%20seal%2C%20G%202%2C%20I-A%2C%20SW%2085%2C%20ES%201.4408?unique=0638791)
|
Type number: LDGNG2ES4408FDIA |
35.12 € | |
![[118869] RIEGLER sol. Double threaded nipple, flat seal, G 3/4, I/A, SW 46, ES 1.4408](/web/image/product.template/267785/image_128/%5B118869%5D%20RIEGLER%20sol.%20Double%20threaded%20nipple%2C%20flat%20seal%2C%20G%203-4%2C%20I-A%2C%20SW%2046%2C%20ES%201.4408?unique=4f29c28)
|
Type number: LDGNG34ES4408FDIA |
8.14 € | |

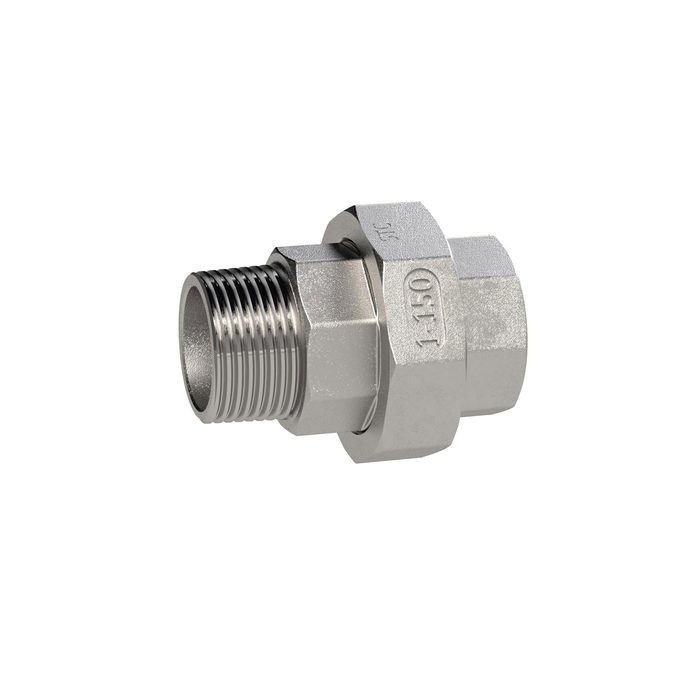

![[118867] RIEGLER sol. Double threaded nipple, flat seal, G 3/8, I/A, SW 34, ES 1.4408](/web/image/product.template/280946/image_128/%5B118867%5D%20RIEGLER%20sol.%20Double%20threaded%20nipple%2C%20flat%20seal%2C%20G%203-8%2C%20I-A%2C%20SW%2034%2C%20ES%201.4408?unique=5f04226)
|
