RIEGLER Double threaded nipple, G 1, AG, SW 36, ES 1.4408
Type number: DGNG1ES4408
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Double threaded nipple, G 1, male, SW 36, max. working pressure 20 bar, ES 1.4408
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Working pressure max. | 20 bar |
| Execution | Hexagon |
| Exception | no exception |
| Operating temperature max. | 150 °C |
| CAS No. SVHC 1 | none CAS No. |
| Thread | G 1 |
| Thread standard | DIN EN ISO 228-1 |
| Class name | STAINLESS STEEL |
| L1 | 41.5 mm |
| Material | Stainless steel 1.4408 |
| Material identification | 14408 |
| REACH Info | no SVHC substance contained |
| REACH SVHC1 Substance Name | no |
| RoHS Article of the Directive | no entry |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS material information | RoHS compliant |
| SW | 36 mm |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[118881] RIEGLER Double threaded nipple, G 1 1/2, AG, SW 50, ES 1.4408](/web/image/product.template/268083/image_128/%5B118881%5D%20RIEGLER%20Double%20threaded%20nipple%2C%20G%201%201-2%2C%20AG%2C%20SW%2050%2C%20ES%201.4408?unique=9849373)
|
Type number: DGNG112ES4408 |
3.86 € | |
![[118880] RIEGLER Double threaded nipple, G 1 1/4, AG, SW 44, ES 1.4408](/web/image/product.template/268022/image_128/%5B118880%5D%20RIEGLER%20Double%20threaded%20nipple%2C%20G%201%201-4%2C%20AG%2C%20SW%2044%2C%20ES%201.4408?unique=889db0f)
|
Type number: DGNG114ES4408 |
2.71 € | |
![[118877] RIEGLER Double threaded nipple, G 1/2, AG, SW 22, ES 1.4408](/web/image/product.template/267687/image_128/%5B118877%5D%20RIEGLER%20Double%20threaded%20nipple%2C%20G%201-2%2C%20AG%2C%20SW%2022%2C%20ES%201.4408?unique=81988d4)
|
Type number: DGNG12ES4408 |
1.04 € | |

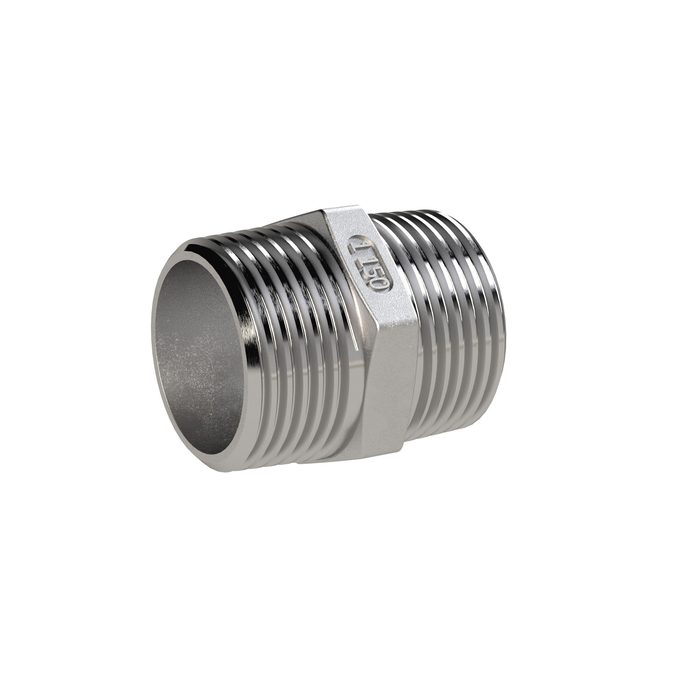

![[118875] RIEGLER Double threaded nipple, G 1/4, AG, SW 14, ES 1.4408](/web/image/product.template/267686/image_128/%5B118875%5D%20RIEGLER%20Double%20threaded%20nipple%2C%20G%201-4%2C%20AG%2C%20SW%2014%2C%20ES%201.4408?unique=81937c2)
|
Type number: DGNG14ES4408 |
1.04 € | |
![[118874] RIEGLER Double threaded nipple, G 1/8, AG, SW 12, ES 1.4408](/web/image/product.template/267835/image_128/%5B118874%5D%20RIEGLER%20Double%20threaded%20nipple%2C%20G%201-8%2C%20AG%2C%20SW%2012%2C%20ES%201.4408?unique=f21e64c)
|
Type number: DGNG18ES4408 |
1.13 € | |
![[118882] RIEGLER Double threaded nipple, G 2, AG, SW 62, ES 1.4408](/web/image/product.template/267696/image_128/%5B118882%5D%20RIEGLER%20Double%20threaded%20nipple%2C%20G%202%2C%20AG%2C%20SW%2062%2C%20ES%201.4408?unique=82efc16)
|
Type number: DGNG2ES4408 |
5.87 € | |
![[118878] RIEGLER Double threaded nipple, G 3/4, AG, SW 28, ES 1.4408](/web/image/product.template/267841/image_128/%5B118878%5D%20RIEGLER%20Double%20threaded%20nipple%2C%20G%203-4%2C%20AG%2C%20SW%2028%2C%20ES%201.4408?unique=0ae5c08)
|
Type number: DGNG34ES4408 |
1.15 € | |
![[118876] RIEGLER Double threaded nipple, G 3/8, AG, SW 18, ES 1.4408](/web/image/product.template/267836/image_128/%5B118876%5D%20RIEGLER%20Double%20threaded%20nipple%2C%20G%203-8%2C%20AG%2C%20SW%2018%2C%20ES%201.4408?unique=542e350)
|
Type number: DGNG38ES4408 |
1.13 € | |
